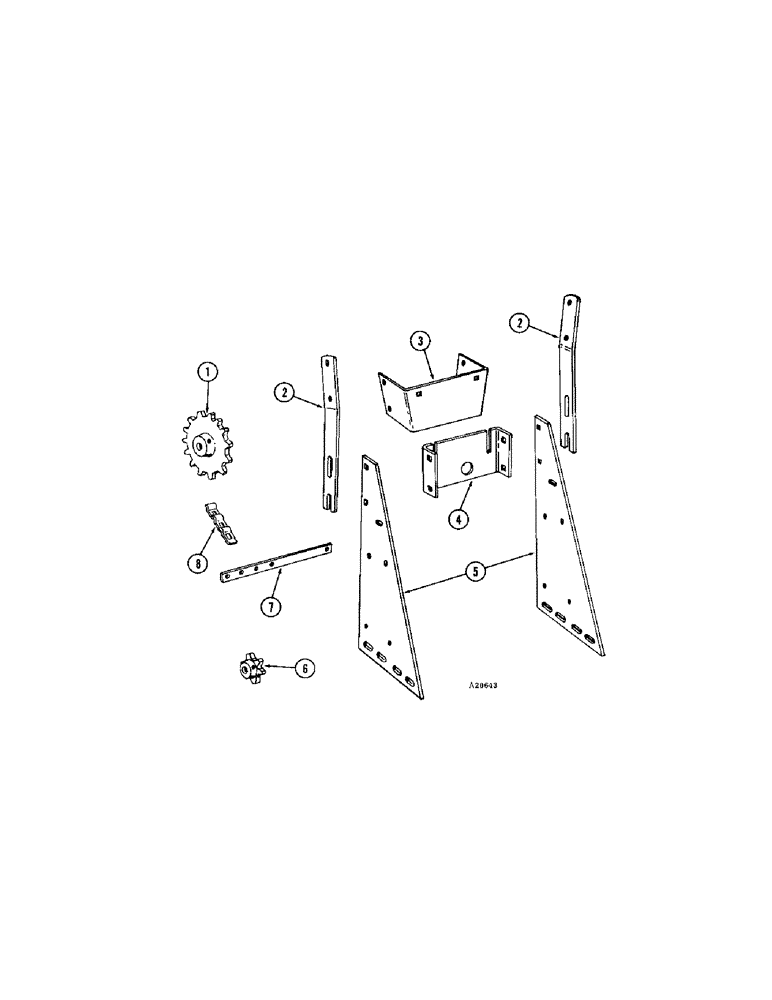

Запчасти Case IH K160 (32[1]) - MOUNTING BRACKETS, COMBINATION & LOW PROFILE PER ROW

1

T1873

SPROCKET - 14 tooth (YR. - 66-)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

2

T34714

ARM - support (Combination) (YR. - 66-)

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

195-104

WASHER,3/8"

- 1" x 7/16" x 14 ga., Z.P.

4шт.

3

T34713

BRACKET - support (Low profile) (YR. - 66-)

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

6шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

195-104

WASHER,3/8"

- 1" x 7/16" x 14 ga., Z.P.

4шт.

4

T34711

BRACKET - hopper (YR. - 66-)

1шт.

5

T34712

SUPPORT - hopper (YR. - 66-)

2шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

4шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

195-104

WASHER,3/8"

- 1" x 7/16" x 14 ga., Z.P.

4шт.

11-820

BOLT,Short NK, 1/2"-13 x 1 1/4", G2

- 1/2" x 1-1/4" N.C. cge

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

92-8

LOCK WASHER,1/2"

2шт.

195-106

WASHER,1/2"

- 1-3/8" x 9/16" x 12 ga., Z.P.

2шт.

6

T1872

SPROCKET - 6 tooth (YR. - 66-)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

7

T27988

STRIP - insecticide tube support (YR. - 66-)

1шт.

8

CHAIN - drive, combination (53 links - #25 steel) Make from B15926 - 10 ft. roll (YR. - 66-)

1шт.

8

CHAIN - drive, low profile (44 links - #25 steel) Make from B15926 - 10 ft. roll (YR. - 66-)

1шт.

B15926

LINK

CHAIN - steel (10 ft. or 133 links #25) (YR. - 66-)

1шт.
