Запчасти Case IH K160 (30) - HERBICIDE, INSECTICIDE ATTACHMENT, PER UNIT

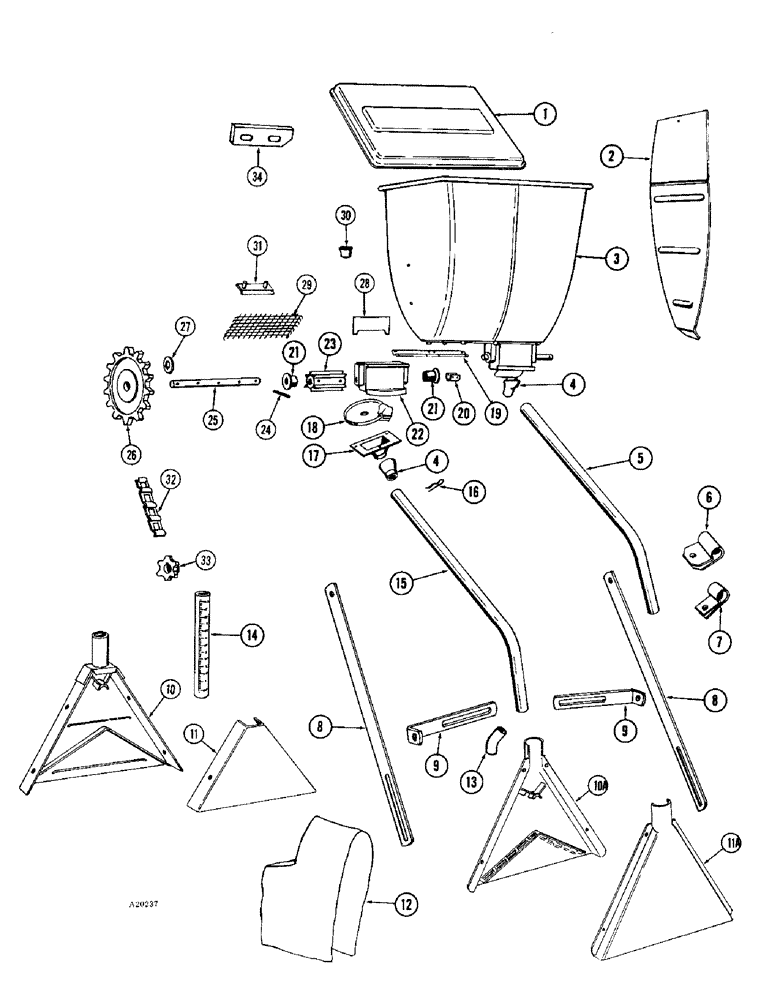

Схема запчастей Case IH K160 - (30) - HERBICIDE, INSECTICIDE ATTACHMENT, PER UNIT
6
4
25
10a
1
14
20
34
19
11
3
24
28
31
8
33
12
22
26
7
15
5
11a
23
21
13
16
21
27
30
29
2
4
8
10
18
17
32
9
9

Артикул

Название

Примечание

Количество

1

T28003

LID - hopper (YR. - 65-)

1шт.

2

T28021

DIVIDER - hopper (YR. - 65-)

1шт.

3

T28002

HOPPER (YR. - 65-)

1шт.

4

T28014

PIVOT

SWIVEL (YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

5

T28022

TUBE - 29" (Use T34716) (YR. - 1965)

1шт.

5

T34716

TUBE

- 37" (YR. - 66-)

1шт.

6

T28015

CLAMP - tube (YR. - 65-)

1шт.

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

7

T28016

CLAMP - tube (Hardware same as ref. no. 6) (YR. - 65-)

1шт.

8

T23828

BRACKET - attaching (YR. - 65-)

2шт.

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

195-103

WASHER,5/16"

- 7/8" x 3/8" x #14 ga.

2шт.

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

195-104

WASHER,3/8"

- 1" x 7/16" x #14 ga.

2шт.

9

T23829

BRACKET - attaching (YR. - 65-)

2шт.

10

T23826

SPREADER (YR. - 65-67)

1шт.

95-4

WASHER,1/4"

- 1/4"

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

10a

T37789

SPREADER (YR. - 67-)

1шт.

11

T23827

COVER - spreader (YR. - 65-67)

1шт.

168-23

SCREW - sheet metal, 3/8" x #10 rd. hd.

4шт.

11a

T37790

COVER - spreader (YR. - 67-)

1шт.

173-215

SCREW,Sl Rnd Hd, 1/4" - 20 x 1 1/2"

- machine, 1/4" x 1-1/2" rd. hd. Z.P.

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

6шт.

195-102

WASHER,1/4"

- 3/4" x 5/16" x 16 ga. Z.P.

4шт.

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine, #10 x 1/2" rd. hd. Z.P.

2шт.

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

129-17

NUT,Hex, #10 - 24

NUT - #10 Z.P.

2шт.

12

T62123

HOOD

- plastic (YR. - 65-)

1шт.

13

T28019

CONNECTOR - tube (YR. - 65-)

1шт.

14

T26571

GAUGE - calibration (YR. - 65-)

1шт.

T36897

STRING - measuring (Not shown) (YR. - 65-)

1шт.

15

T28018

TUBE

- 19-1/2" (YR. - 1965)

1шт.

15

T34715

TUBE

- 23-1/2" (YR. - 66-)

1шт.

16

A29054

HAIR PIN COTTER

COTTER - hairpin (YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

17

T28013

FUNNEL

(YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

18

T28012

GAUGE (YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

19

T28004

CONNECTOR - flange (YR. - 65-)

2шт.

20

T28020

CONNECTOR, ELEC

CONNECTOR - impeller shaft (YR. - 65-69)

1шт.

132-316

COTTER PIN,3/32" x 1 1/4"

PIN, SPLIT (COTTER), 3/32" x 1 1/4"

2шт.

20

T39356

CONNECTOR, ELEC

CONNECTOR - impeller shaft (YR. - 69-)

1шт.

21

T28011

BEARING

- metering housing (YR. - 65-)

4шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

22

T28007

HOUSING - metering (YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

187-20

SCREW - 8 - 32 x 3/8" washer head type

6шт.

23

T29042

IMPELLER (YR. - 65-67)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

23

T37791

IMPELLER (YR. - 67-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

24

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, (YR. - 65-) 3/16" x 7/8", Slotted

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

25

T29041

SHAFT - impeller (YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

132-318

COTTER PIN,5/32" x 1"

5/32" x 1"

2шт.

135-405

X

PIN - groove, 5/32" x 1"

2шт.

26

T1873

SPROCKET - 14 tooth (YR. - 65-)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

27

T29043

X

BUSHING (YR. - 65-)

4шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

28

T28008

STUD

BAFFLE (YR. - 65-)

2шт.

Part of right-hand metering unit P/N T36898

1шт.

Part of left-hand metering unit P/N T37797

1шт.

29

T28006

SCREEN - hopper (YR. - 65-)

2шт.

30

353-55

PLUG - outlet (YR. - 65-)

1шт.

31

T28005

PLATE - hopper (YR. - 65-)

4шт.

32

CHAIN - drive (53 links #25 steel) Make from B15926 - 10 ft. roll (YR. - 65-)

1шт.

B15926

LINK

CHAIN - steel (10 ft. or 133 links #25) (YR. - 65-)

1шт.

33

T1872

SPROCKET - 6 tooth (YR. - 65-)

1шт.

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

34

T28478

STRAP - reinforcement, hopper (YR. - 65-)

2шт.

T28017

COVER - hopper (Plastic) (Not shown) (YR. - 65-)

1шт.

T36898

METERING UNIT - L.H., Includes: Ref. 4, 16 - 18, 21 - 25, 27 and 28

1шт.

T37797

METERING UNIT - R.H., Includes: Ref. 4, 16 - 18, 21 - 25, 27 and 28

1шт.
