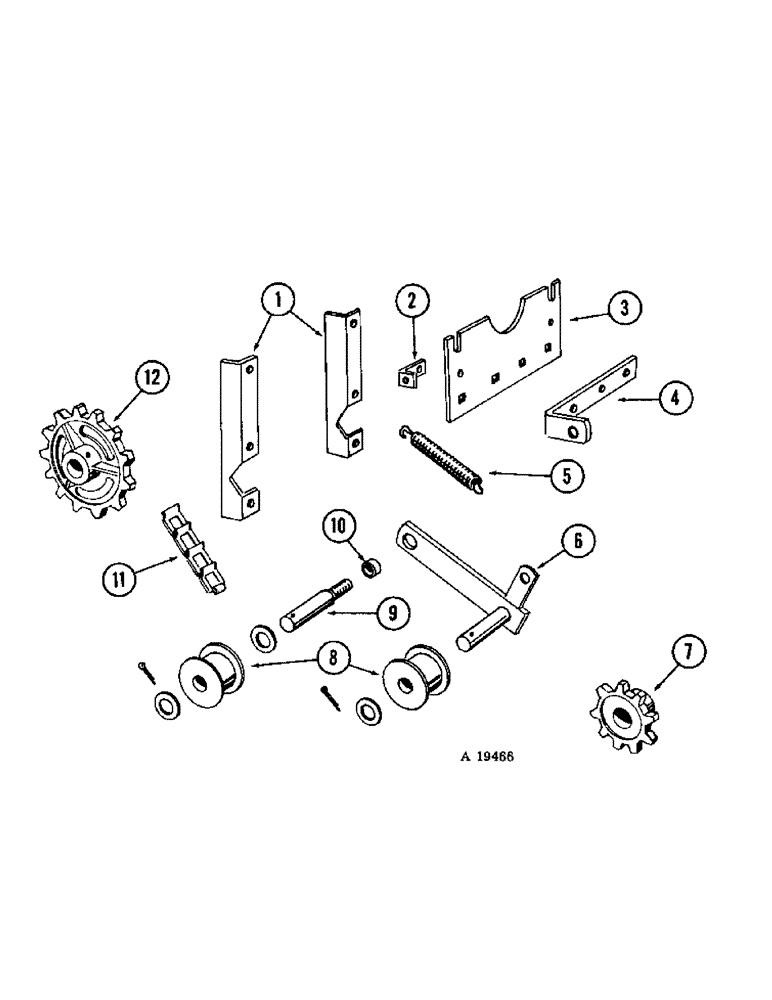

Запчасти Case IH K160 (28) - FERTILIZER HOPPER IDLER AND MOUNTING BRACKET

1

T27838

POST - hopper support (YR. - 65-)

2шт.

2

T27839

ANCHOR - spring (YR. - 65-)

1шт.

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

25-104

NUT,1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

T27826

PLATE - hopper support (YR. - 65-)

1шт.

11-716

BOLT (MACHINE)

BOLT - 7/16" x 1" carriage

3шт.

11-720

BOLT (MACHINE),Short NK, 7/16"-14 x 1 1/4", G2

BOLT - 7/16" x 1-1/4" carriage

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

4шт.

92-7

LOCK WASHER,7/16"

4шт.

4

T27827

BRACKET - idler arm (YR. - 65-)

1шт.

5

24EB

SPRING (YR. - 65-)

1шт.

6

T27840

ARM - idler (YR. - 65-)

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

1шт.

7

T1782

SPROCKET - 9 tooth (YR. - 65-)

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

1шт.

8

PT373

ROLLER - idler (YR. - 65-)

2шт.

9

T27831

PIN - idler roller (YR. - 65-)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

195-2057

WASHER - 1-1/4" x 9/16" x 12 ga

1шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga

1шт.

10

TD3879

BUSHING (YR. - 65-)

1шт.

11

CHAIN - drive (54 links #32 steel) Make from B15927 - 10 ft. roll (YR. - 65-)

1шт.

B15927

CHAIN (AG)

CHAIN - steel (10 ft. or 104 links of #32) (YR. - 65-)

1шт.

12

T1441

SPROCKET - 13 tooth (YR. - 65-)

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

1шт.

12

T1546

SPROCKET - 7 tooth (Optional as parts) (YR. - 65-)

1шт.

12

T1547

SPROCKET - 8 tooth (Optional as parts) (YR. - 65-)

1шт.

12

T1783

SPROCKET - 14 tooth (Optional as parts) (YR. - 65-)

1шт.

12

T2148

SPROCKET - 11 tooth (Optional as parts) (YR. - 65-)

1шт.
