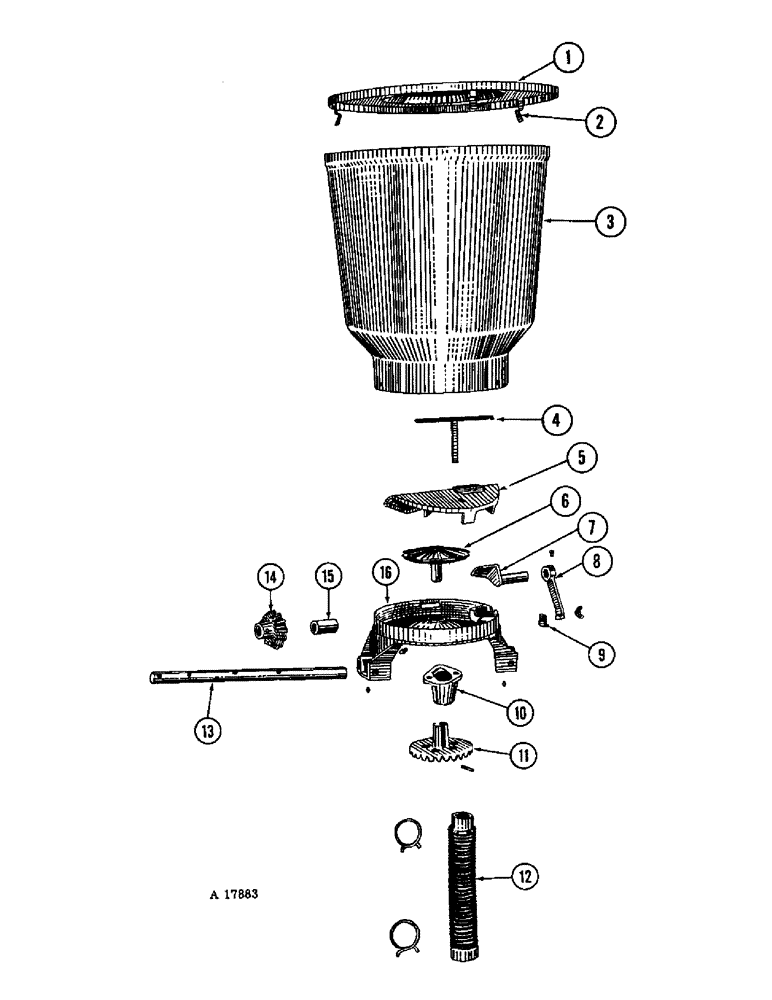

Запчасти Case IH K160 (26) - FERTILIZER HOPPER, PER UNIT

1

T18718

LID ASSEMBLY (YR. - 65-)

1шт.

2

T18714

LATCH (YR. - 65-)

3шт.

45-34

RIVET - 3/16" x 1/4" rd. hd.

3шт.

3

T18715

HOPPER (YR. - 65-)

1шт.

173-202

SCREW,Rnd Hd, 1/4" - 20 x 3/4"

- machine, 1/4" - 20 x 3/4" rd. hd. Z.P.

3шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

195-102

WASHER,1/4"

- 3/4" x 5/16" x 16 ga. Z.P.

3шт.

4

T18717

AGITATOR (YR. - 65-)

1шт.

5

T1568

CAP - cutoff (YR. - 65-)

1шт.

111-227

SCREW,Short NK, 5/16"-18 x 3", G2

BOLT - 5/16" x 3" carriage Z.P.

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

6

T1569

WHEEL - feed (YR. - 65-)

1шт.

7

T1571

GATE (YR. - 65-)

1шт.

8

T60657

HANDLE - gate (YR. - 65-)

1шт.

85-46

SET SCREW,Sq Hd, 1/4"-20 x 3/8"

SETSCREW - 1/4" x 3/8" C.P. sq. hd.

1шт.

9

T18706

CLIP - gate handle (YR. - 65-)

1шт.

111-203

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G2

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16"

1шт.

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

10

T1630

SPOUT (YR. - 65-)

1шт.

11

T1572

GEAR (YR. - 65-)

1шт.

138-97

LOCK PIN,3/16" x 1 1/8", Slotted

PIN, 3/16" x 1 1/8", Slotted

1шт.

12

T27843

TUBE (YR. - 65-) 1.625 - 2" ID

1шт.

214-122

X,#32, 2", Spring

CLAMP - tube, upper

1шт.

214-125

X,#36, 2 1/4", Spring

CLAMP - tube, lower

1шт.

13

T27825

SHAFT (YR. - 65-)

1шт.

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

195-2084

WASHER,13/16" x 1 1/4" x .067", HDN

- 1-1/4" x 13/16" x 16 ga

2шт.

14

T1573

PINION (YR. - 65-)

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

1шт.

15

T20571

SPACER (YR. - 65-)

1шт.

16

T1631

BOTTOM (YR. - 65-)

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" N.C. carriage

2шт.

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

2шт.

25-104

NUT,1/4"-20, G5

2шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

2шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

92-7

LOCK WASHER,7/16"

2шт.

95-7

WASHER,7/16"

- 1-1/4" x 1/2" x 14 ga

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" x 21/32" P.T. straight

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4" - 28 x 15/32" straight

2шт.
