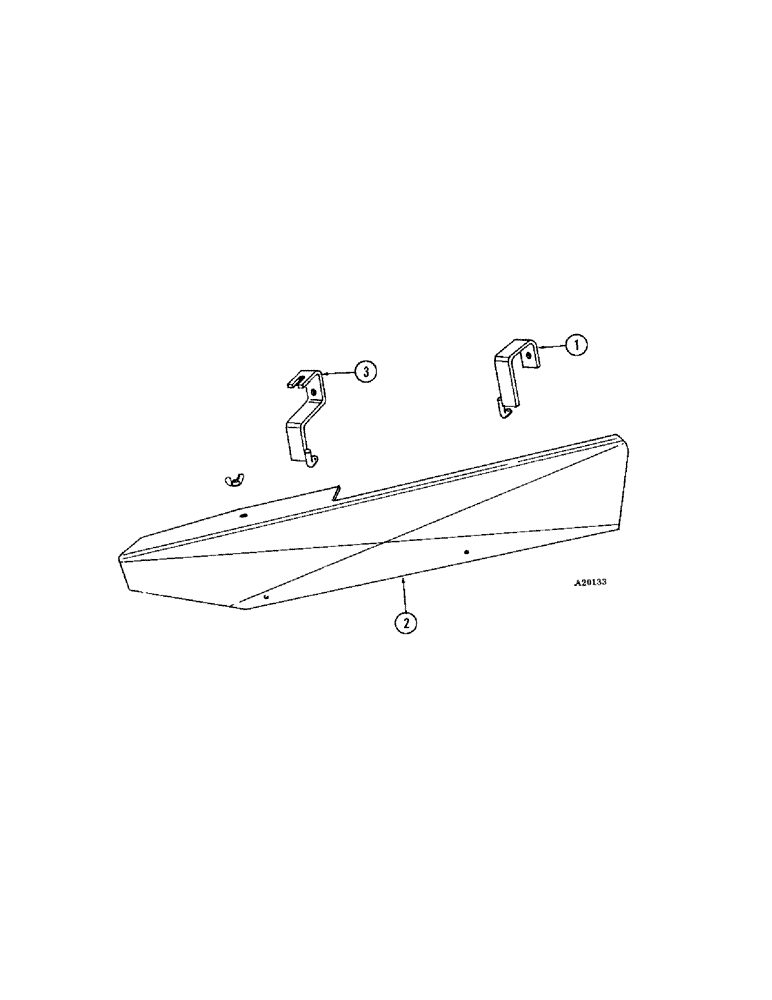

Запчасти Case IH K160 (22[1]) - DRIVE CHAIN SHIELD

1

T28652

BRONZE BUSHING

BRACKET - front (YR. - 65-)

1шт.

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8" x 1-1/4" carriage

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

92-6

LOCK WASHER,3/8"

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

2

T28654

SHIELD ASSEMBLY (YR. - 65-)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

92-6

LOCK WASHER,3/8"

1шт.

129-410

WING NUT,3/8"-16

NUT - wing, 3/8" N.C.

1шт.

3

T28642

BRACKET - rear (YR. - 65-)

1шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" carriage

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

1шт.

92-8

LOCK WASHER,1/2"

1шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

T27916

SPRING (Not shown)

2шт.
