Запчасти Case IH K160 (20) - BEET EQUIPMENT

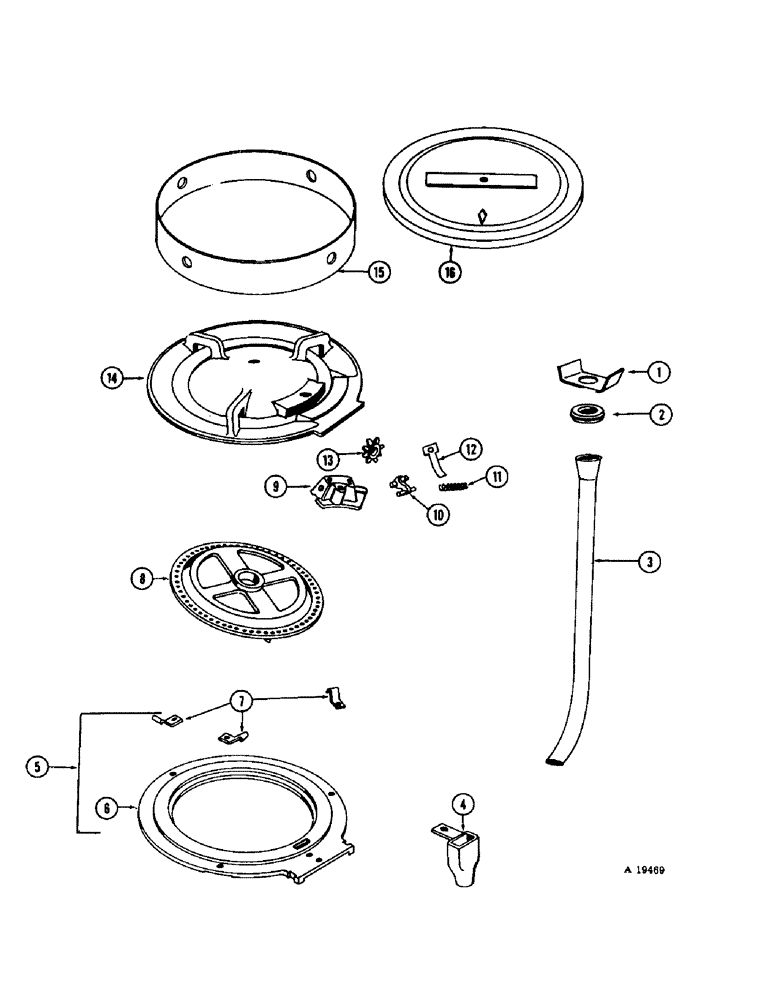

Схема запчастей Case IH K160 - (20) - BEET EQUIPMENT
8
3
14
5
6
7
9
15
10
4
1
11
2
13
16
12

Артикул

Название

Примечание

Количество

1

T28754

HOLDER - tube, top (YR. - 65-)

1шт.

2

T28755

GROMMET,5/8" ID x 7/8" Groove Dia

(YR. - 65-)

1шт.

3

T27917

TUBE - seed (YR. - 65-)

1шт.

4

T27912

SPOUT (YR. - 65-)

1шт.

173-43

SCREW - machine, #5 x 7/16" rd. hd.

2шт.

129-4

NUT - #5 hex

2шт.

192-4

WASHER - lock, #5

2шт.

5

T27915

PLATE ASSEMBLY - floor (YR. - 65-)

1шт.

6

T1867

RING - floor (Use T27915) (YR. - 65-)

1шт.

7

T27916

SPRING - pressure (YR. - 65-)

3шт.

45-25

RIVET - 1/8" x 5/16" rd. hd.

3шт.

8

T1855

PLATE - beet (8/64" hole - .105 thick) (YR. - 65-)

1шт.

8

T1856

PLATE - beet (9/64" hole - .105 thick) (YR. - 65-)

1шт.

8

T1857

PLATE - beet (10/64" hole - .105 thick) (YR. - 65-)

1шт.

8

T1858

PLATE - beet (10/64" hole - .125 thick) (YR. - 65-)

1шт.

8

T1859

PLATE - beet (11/64" hole - .125 thick) (YR. - 65-)

1шт.

8

T1860

PLATE - beet (12/64" hole - .145 thick) (YR. - 65-)

1шт.

8

T1861

PLATE - beet (Blank - .145 thick) (YR. - 65-)

1шт.

8

T1862

PLATE - beet (Blank - .188 thick) (YR. - 65-)

1шт.

8

T1920

PLATE - beet (12/64" hole - .155 thick) (YR. - 65-)

1шт.

8

T2043

PLATE - beet (9/64" hole - .084 thick) (YR. - 65-)

1шт.

8

T2044

PLATE - beet (11/64" hole - .105 thick) (YR. - 65-)

1шт.

9

T1865

CAP - cutoff and knocker (YR. - 65-)

1шт.

10

PT421

KNOCKOUT (YR. - 65-)

1шт.

11

341EB

SPRING - knocker (YR. - 65-)

1шт.

12

T27911

CUTOFF - beet (YR. - 65-)

1шт.

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

1шт.

25-104

NUT,1/4"-20, G5

2шт.

13

T1866

KNOCKER (YR. - 65-)

1шт.

14

T62473

BOTTOM - beet (YR. - 65-)

1шт.

73-428

SCREW - mach., 1/4" x 1-3/4" c'sunk hd. Slotted Flat Hd, 1/4"-20 x 1 3/4"

1шт.

25-104

NUT,1/4"-20, G5

1шт.

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

T28846

CHAMBER - seed accumulator (YR. - 65-)

1шт.

16

T28847

COVER - seed accumulator (YR. - 65-)

1шт.

13-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

1шт.

195-2015

WASHER

- 1/2" x 9/32" x 18 ga

1шт.

Выбрано товаров: 37
