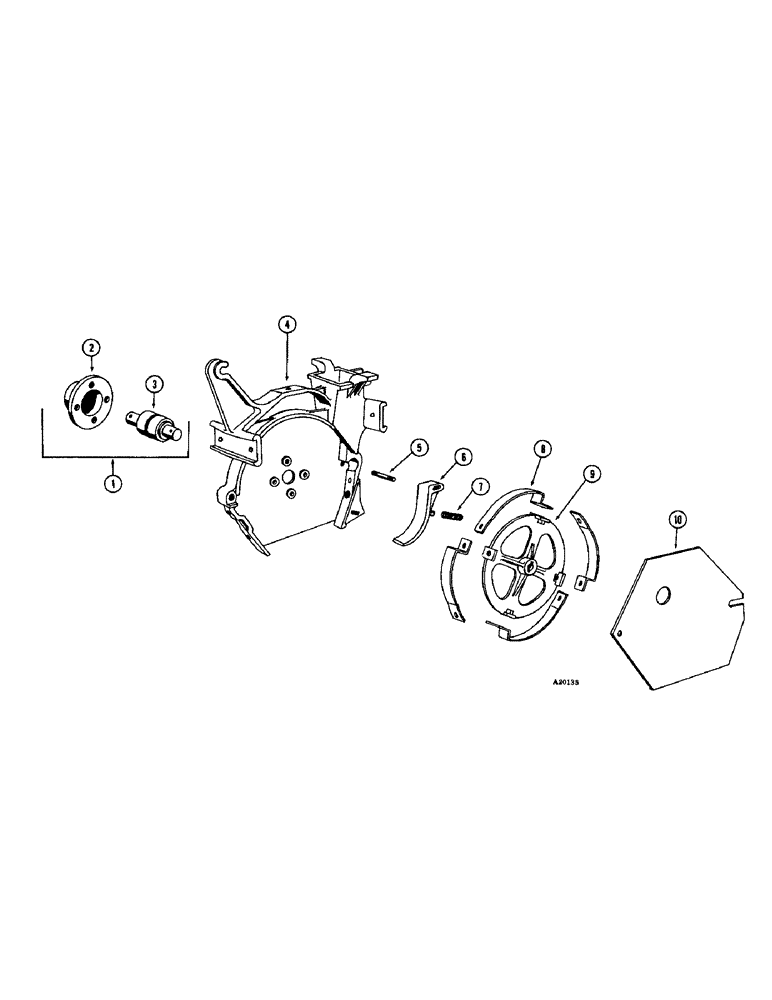

Запчасти Case IH K160 (18) - HILLDROP ASSEMBLY

1

T28712

HOUSING AND BEARING ASSEMBLY (YR. - 65-)

1шт.

2

T1926

HOUSING (Use T28712) (YR. - 65-)

1шт.

3

T28713

BEARING (YR. - 65-)

1шт.

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

4

T2176

HOUSING (Replaces T1992) (YR. - 69-)

1шт.

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex jam

1шт.

5

T28656

STUD (YR. - 65-)

1шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex jam

1шт.

6

T28724

VALVE - gate (YR. - 65-)

1шт.

7

341EB

SPRING - gate valve (YR. - 65-)

1шт.

8

T28714

CLIP - spring (YR. - 65-)

4шт.

164-200

SCREW - 1/4 - 20 x 1/2" flat hd. socket

4шт.

9

T1927

WHEEL - dropper (Use T2078) (YR. - 1965)

1шт.

9

T2078

WHEEL - dropper (YR. - 66-)

1шт.

10

T28660

PLATE - cover (YR. - 1965)

1шт.

10

T34833

PLATE - cover (YR. - 66-)

1шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" N.C.

2шт.

92-5

LOCK WASHER,5/16"

1шт.
