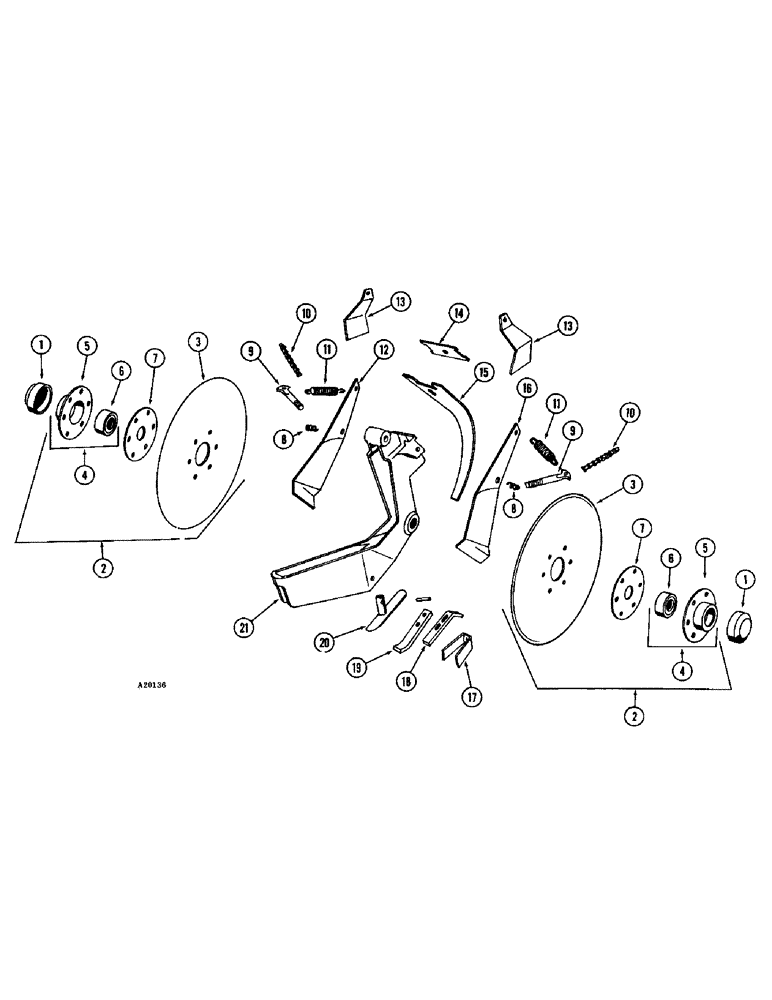

Запчасти Case IH K160 (16) - DOUBLE DISK OPENER

1

T27863

CAP - hub (YR. - 65-)

2шт.

2

T28729

BLADE - disk, complete (YR. - 65-)

2шт.

3

T28730

BLADE - disk (YR. - 65-)

1шт.

4

T28731

HOUSING AND BEARING ASSEMBLY (YR. - 65-)

1шт.

5

T28732

HOUSING - bearing (YR. - 65-)

1шт.

6

T20623

BEARING ASSY,0.64" ID x 1.5748" OD x 0.72"

BEARING (YR. - 65-)

1шт.

195-2118

WASHER - 1-1/2" x 1-1/8" x 18 ga

1шт.

7

T28733

WASHER (YR. - 65-)

1шт.

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

(R.H. thread) Hex, 5/8"-11 x 1 1/4", G5, Full Thd

1шт.

113-615

SCREW

BOLT - 5/8" x 1-1/4" N.C. hex (L.H. thread)

1шт.

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

3шт.

25-145

JAM NUT,Jam, 5/16"-18, G5

- 5/16" N.C. hex jam

3шт.

92-5

LOCK WASHER,5/16"

3шт.

45-58

RIVET - 5/16" x 1/2" rd. hd.

3шт.

8

276EB

SPRING - scraper (YR. - 65-)

2шт.

9

PT2277S

EYEBOLT - spring adjusting (YR. - 1965)

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga

2шт.

129-419

WING NUT,5/16"-18

NUT - wing, 5/16" N.C.

2шт.

10

T34310

NUT

CHAIN - spring, adjusting (YR. - 66-)

2шт.

132-91

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

11

101EB

SPRING - tension (YR. - 65-)

2шт.

12

T28728

SCRAPER - L.H. (YR. - 1965)

1шт.

13

T34874

SCRAPER - outside (YR. - 66-)

2шт.

13-580

X,Hex, 5/16" - 18 x 5", Gr 5

BOLT - 5/16" x 5" N.C. hex

1шт.

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16" N.C. hex., ESNA

1шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 7/8" x 3/8" x 14 ga

2шт.

14

T34876

GUIDE - scraper (YR. - 66-)

1шт.

15

T28734

SHIELD (Use T34873) (YR. - 1965)

1шт.

15

T34873

SHIELD (YR. - 66-)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

1шт.

92-6

LOCK WASHER,3/8"

1шт.

95-6

WASHER,3/8"

- 1" x 7/16" x 14 ga

1шт.

16

T28727

SCRAPER - R.H. (YR. - 1965)

1шт.

13-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- 5/16" x 4" N.C. hex

1шт.

131-4

LOCK NUT,5/16"-18, GB

NUT - lock, 5/16" N.C. hex, ESNA

1шт.

17

T34988

SCRAPER - inside (YR. - 66-)

1шт.

18

T34989

BRACKET - inside scraper (YR. - 66-)

1шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

1шт.

92-5

LOCK WASHER,5/16"

1шт.

19

T34872

TIP - wear (YR. - 66-)

1шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

92-6

LOCK WASHER,3/8"

2шт.

20

T32512

TIP - wear (YR. - 1965)

1шт.

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN, 1/4" x 1 3/8", Slotted

1шт.

21

T1928

SHANK (Use T2081) (YR. - 1965)

1шт.

21

T2081

SHANK (YR. - 66-)

1шт.

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(Shank to frame) Hex, 7/16"-14 x 2 3/4", G5

1шт.

13-772

BOLT,Hex, 7/16" - 14 x 4-1/2", Gr 5

(Shank to hsg.) Hex, 7/16"-14 x 4 1/2", G5

1шт.

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex (Frame)

1шт.

25-227

NUT - 7/16" N.C. square (Hsg.) Sq, 7/16"-14

1шт.

92-7

LOCK WASHER,7/16"

2шт.
