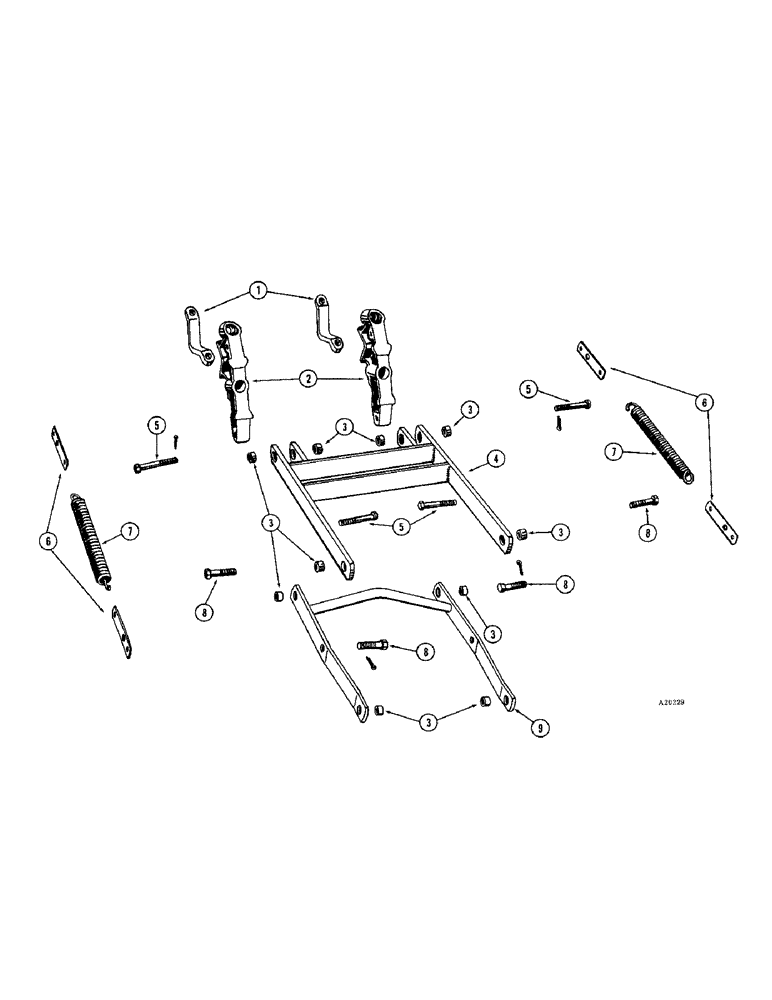

Запчасти Case IH K160 (14) - PARALLEL LINKS

1

T17751

CLAMP - hanger (YR. - 65-)

2шт.

2

T1627

HANGER

- runner (YR. - 65-66)

2шт.

2

T2135

HANGER

- runner (YR. - 67-)

2шт.

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

92-8

LOCK WASHER,1/2"

4шт.

3

T24891

BUSHING - parallel links (YR. - 65-69)

10шт.

3

T39053

BUSHING - parallel links (YR. - 69-)

10шт.

4

T24907

LINK - upper (YR. - 65-)

1шт.

5

13-744

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(YR. - 65-) Hex, 7/16"-14 x 2 3/4", G5

4шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 7/16"

4шт.

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4" x 1/2" x 10 ga

4шт.

6

T26267

BRACKET - spring (YR. - 65-)

4шт.

7

224GD

SPRING - tension (YR. - 65-)

2шт.

8

13-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

(YR. - 65-) Hex, 7/16"-14 x 1 3/4", G5

4шт.

195-2045

WASHER,1/2" x 1 1/4" x .134"

- 1-1/4" x 1/2" x 10 ga.

4шт.

230-4117

LOCK NUT,7/16"-14, GA

LOCKNUT - 7/16"

4шт.

9

T31330

LINK - lower (YR. - 65-)

1шт.
