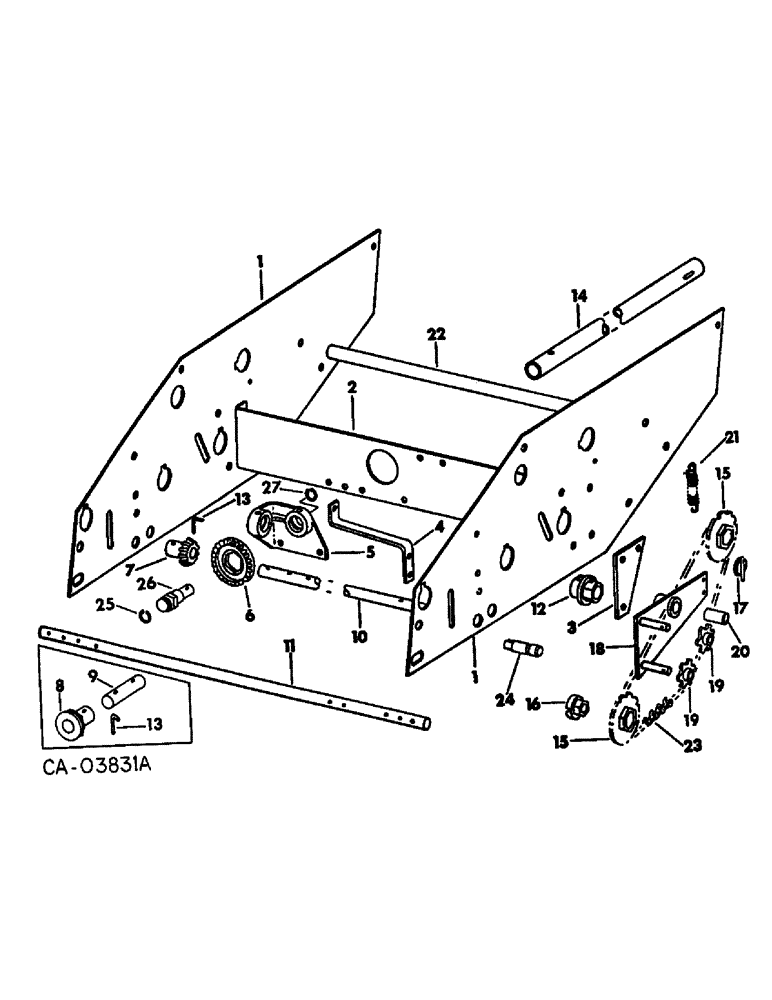

Запчасти Case IH 92 (D-08) - CENTER DRIVE

1

58212C3

PLATE, hopper mounting

2шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4 x 2 znd hex-hd cap

4шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1/2-13 x 1 znd hex-hd cap

4шт.

669112R1

WASHER, 25/32 x 1-1/4 x 11 ga. znd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

280954

NUT,3/4"-10, G5

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

20601R1

WASHER

.531 x 1.25 x 11 ga znd

2шт.

2

58210C1

PLATE, gear box mounting

1шт.

3

58172C1

SUPPORT, chain tightener

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

SCREW, 1/2 x 1-1/4 znd hex-hd cap

4шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2 x 1-1/2 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

4

546991R1

BRACKET, sprocket storage

1шт.

5

546529R2

BOX

GEAR BOX

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8 x 1-1/4 znd hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

6

128763C1

PINION

GEAR, drum drive, 24 teeth, will work for 55580C3 when used w/gear 128760C1

1шт.

7

12760C1

PINION, drum drive, will work for 546287R3 when used w/gear 128763C1

1шт.

8

55579C3

BUSHING

drive, for use w/shaft 546532R1

1шт.

9

546532R1

SHAFT

gear drum drive, for replacement order shaft 128806C1, washer Q3858, ring 202306R1 and ring 659380R1

1шт.

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8-27 x 90 deg STR lub

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8-27PTF x 90 deg lub

1шт.

608085R1

WASHER

1-13/32 x 2 x 16 ga C-Z

2шт.

21794R1

WASHER

1-13/32 x 2 x 20 ga C-Z

2шт.

22481R1

WASHER

1.406 x 2.250 x .054 znd

2шт.

10

141395C1

SHAFT

gear box, replaces 58261C1

1шт.

11

141398C1

COUNTERSHAFT, center, replaces 58265C1

1шт.

12

481812R11

BEARING ASSY

w/BUSHING

3шт.

19700R91

FITTING

3/16 x 45 deg drive lub

3шт.

21761R1

WASHER

29/32 x 1-1/2 x 16 ga C-Z

3шт.

217973

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1-1/4"

3шт.

18481R1

COTTER PIN,3/16" x 1"

PIN, SPLIT (COTTER), 3/16" x 1"

3шт.

13

546531R1

PIN

drive

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

14

58173C1

COUPLING

drum drive

1шт.

385098R1

HEADED PIN,1/4" x 1 11/16"

PIN, 1/4 x 1.81 znd std-hd

2шт.

648002

KNIFE

1/8" x 3/4"

2шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

2шт.

15

546432R1

SPROCKET ASSY.

SPROCKET, 16T, 1979 and below

1шт.

15

134240C1

SPROCKET ASSY.

SPROCKET, 16T, 1980 and above

1шт.

15

546433R1

SPROCKET ASSY.

SPROCKET, 14T, 1979 and below

1шт.

15

134238C1

SPROCKET ASSY.

SPROCKET, 14T, 1980 and above

1шт.

15

546515R1

SPROCKET ASSY.

SPROCKET, 18T, 1979 and below

1шт.

15

134242C1

SPROCKET ASSY.

SPROCKET, 18T, 1980 and above

1шт.

15

546516R1

SPROCKET ASSY.

SPROCKET, 15T, 1979 and below

1шт.

15

134239C1

SPROCKET ASSY.

SPROCKET, 15T, 1980 and above

1шт.

15

546518R1

SPROCKET ASSY.

SPROCKET, 11T, 1979 and below

1шт.

15

134236C1

SPROCKET ASSY.

SPROCKET, 22T, 1980 and above

1шт.

15

546514R1

SPROCKET ASSY.

SPROCKET, 10T, 1979 and below

1шт.

15

134235C1

SPROCKET ASSY.

SPROCKET, 10T, 1980 and above

1шт.

15

546517R1

SPROCKET ASSY.

SPROCKET, 8T, 1979 and below

1шт.

15

134234C1

SPROCKET ASSY.

SPROCKET, 8T, 1980 and above

1шт.

15

484197R2

SPROCKET ASSY.

SPROCKET, 12T, 1979 and below

1шт.

15

134237C1

SPROCKET ASSY.

SPROCKET, 12T, 1980 and above

1шт.

15

484196R2

SPROCKET ASSY.

SPROCKET, 17T, 1979 and below

1шт.

15

134241C1

SPROCKET ASSY.

SPROCKET, 17T, 1980 and above

1шт.

21212R1

WASHER

.906 x 2.000 x .105

1шт.

16

547955R1

HUB

sprocket drive

2шт.

22098R1

LOCK PIN,1/4" x 1 3/4", Slotted

Pin, 1/4" x 1 3/4", Slotted

2шт.

17

373025R91

PIN ASSY.

PIN, quick attachable snap

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

18

58272C2

PLATE

ASSY, chain tightener

1шт.

20691R1

FITTING,3/16" x .47" lg, Drive

3/16 STR drive lub

1шт.

19

472344R3

SPROCKET

6T idler

2шт.

20

548537R1

BUSHING

1шт.

21

PO7

SPRING

1шт.

22942R1

PIN, 1/4 x 3/4 znd cot.

3шт.

180188

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW, 1/2 x 2-3/4 znd hex-hd cap

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga znd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

22

58032C1

TUBE, plate tie 1.5" OD, 27.94" Length

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

271546

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8 x 1-1/4 znd hex-hd cap

2шт.

23

CHAIN, drum drive, use 33 links of 1 in. extended pitch agricultural roller chain from a 10 ft roll marked, 569088R91 and one connecting link, 457113R91

1шт.

24

58167C1

STUD, pump storage

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

25

202306R1

SNAP RING,#162, Ext

Ring, Snap, #162, Ext

1шт.

26

128806C1

SHAFT

gear drum drive

1шт.

Q3858

WASHER

1.406 x 2.250 x .033 pln

1шт.

608085R1

WASHER

1.406 x 2.000 x .054

1шт.

20644R1

WASHER

1.656 x 2.250 x .054

1шт.

21794R1

WASHER

1.406 x 2.000 x .033

2шт.

22481R1

WASHER

1.406 x 2.250 x .054

2шт.

273352

SCREW

FITTING, 1/8 PTF short 90D lub

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, 1/8 PTF short 90D lub

1шт.

27

659380R1

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

1шт.
