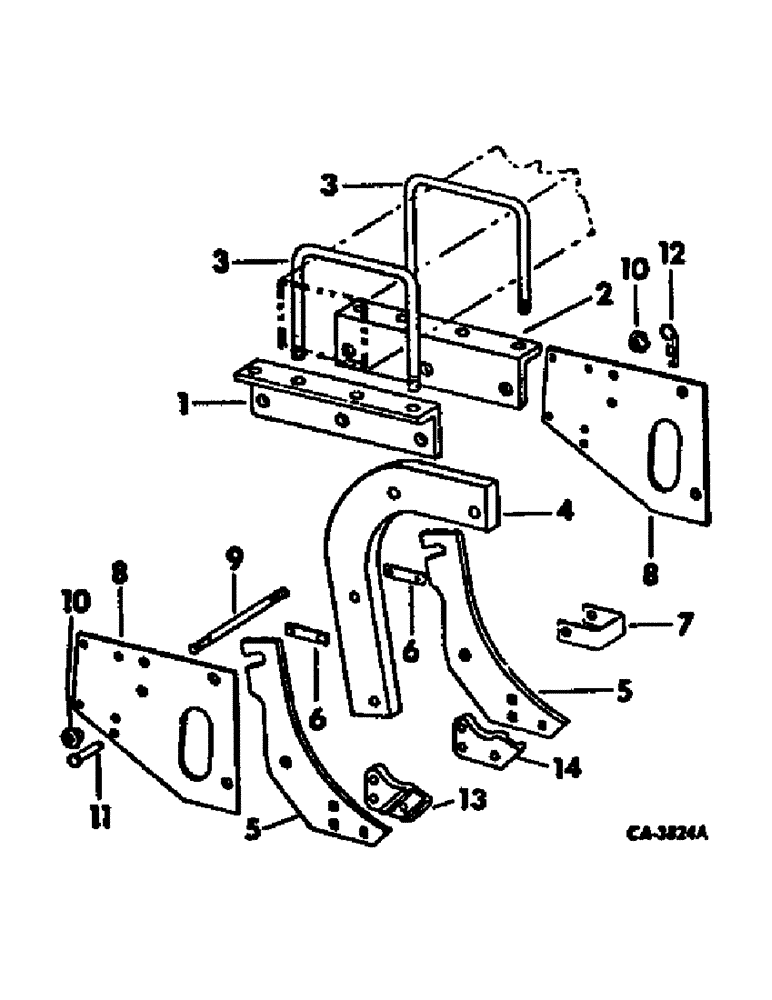

Запчасти Case IH 92 (D-05) - BEAM AND ANGLES, QUANTITIES SHOWN ARE PER ROW

1

541653R1

ANGLE

beam clamp RH

1шт.

2

541652R1

ANGLE

beam clamp LH

1шт.

3

541654R1

BOLT,U, 3/4" - 10 x 168.90mm

U-BOLT, 2 for 4 row and 6 row narrow

1шт.

3

541655R1

BOLT,U, 3/4" - 10 x 192.80mm

U-BOLT, 2 for 6 row wide and 8 row

1шт.

280954

NUT,3/4"-10, G5

4шт.

4

480266R1

BEAM

1шт.

271776

BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5

SCREW, 3/4-10 x 3-1/4 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

PO28367A

PLATE

break-off side

2шт.

16874R1

BOLT,Short NK, 7/16"-14 x 2 3/4", G2

7/16 x 2-3/4 znd sq-nk crg

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

18709R1

BOLT,Short NK, 1/2"-13 x 2 3/4", G2

1/2 x 2-3/4 znd sq-nk crg

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

6

PO28369

STRIP

SPACER, side plate

1шт.

7

656739R1

STOP, friction break-off

1шт.

8

541656R3

PLATE

side

2шт.

DKN6466

SPRING

SCREW, 7/16 x 3-1/4 znd hex-hd cap

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

1шт.

9

PO26190X

HARDWARE

BOLT ASSY, covering frame pivot

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

10

PO2944

NUT

pivot

2шт.

11

133849C1

PIN, runner adj.

1шт.

12

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

13

PO28182

ANCHOR

BLOCK, RH spacer, one per row

1шт.

14

PO28181

BLOCK

LH spacer, one per row

1шт.

271729

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

SCREW, 5/8-11 x 3-1/2 znd hex-hd cap

1шт.

271730

SWASH PLATE,Hex, 5/8" - 11 x 3 3/4", Gr 5

SCREW, 5/8-11 x 3-3/4 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

2шт.
