Запчасти Case IH 92 (D-55) - HYDRAULIC PUMP, 540 RPM

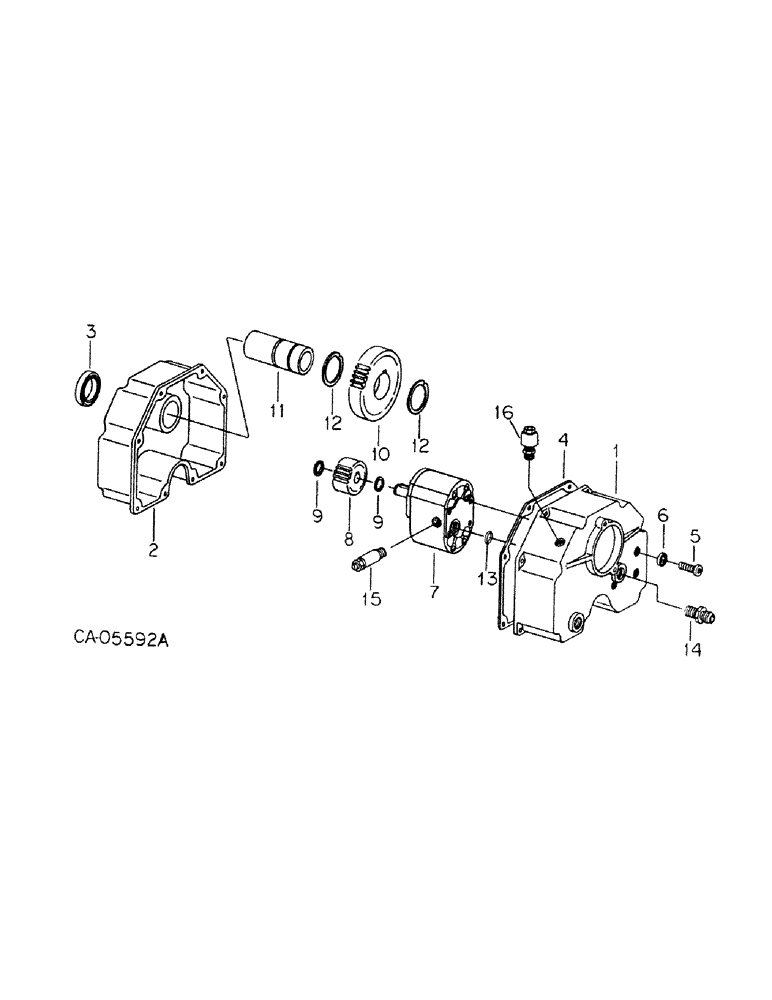

Схема запчастей Case IH 92 - (D-55) - HYDRAULIC PUMP, 540 RPM
15
11
4
9
1
5
6
7
13
2
14
12
16
10
3
5
12
9

Артикул

Название

Примечание

Количество

149367C91

PUMP

ASSY, 540 RPM hydraulic service parts are

1шт.

1

149374C91

HOUSING

w/PRODUCT GRAPHIC, 145167C1, rear

1шт.

145167C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

2

64658C91

HOUSING

ASSY, front

1шт.

3

65659C91

SEAL, oil

1шт.

4

64660C2

GASKET

GASKET, housing

1шт.

27569R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 1"

SCREW, 5/16 x 1 h/whd tap

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

141240

PIN, 3/8 x .750 pln uhdn dowel 3/8" x 3/4"

1шт.

1282190C1

PIN

3/8 x .61 hollow dowel

2шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

480891R1

NUT

1/4-20 hex flange lock

2шт.

5

217911

SCREW

3/8 x 7/8 pln h/shd cap

4шт.

6

336525R1

WASHER

sealing

4шт.

7

64661C1

HYDRAULIC PUMP

PUMP, hydraulic

1шт.

8

64662C1

GEAR

driven, 22 teeth

1шт.

Q53

KEY,1/4" Sq x 1", Par

1шт.

9

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

2шт.

10

64663C1

GEAR

driven, 48 teeth

1шт.

11

64664C1

SPLINED COUPLING

1шт.

12

665071R1

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

13

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 x 1/8

1шт.

14

255678C1

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, NPTF

CONNECTOR, 1/2 NPT to 3/4-16 37 deg. flared tube

1шт.

15

64665C1

VALVE

relief

1шт.

16

64666C2

BREATHER

1шт.

Выбрано товаров: 25
