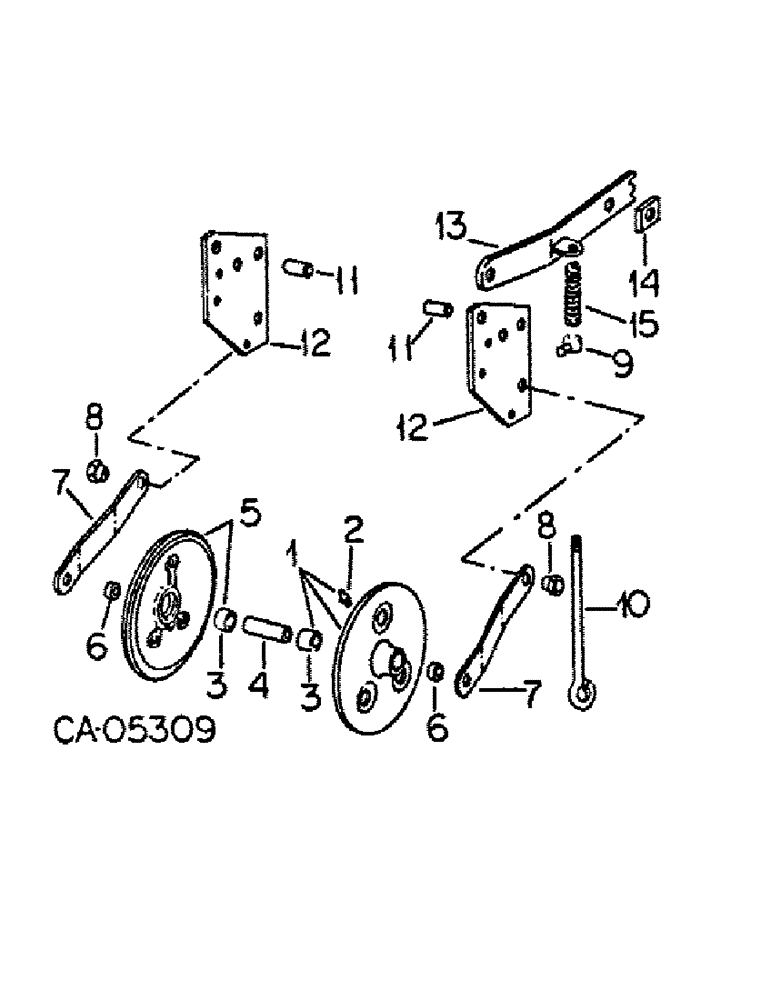

Запчасти Case IH 92 (D-54) - SEED FIRMING WHEEL ATTACHMENT, QUANTITIES SHOWN ARE PER ROW, FOR USE W/PLANTING EQUIPMENT

1

524732R11

WHEEL

ASSY, half

1шт.

18654R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4-20 x 3/4 znd hex-hd mach

3шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

3шт.

2

126098

FITTING

5/16 STR drive type lub

1шт.

3

524735R1

BUSHING

wheel

2шт.

4

524734R1

BUSHING

wheel

1шт.

5

524733R11

WHEEL ASSY.

WHEEL ASSY, half

1шт.

6

520209R1

SPACER

pressure rod

2шт.

7

520210R1

SUPPORT

RAIL, wheel side

2шт.

191163

BOLT,Hex, 3/8" - 16 x 4", Gr 5

SCREW, 3/8-16 x 4 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

178372R1

WASHER

13/32 x 1-1/4 x 16 ga znd

1шт.

8

PO2944

NUT

side rail pivot

2шт.

495-11081

WASHER,3/4", SAE

13/16 x 1-1/2 x .134 znd

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16-14 x 1-1/4 znd hex-hd mach

2шт.

9

517951R11

WEAR PAD

COLLAR w/SCREW, 142671, pressure rod set

1шт.

485-1318

SET SCREW,Sq Hd, 5/16"-18 x 1/2"

SCREW, 5/16-18 x 1/2 sq-hd cup-pt set

1шт.

10

519181R2

ROD

pressure

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga znd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

11

58165C1

BUSHING, plate

2шт.

12

58269C1

PLATE, seed firming wheel

2шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

SCREW, 7/16-14 x 3-3/4 znd hex-hd cap

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Q846

PIN,7/16" x 3 3/8"

7/16 x 3-3/8 std-hd

1шт.

648002

KNIFE

1/8" x 3/4"

1шт.

13

477154R21

ARM

ASSY, pressure rod

1шт.

14

520212R1

SPACER, pressure arm

1шт.

15

PO104

VALVE SPRING

SPRING, pressure

1шт.
