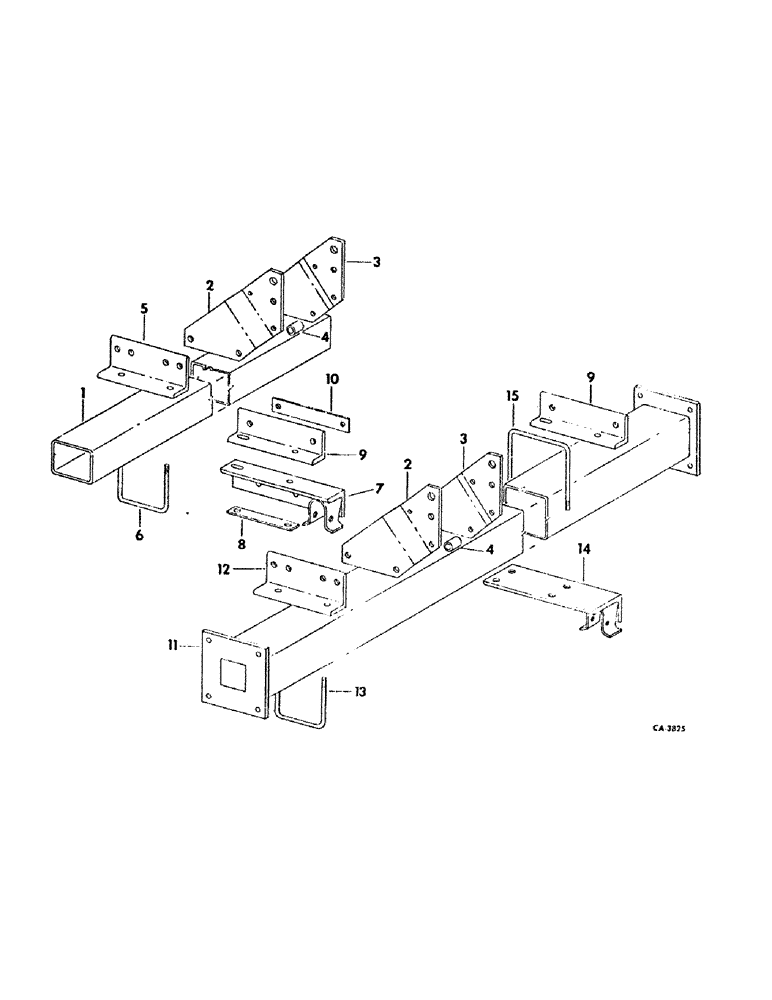

Запчасти Case IH 92 (D-04) - MAIN FRAME

1

541610R2

TUBE, toolbar, 4 row

1шт.

1

541609R2

TUBE

toolbar, 6 row narrow

1шт.

2

541633R2

SUPPORT

MAST, RH

1шт.

3

541632R2

MAST ASSEMBLY

MAST, LH

1шт.

4

462425R1

SPACER

mast

2шт.

NLS

NO LONGER SERVICED

SCREW, 3/4-10 x 4-1/2 znd hex-hd cap

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

2шт.

280954

NUT,3/4"-10, G5

2шт.

5

541638R1

ANGLE

mast RH, 4 row & 6 row narrow

1шт.

5

541637R1

ANGLE

mast LH, 4 row & 6 row narrow

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

6

493468R1

BOLT,7/8" - 9 x 6 1/2"

U-BOLT, 2 for row & 6 row narrow

1шт.

23831R1

NUT,7/8"-9, G8

7/8-9 C-Z hex. type 8

4шт.

7

541640R1

SUPPORT

ASSY, lower link RH, 4 row, 6 row narrow & 8 row narrow

1шт.

7

541639R1

SUPPORT

ASSY, lower link LH, 4 row, 6 row narrow & 8 row narrow

1шт.

8

541644R1

BAR

CLIP, 5 x 7 bar lower link, 2 for 4 row and 6 row narrow

1шт.

9

58244C1

ANGLE, hopper assy mounting LH

1шт.

9

58245C1

ANGLE, hopper assy mounting RH

1шт.

18759R1

BOLT (SPREADER),1" x 8", Gr 5

SCREW, 1-8 x 8 hex-hd cap, 4 for 4 row and 6 row narrow

1шт.

18004R1

SCREW, 1-8 x 9 hex-hd cap, 4 for 6 row wide and 8 row

1шт.

21162R1

WASHER

1-1/32 x 2 x 7 ga znd, 2 for 4 row and 6 row narrow

1шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

4шт.

9849633

NUT,1"-8, G5

4шт.

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, 3/4-10 x 2 znd hex-hd cap, 4 for 6 and 8 row wide

1шт.

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5, 4 for 4 row, 6 & 8 row narrow

1шт.

366112R1

WASHER

25/32 x 1-1/4 x .105 znd

2шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

WASHER, 3/4-10 znd hex.

4шт.

10

60059C1

SPACER, 2 for 4 row, 6 & 8 row narrow

1шт.

11

541975R3

TUBE ASSY, toolbar, 6 row wide

1шт.

11

58323C3

TUBE ASSY, toolbar, 8 row wide 290" Length

1шт.

11

541611R3

TUBE ASSY, toolbar, 8 row narrow

1шт.

12

100501C1

ANGLE

mast, 2 for 6 row wide & 8 row, replaces 541634R1 & 541635R1

1шт.

87403

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

280954

NUT,3/4"-10, G5

4шт.

13

541636R1

BOLT,U, 7/8" - 9 x 7.64"

U-BOLT, 2 for 6 row wide and 8 row

1шт.

23831R1

NUT,7/8"-9, G8

7/8-9 C-Z hex. type 8

4шт.

14

541647R1

SUPPORT

ASSY, lower link RH, 6 row wide and 8 row

1шт.

14

541646R1

SUPPORT

ASSY, lower link LH, 6 row and 8 row

1шт.

15

541742R1

BOLT,U, 1" - 8 x 7.84"

U-BOLT, 2 for 6 row wide & 8 row

1шт.

21929R1

NUT,1"-8, G8

1-8 znd hex.

8шт.

21162R1

WASHER

1-1/32 x 2 x 7 ga znd

2шт.
