Запчасти Case IH 92 (D-52) - QUICK ATTACHABLE HITCH, FOR TWO POINT FAST HITCH

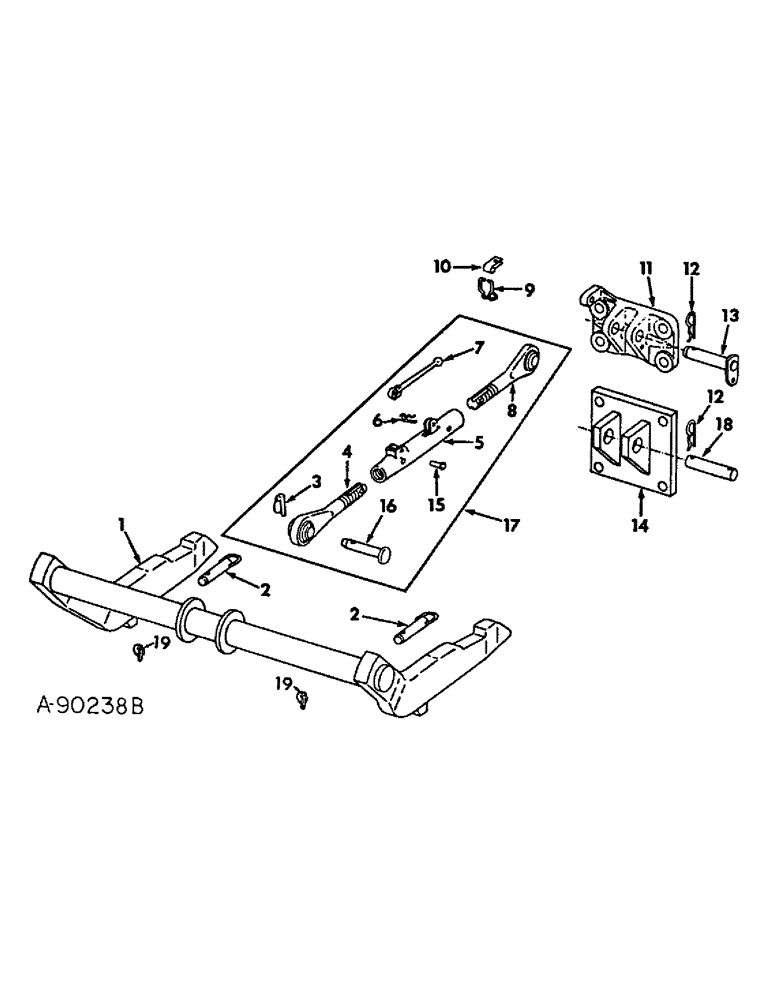

Схема запчастей Case IH 92 - (D-52) - QUICK ATTACHABLE HITCH, FOR TWO POINT FAST HITCH
2
19
16
7
2
13
1
18
12
12
14
15
11
6
4
3
17
19
8
9
5
10

Артикул

Название

Примечание

Количество

1

483567R91

BEAM

ASSY, coupling

1шт.

2

113225C1

PIN

ASSY, ball, replaces 517853R21

2шт.

3

517758R91

SPLIT PIN/SAFETY PIN

PIN, implement pin retaining

1шт.

4

386048R91

LINK

SCREW ASSY, LH thread

1шт.

5

400908R1

TURNBUCKLE

upper link

1шт.

6

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

7

392204R1

HANDLE

upper link turnbuckle

1шт.

8

386049R91

LINK

SCREW ASSY, RH thread

1шт.

22061R1

PIN, 1/4 x 1-1/8 C-Z HV coiled spring

2шт.

9

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

10

378404R1

FASTENER

CLIP

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

1шт.

11

389372R4

BRACKET, upper link, Farmall 656 tractors

1шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

12

520175R1

CLIP

PIN, 3/16 quick attachable cot.

1шт.

13

481985R1

PIN, upper link, Farmall 656 tractors

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

14

473168R91

BRACKET

ASSY, upper link

1шт.

271723

SNAP RING,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 C-Z hex-hd cap

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

15

22634R1

PIN,3/8" x 1 3/4"

3/8 x 1-3/4 C-Z std-hd

1шт.

12235R1

1/8" x 5/8" 1/8" x 5/8"

1шт.

16

374132R1

PIN

upper link implement, replaces 380563R91

1шт.

17

400907R92

LINK

ASSY, upper

1шт.

18

473171R1

PIN

upper link

1шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

19

373025R91

PIN ASSY.

PIN ASSY, quick attachable

2шт.

Выбрано товаров: 28
