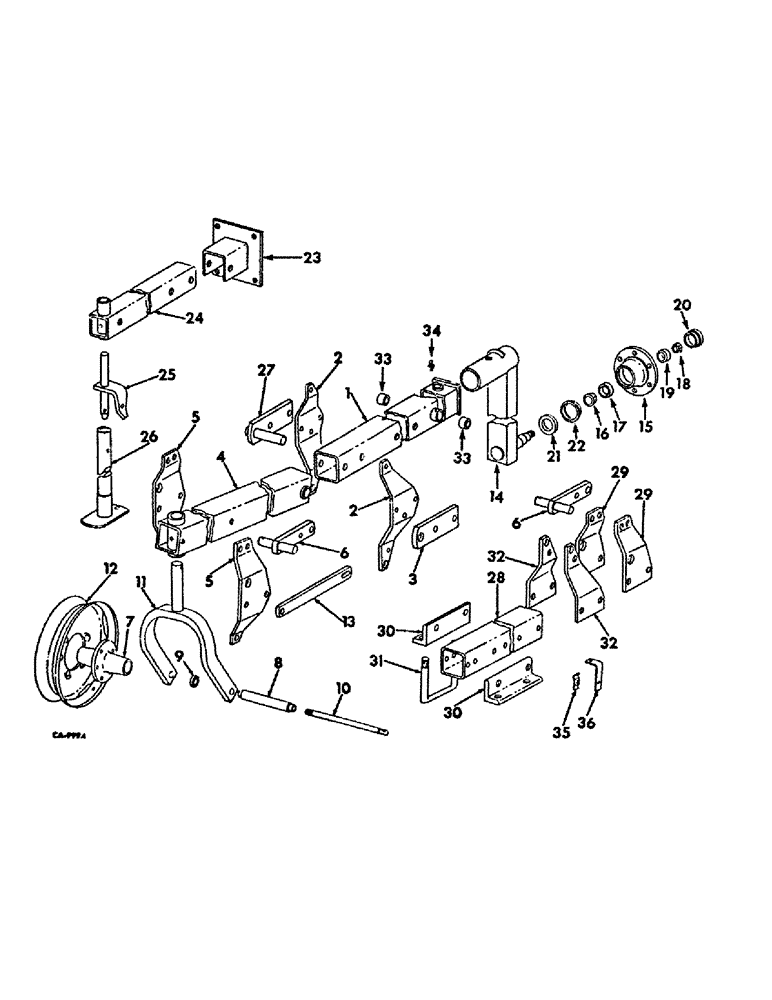

Запчасти Case IH 92 (D-48) - ASSIST AND TRANSPORT WHEELS, FOR 6 ROW WIDE AND 8 ROW
№
Артикул
Название
Примечание
Количество
1
541736R2
TUBE ASSY, transport
1шт.
21400R1
BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5
SCREW, 3/4-10 x 7-1/2 znd hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
2
541743R1
PLATE, cylinder anchor LH, for use w/transport wheels
1шт.
2
51744R1
PLATE, cylinder anchor RH, for use w/transport wheels
1шт.
3
541745R2
ARM
2шт.
NLS
NO LONGER SERVICED
SCREW, 5/8-11 x 1-3/4 znd hex-hd cap
1шт.
21702R1
BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5
SCREW, 3/4-10 x 8-1/2 znd hex-hd cap
2шт.
20919R1
BOLT,Hex, 3/4" - 10 x 9", Gr 5
SCREW, 3/4-10 x 9 znd hex-hd cap
2шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
4
541748R1
TUBE ASSY, assist wheel
2шт.
66584D
FITTING
3/16 STR drive type lub, 1 per tube
1шт.
109366
FITTING, 3/16 drive type 30 deg angle lub, 1 per tube
1шт.
5
541752R1
SUPPORT
PLATE, LH, for use w/transport wheels
1шт.
5
541753R1
SUPPORT
PLATE, RH, for use w/transport wheels
1шт.
19959R1
BOLT,Hex, 3/4" - 10 x 7", Gr 5
SCREW, 3/4-10 x 7 znd hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
6
541754R1
LINK ASSY, cylinder
2шт.
551183R1
WASHER, 1-17/32 x 2-1/2 x 16 ga
4шт.
13170R1
Pin, Split (Cotter), 5/16" x 2 1/4" 5/16" x 2 1/4"
4шт.
541782R1
STOP ASSY
2шт.
80280173
BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5
SCREW, 3/4-10 x 2-3/4 znd hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
7
541757R1
HUB
wheel
2шт.
8
541758R1
TUBE
SPACER
2шт.
9
963078R91
BALL BEARING,1.1811" ID x 2.4409" OD x 0.9449"
ASSY, ball
4шт.
591715R1
WASHER
1.031 x 1-1/2 x 16 ga
4шт.
10
541759R2
ROD
axle
2шт.
492-11100
LOCK WASHER,1"
WASHER, LOCK, 1"
4шт.
9849633
NUT,1"-8, G5
4шт.
11
541760R2
ARM ASSY, wheel
2шт.
462997R1
WASHER
wear
4шт.
193244
COTTER PIN,3/8" x 2 1/2"
Pin, Split (Cotter), 3/8" x 2 1/2"
2шт.
12
481344R91
WHEEL
ASSY, 14 in., recommended tire size 9.50 x 14, 2 for use with assist wheels, 3 for use with assist and transport wheels
1шт.
549962R1
BOLT,1 1/2" - 20 x 1 1/2", Class 3
wheel, 6 per wheel
1шт.
13
541763R1
LINK, transport
1шт.
392194R1
HEADED PIN,3/4" x 2 3/8"
PIN, 3/4 x 2-3/8 std-hd
2шт.
520175R1
CLIP
PIN, 3/16 quick attachable cot.
2шт.
14
541764R2
AXLE ASSY, transport wheel
1шт.
541769R1
PIN
pointed
1шт.
517843R1
COTTER PIN
PIN, 3/16 quick attachable cot.
1шт.
21715R1
WASHER
29/32 x 1-3/4 x 11 ga znd
1шт.
70120D
SLOTTED NUT,7/8"-14
NUT, 7/8-14 SLT hex.
1шт.
15
465496R11
HUB
ASSY, 6-bolt transport wheel
1шт.
16
663558R1
BEARING CUP
BEARING, wheel hub inner cup
1шт.
17
663557R91
BEARING ASSY,1.625" ID x 2.892" OD x 0.77"
BEARING ASSY, wheel hub inner cone
1шт.
20
663906R1
CAP
hub
1шт.
21
654674R91
OIL SEAL
wheel hub oil
1шт.
22
654675R1
RING
1шт.
23
493987R2
PLATE
ASSY, transport
1шт.
493990R2
PIN
3/4 x 6 pointed
2шт.
517843R1
COTTER PIN
PIN, 3/16 quick attachable cot.
2шт.
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
Hex, 3/4"-10 x 2-1/2", G5
1шт.
271776
BOLT,Hex, 3/4" - 10 x 3 1/4", Gr 5
SCREW, 3/4-10 x 3-1/4 znd hex-hd cap
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
4шт.
24
493985R1
TUBE
ASSY, hitch
1шт.
66584D
FITTING
3/16 STR drive type lub
1шт.
25
493991R1
BRACKET
ASSY, pivot
1шт.
483587R1
WASHER
pivot
2шт.
392194R1
HEADED PIN,3/4" x 2 3/8"
PIN, 3/4 x 2-3/8 std-hd
1шт.
520175R1
CLIP
PIN, 3/16 quick attachable cot.
1шт.
26
493994R1
STAND
ASSY, support
1шт.
21947R1
HEADED PIN,3/4" x 2 5/8"
PIN, 3/4 x 2-5/8 C-Z std-hd
1шт.
520175R1
CLIP
PIN, 3/16 quick attachable cot.
1шт.
27
541746R1
ARM
ASSY
2шт.
28
541770R1
TUBE, 1 used with assist and transport wheels, 2 used w/assist wheels and without transport wheels
1шт.
543441R1
SPACER, tube, 2 per tube
1шт.
21400R1
BOLT,Hex, 3/4" - 10 x 7 1/2", Gr 5
SCREW, 3/4-10 x 7-1/2 znd hex-hd cap, 2 per tube
1шт.
21702R1
BOLT,Hex, 3/4" - 10 x 8 1/2", Gr 5
SCREW, 3/4-10 x 8-1/2 znd hex-hd cap, 2 per tube
1шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4", 1 per screw
1шт.
29
541771R1
PLATE, LH, 1 used with assist and transport wheels, 2 used w/assist wheels and without transport wheels
1шт.
29
541772R1
PLATE
RH, 1 used with assist and transport wheels, 2 used w/assist wheels and without transport wheels
1шт.
271748
SNAP RING
SCREW, 5/8-11 x 1-3/4 znd hex-hd cap
1шт.
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
30
541740R1
ANGLE, assist wheel LH
2шт.
30
541741R1
ANGLE, assist wheel RH
2шт.
31
541742R1
BOLT,U, 1" - 8 x 7.84"
U-BOLT, 2 per angle
1шт.
21929R1
NUT,1"-8, G8
1-8 znd hex., 2 per u-bolt
1шт.
32
541773R1
SUPPORT
PLATE, cylinder anchor LH, 1 used with assist and transport wheels, 2 used w/assist wheels and without transport wheels
1шт.
32
541774R1
PLATE, cylinder anchor RH, 1 used with assist and transport wheels, 2 used w/assist wheels and without transport wheels
1шт.
19959R1
BOLT,Hex, 3/4" - 10 x 7", Gr 5
SCREW, 3/4-10 x 7 znd hex-hd cap
2шт.
87340
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
WASHER, LOCK, 3/4"
2шт.
33
583346R1
BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L
bronze, used w/tube assy, 541736R2
2шт.
34
86504104
LUBE NIPPLE,1/4" x .56" lg, Drive
FITTING, 1/4 STR drive type lub, used w/tube assy, 541736R2
1шт.
35
515030R1
CLAMP
hose
4шт.
18422R1
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2
BOLT, 3/8 x 1-3/4 znd sq-nk crg
4шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
36
541780R1
ANGLE
SUPPORT, hose
4шт.
Выбрано товаров: 103
