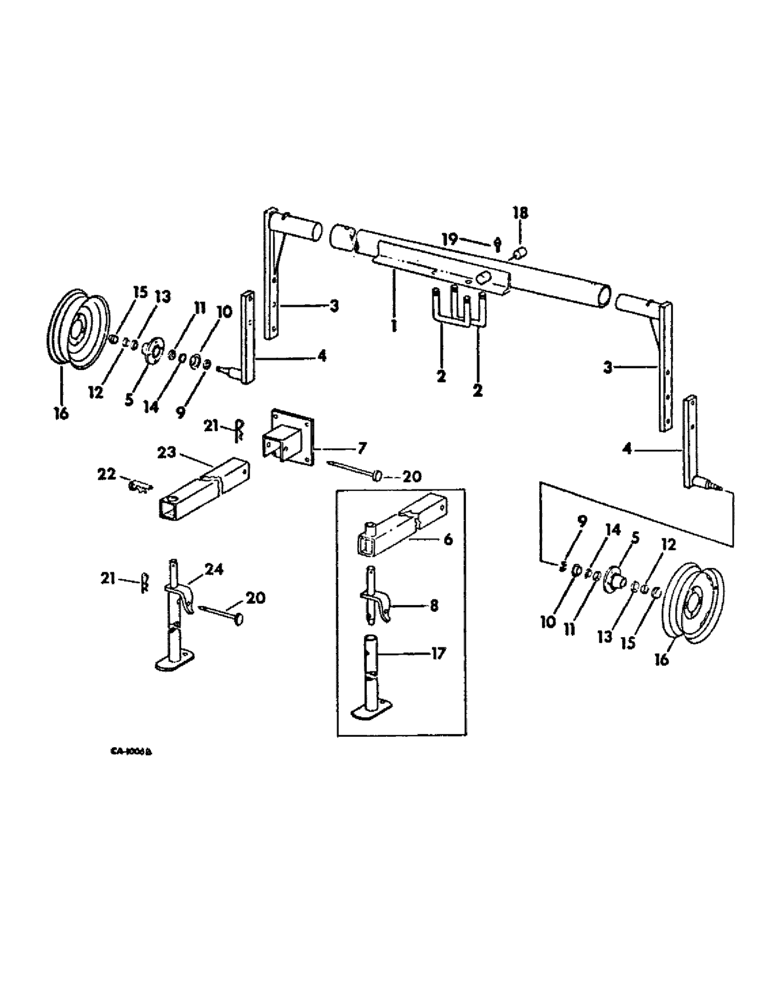

Запчасти Case IH 92 (D-46) - STAND AND TRANSPORT ATTACHMENT, 6 ROW WIDE AND 8 ROW

1

541796R2

TUBE ASSY, transport

1шт.

2

541636R1

BOLT,U, 7/8" - 9 x 7.64"

U-BOLT

2шт.

23831R1

NUT,7/8"-9, G8

7/8-9 C-Z hex. type 8

4шт.

3

541800R1

AXLE

ASSY, wheel transport tube

2шт.

4

541802R1

AXLE

ASSY, wheel

2шт.

280954

NUT,3/4"-10, G5

4шт.

271777

KNOB,Hex, 3/4" - 10 x 3 1/2", Gr 5

SCREW, 3/4-10 x 3-1/2 znd hex-hd cap

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

486220R1

PIN

transport tube pointed

2шт.

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot., 3-1/2 in. long

2шт.

5

472220R21

HUB

w/SCREW, 443804, wheel

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, 1/4-28 NF STR lub

2шт.

443804

SCREW, 1/4-28 x 1/4 C-Z STL ov-pt hdls set

2шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

25/32 x 1-1/4 x 11 ga C-Z

2шт.

69442D

NUT

3/4-16 SLT hex. jam

2шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

6

493985R1

TUBE

ASSY, hitch, serial no. 1980 and below

1шт.

7

493987R2

PLATE

ASSY, transport

1шт.

280954

NUT,3/4"-10, G5

3шт.

80280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

SCREW, 3/4-10 x 2-3/4 znd hex-hd cap

2шт.

87337

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

3шт.

483587R1

WASHER

pivot, serial no. 1980 and below

2шт.

8

493991R1

BRACKET

ASSY, hitch pivot, serial no. 1980 and below

1шт.

66584D

FITTING

3/16 drive type STR lub

1шт.

137323

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

1шт.

9

472221R91

SEAL,39.57mm ID x 58.6mm OD x 7.37mm Thk

wheel hub oil

2шт.

10

472222R1

SLEEVE

oil seal wear

2шт.

11

651817R1

BEARING CUP

BEARING, inner cup

2шт.

12

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

BEARING ASSY, outer cone

2шт.

12

651815R91GV

BEARING CONE

Value, Cone Bearing

2шт.

13

651814R1

BEARING CUP

BEARING, outer cup

2шт.

14

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING ASSY, wheel hub inner cone

2шт.

15

651194R1

CAP

wheel brg hub

2шт.

16

463036R1

WHEEL (STEERING)

WHEEL ASSY, 14 in. x 5J, recommended tire size 8.50 x 14, 8.00 x 14, 7.50 x 14 or 7.00 x 14

2шт.

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

wheel

8шт.

17

493994R1

STAND

ASSY, support, serial no. and below

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 C-Z std-hd

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot., 2-7/8 in. long

1шт.

18

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

transport tube

2шт.

19

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 STR drive type lub

1шт.

20

493990R2

PIN

3/4 x 6.3 in. pointed

2шт.

21

517843R1

COTTER PIN

PIN, 3/16 quick attachable cot., 3-1/2 in. long

2шт.

22

473865R91

LINCH PIN

PIN ASSY, quick attachable cot., serial no. 1981 and above

1шт.

23

125832C1

TUBE ASSY, hitch, serial no. 1981 and above

1шт.

24

125830C1

STAND

ASSY, support, serial no. 1981 and above

1шт.

21947R1

HEADED PIN,3/4" x 2 5/8"

PIN, 3/4 x 2-5/8 C-Z std-hd

1шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot., 2-7/8 in. long

1шт.
