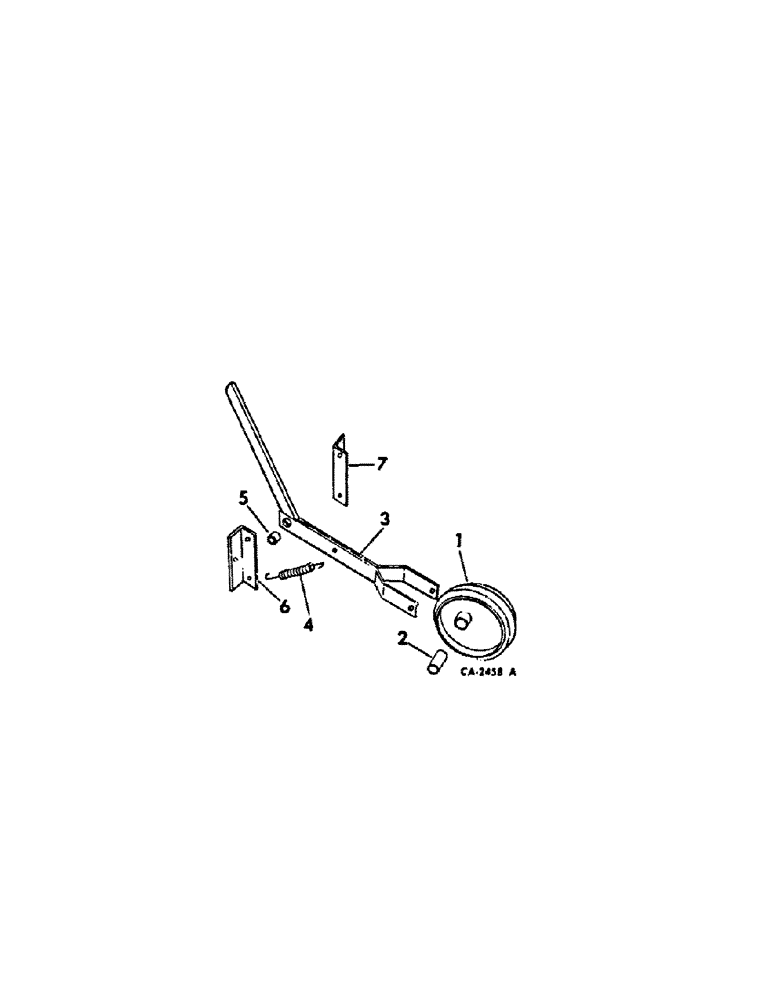

Запчасти Case IH 92 (D-45[A]) - DRUM MONITOR ATTACHMENT

1

549601R1

PRESS

WHEEL

1шт.

18785R1

BOLT,Hex, 3/8"-16 x 3", G2

3/8 x 3 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

2

549602R1

BUSHING

1шт.

3

58185C1

ARM

wheel

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 znd hex-hd mach

2шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

4

543743R2

SPRING

1шт.

5

549605R1

BUSHING

pivot

1шт.

6

549606R1

ANGLE

LH

1шт.

7

549607R1

ANGLE

RH

1шт.
