Запчасти Case IH 92 (D-40) - HYDRAULIC CYLINDER, UPPER LINK, 3 X 8 IN. DOUBLE ACTING, FOR USE WITH ASSIST AND TRANSPORT WHEELS

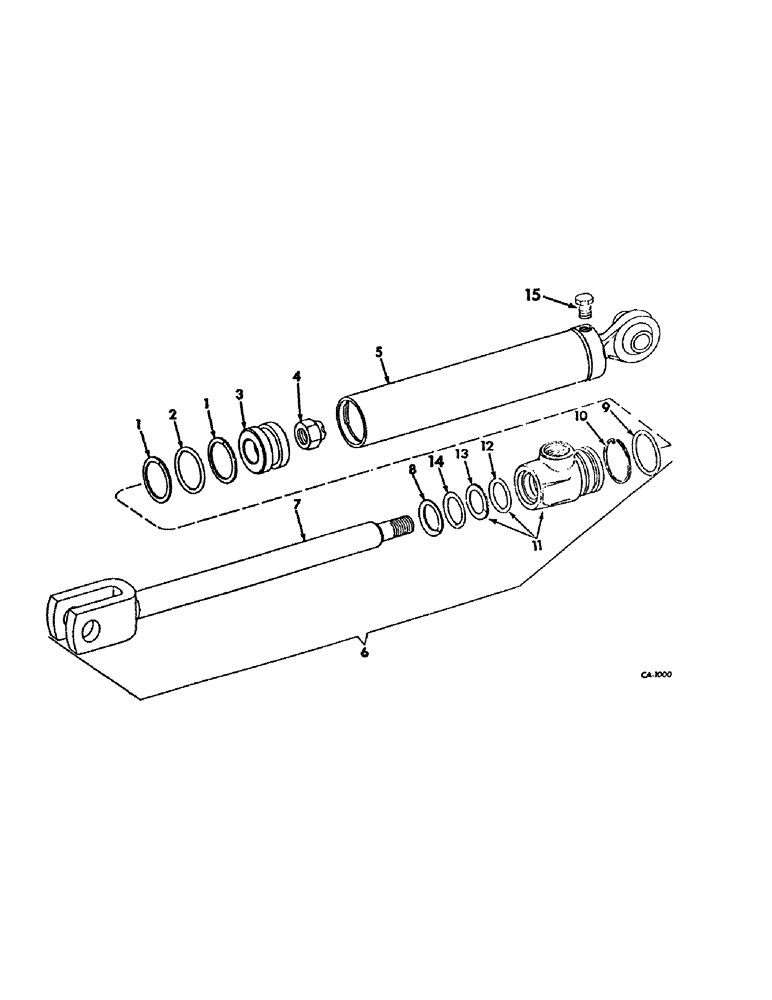

Схема запчастей Case IH 92 - (D-40) - HYDRAULIC CYLINDER, UPPER LINK, 3 X 8 IN. DOUBLE ACTING, FOR USE WITH ASSIST AND TRANSPORT WHEELS
15
3
1
6
8
5
13
4
2
11
10
12
1
9
7
14

Артикул

Название

Примечание

Количество

1

WASHER, piston head back-up, order kit, 386687R93 (NSS)

2шт.

2

O-RING, 2-5/8 x 3 x 3/16, piston head, order kit, 386687R93 (NSS)

1шт.

3

381870R1

PISTON

HEAD, piston

1шт.

4

9412368

NUT

3/4-NF PHC p/t lock type 8

1шт.

5

530410R1

BODY ASSY, cylinder

1шт.

6

530259R92

CYLINDER ASSY, 3 x 8 in. hydraulic

1шт.

7

531275R1

ROD

ASSY, piston

1шт.

8

RETAINER, cylinder head seal, order kit, 386687R93 (NSS)

1шт.

9

O-RING, 2-3/4 x 3 x 1/8, rod end head, order kit, 386687R93 (NSS)

1шт.

10

RING, retaining, order kit, 386687R93 (NSS)

1шт.

11

381805R11

HEAD

ASSY, rod end

1шт.

12

RING, hydraulic cylinder gland, order kit, 386687R93 (NSS)

1шт.

13

WASHER, hyd cylinder gland back-up, order kit, 386687R93 (NSS)

1шт.

14

SEAL, piston rod dust, order kit, 386687R93 (NSS)

1шт.

15

530414R1

PLUG ASSY, breather

1шт.

386687R93

SEAL KIT

hydraulic cylinder o-ring service, consists of ref nos 1, 2, 8, 9, 10, 12, 13 and 14

1шт.

Выбрано товаров: 16
