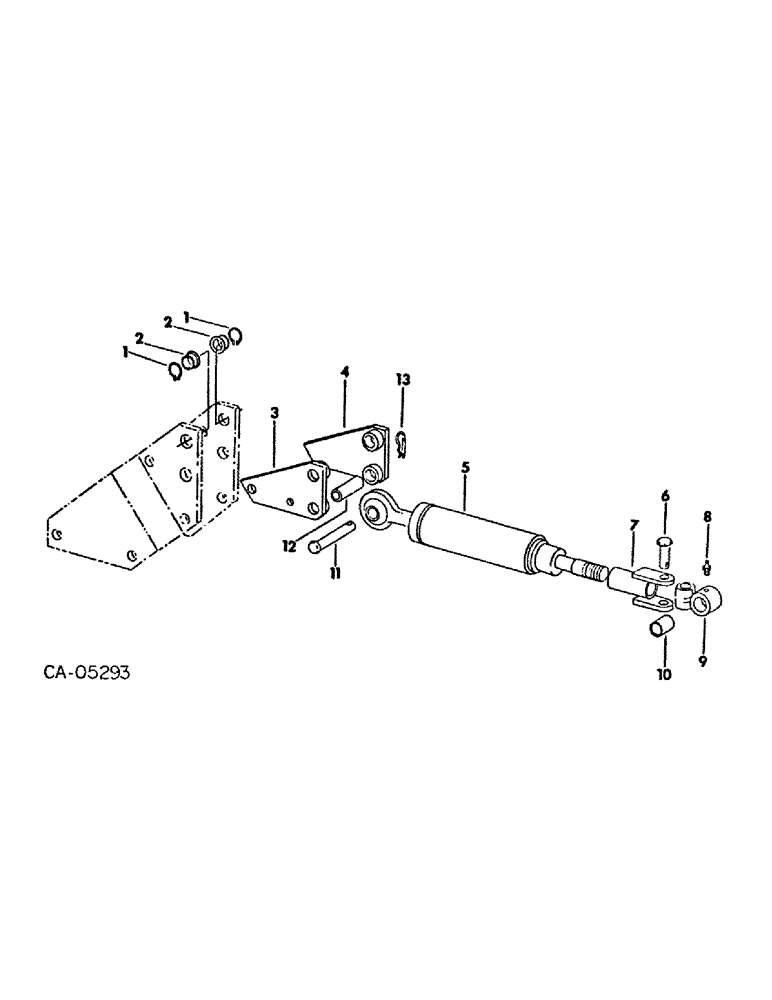

Запчасти Case IH 92 (D-39) - HYDRAULIC UPPER LINK CYLINDER AND CONNECTIONS, FOR ASSIST & TRANSPORT WHEELS

1

152450R1

SNAP RING,#125, Ext

Ring, Snap, , mast bushing #125, Ext

2шт.

2

541781R1

BUSHING

mast

2шт.

3

547235R1

PLATE ASSY, upper link adapter LH

1шт.

4

547234R1

PLATE ASSY, upper link adapter RH

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 znd hex.

1шт.

280954

NUT,3/4"-10, G5

1шт.

271734

ROTOR,Hex, 5/8" - 11 x 4 3/4", Gr 5

SCREW, 5/8-11 x 4-3/4 znd hex-hd cap

1шт.

271783

CAGE,Hex, 3/4" - 10 x 5", Gr 5

SCREW, 3/4-10 x 5 znd hex-hd cap

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

5

530259R92

CYLINDER ASSY, 3 x 8 in. hydraulic upper link, for components see list of parts under details of upper link hydraulic cylinder

1шт.

6

23290R1

HEADED PIN,1" x 3 1/2"

PIN, 1 x 3-1/2 C-Z std-hd

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

7

541775R1

YOKE

SLEEVE ASSY, upper link

1шт.

21996R1

LOCK PIN,1/4" x 1 3/8", Slotted

Pin, 1/4" x 1 3/8", Slotted

1шт.

8

66584D

FITTING

3/16 STR drive type lub

1шт.

9

541778R1

TRUNNION

1шт.

10

541779R1

BUSHING, trunnion

1шт.

11

22064R1

PIN

1 x 4-1/2 znd std-hd

1шт.

12

547238R1

SPACER

mast

1шт.

13

473865R91

LINCH PIN

PIN ASSY, depth stop

1шт.
