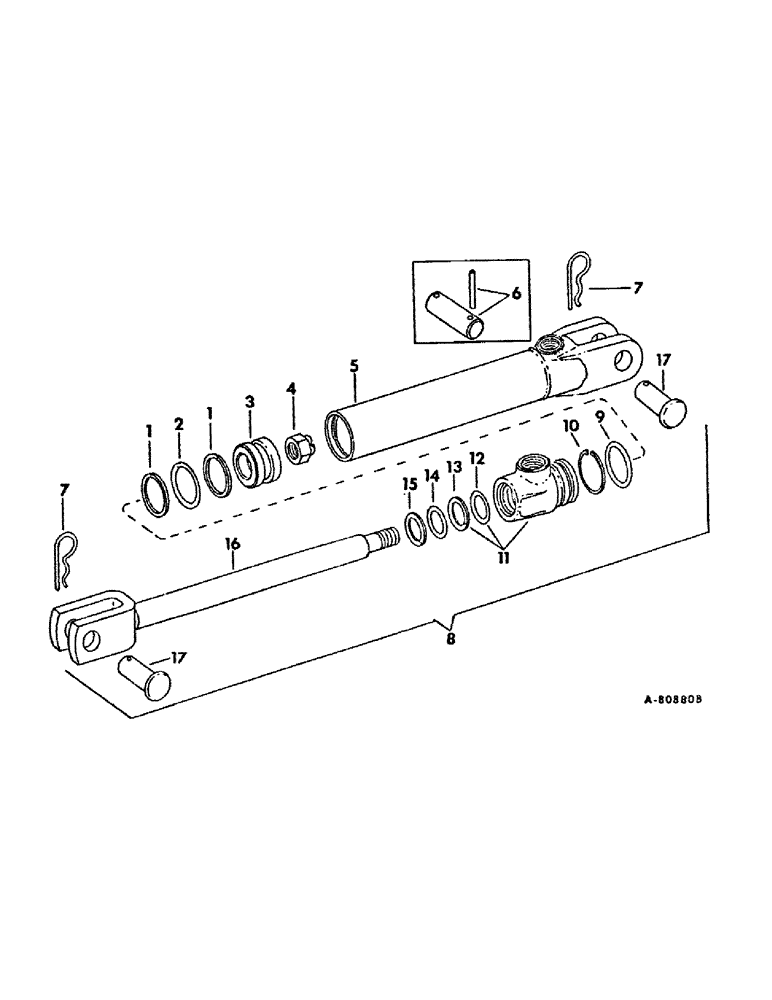

Запчасти Case IH 92 (D-38) - HYDRAULIC CYLINDER, 3 X 8 IN. DOUBLE ACTING

1

WASHER, piston head backup, order kit, 386687R93 (NSS)

2шт.

2

O-RING, 2-5/8 x 3 x 3/16, piston head, order kit, 386687R93 (NSS)

1шт.

3

381870R1

PISTON

HEAD, piston

1шт.

4

385020R1

NUT

3/4-16 hex. lock

1шт.

5

381861R92

HYD TUBE,14.74" Length

TUBE ASSY, cylinder

1шт.

6

(Not used in this application)

1шт.

7

520175R1

CLIP

PIN, quick attachable cotter

2шт.

8

73660C92

CYLINDER ASSY.

CYLINDER ASSY, 3 x 8 in. double acting hydraulic, replaces 381854R93

1шт.

9

O-RING, 2-3/4 x 3 x 1/8, rod end head, order kit, 386687R93 (NSS)

1шт.

10

RING, retaining, order kit, 386687R93 (NSS)

1шт.

11

381805R21

HEAD

ASSY, rod end

1шт.

12

RING, cylinder head, order kit, 386687R93 (NSS)

1шт.

13

WASHER, cylinder head back-up, order kit, 386687R93 (NSS)

1шт.

14

SEAL, piston rod dust, order kit, 386687R93 (NSS)

1шт.

15

RETAINER, cylinder head seal, order kit, 386687R93 (NSS)

1шт.

16

73763C1

ROD ASSY.

ROD ASSY, piston, replaces 381842R91

1шт.

17

580714R1

HEADED PIN,1" x 2 3/4"

PIN, 1 in. x 2-3/4 headed

2шт.

386687R93

SEAL KIT

hydraulic cylinder o-ring service, consists of ref nos 1, 2, 9, 10, 12, 13, 14 and 15

1шт.
