Запчасти Case IH 92 (D-37) - HYDRAULIC CYLINDER, 2 X 8 IN. SINGLE ACTING

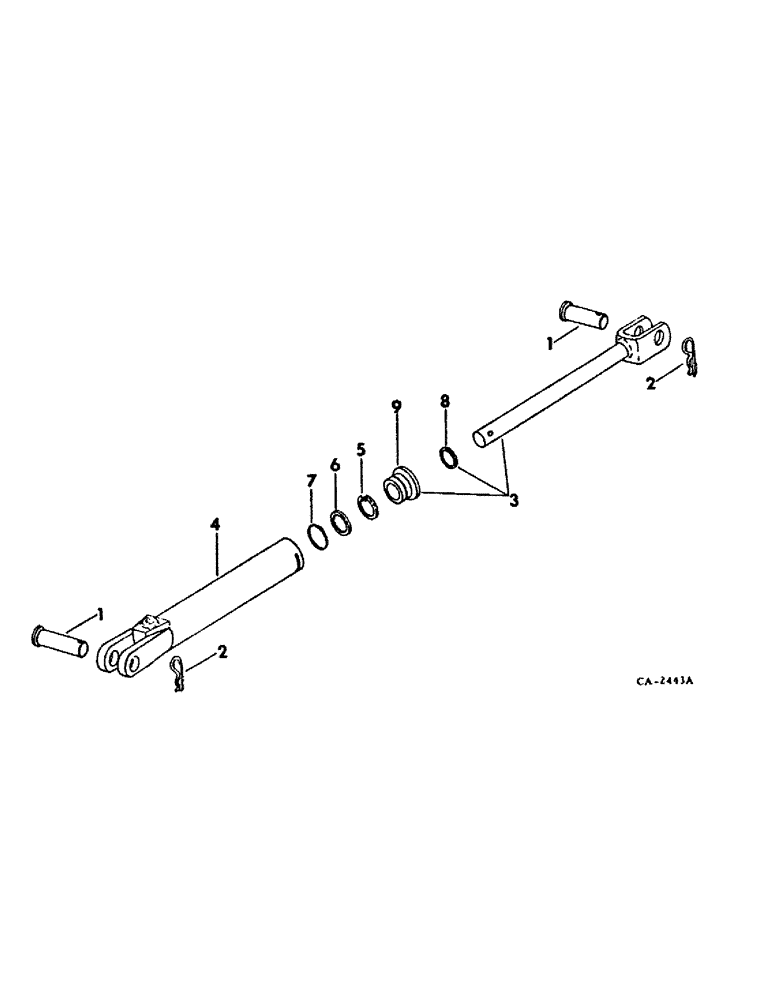

Схема запчастей Case IH 92 - (D-37) - HYDRAULIC CYLINDER, 2 X 8 IN. SINGLE ACTING
6
9
8
1
7
2
5
3
4
1
2

Артикул

Название

Примечание

Количество

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91

1шт.

1

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 x 2-7/16 znd std-hd, not included in cylinder assy

2шт.

2

520175R1

CLIP

PIN, 3/16 x 1-1/8 quick attachable cot., not included in cylinder assy

2шт.

3

64602C91

PISTON

ASSY, cylinder, includes ref nos 8 and 9

1шт.

4

548242R1

TUBE

BODY ASSY, cylinder

1шт.

5

RING, retaining, (not serviced separately) order package, 461181R92

1шт.

6

WASHER, back-up, (not serviced separately) order package, 461181R92

1шт.

7

O-RING, 1-5/8 x 2 x 3/16, piston, (not serviced separately) order package, 461181R92

1шт.

8

57679C1

SEAL

WIPER, rod

1шт.

9

57678C1

END ASSY.

END, cylinder

1шт.

461181R92

SEAL KIT

PACKAGE, hyd cylinder o-ring service, consists of ref nos 5, 6 & 7

1шт.

Выбрано товаров: 11
