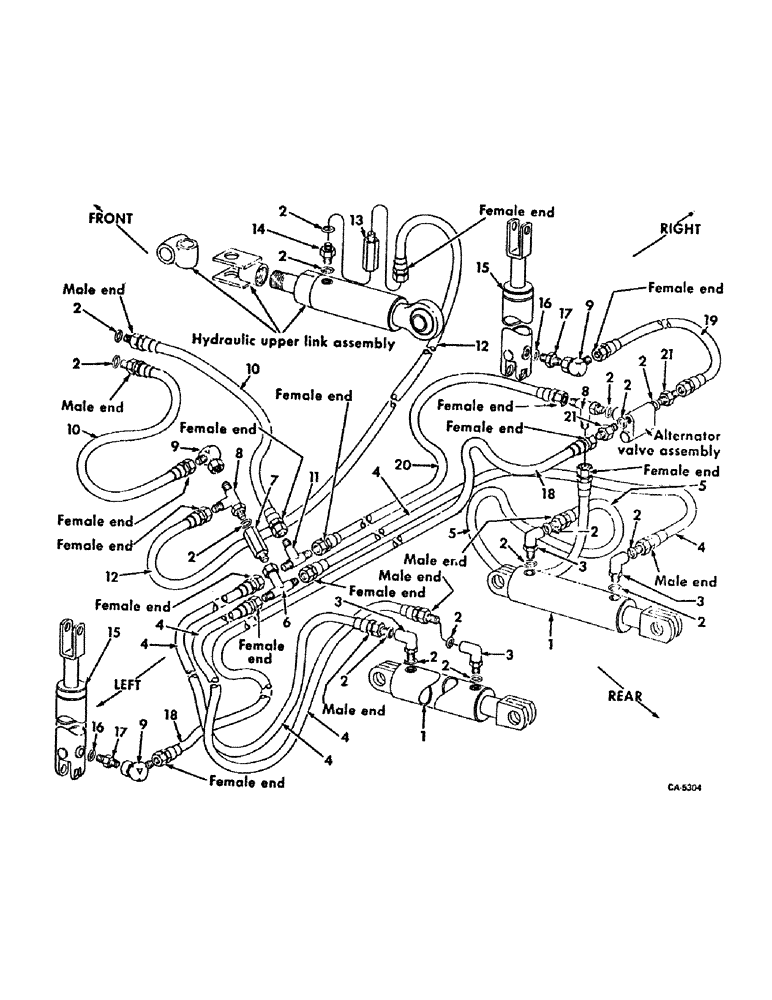

Запчасти Case IH 92 (D-33) - HYDRAULIC CONNECTIONS, PLANTERS W/MARKER ATTACHMENT AND ASSIST WHEELS, 6 ROW WIDE & 8 ROW

1

73660C92

CYLINDER ASSY.

CYLINDER ASSY, 3 x 8 in. double acting hydraulic, replaces 381854R93, for components see list of parts under details of hyd cylinder

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

18шт.

3

371357R91

ELBOW

7/8-14 90 deg adjustable

4шт.

4

953468R91

HOSE

ASSY, 1/2 ID x 122 in. hydraulic, 3 for 6 row wide & 8 row wide

1шт.

4

100581C1

HOSE ASSY, 1/2 ID x 134 in. hydraulic, 3 for 8 row narrow

1шт.

5

56148C1

HOSE ASSY, 1/2 ID x 40 in. hydraulic

1шт.

6

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 C-Z 37 deg hyd flared tube swivel

1шт.

7

100580C91

VALVE ASSY, drop retarding, .089-.094 dia hole in washer

1шт.

8

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 C-Z 37 deg hyd flared tube adj STR THD 90 deg

2шт.

9

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg hyd flared tube 90 deg swivel

3шт.

10

541629R1

HOSE

ASSY, 1/2 ID x 46 in. hydraulic

2шт.

11

9402983

TEE,7/8"-14, 37 Degree

7/8-14 C-Z 37 deg hyd F3A9&D tube three way

1шт.

12

178789H1

HOSE ASSY, 1/2 ID x 28 in. hydraulic

1шт.

13

493960R91

VALVE

ASSY, drop retarding, .044-.049 dia hole in washer

1шт.

14

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

1шт.

15

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 in. x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

17

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

REDUCER, 5/8 x 3/8 C-Z 37 deg flared tube

2шт.

18

100567C1

HOSE ASSY, 1/2 ID x 210 in. hydraulic, 6 row wide

1шт.

18

100582C1

HOSE ASSY, 1/2 ID x 230 in. hydraulic, 8 row narrow

1шт.

18

58767C1

HOSE

ASSY, 1/2 ID x 242 in. hydraulic, 8 row wide

1шт.

19

150876H1

HYDRAULIC HOSE,0.50" ID x 52.00", SAE 100R1

Assy, 6 row wide 0.50" ID x 52.00", SAE 100R1

1шт.

19

56148C1

HOSE ASSY, 1/2 ID x 40 in. hydraulic, 8 row narrow

1шт.

19

58153C1

HYDRAULIC HOSE,12.70 mm ID x 2160.00 mm, Class 7

12.70 mm ID x 2160.00 mm, 8 row wide

1шт.

20

58766C1

HYDRAULIC HOSE,0.50" ID x 95.00", Class 7

HOSE ASSY, 1/2 ID x 95 in. hydraulic, 6 row wide and 8 row wide

1шт.

20

58141C1

HOSE,0.50" ID x 105.00", SAE Class 7

- Hydraulic, 8 row narrow 0.50" ID x 105.00", SAE Class 7

1шт.

21

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

2шт.

543261R1

SCREW

ASSY, cylinder thumb

2шт.
