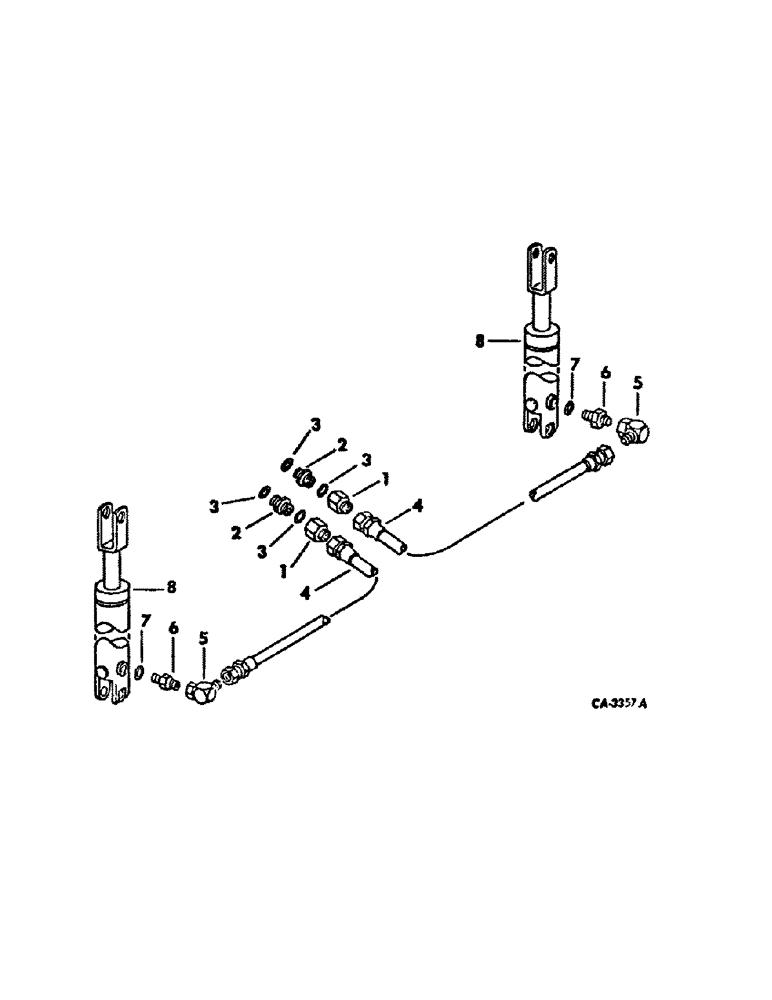

Запчасти Case IH 92 (D-32) - HYDRAULIC CONNECTIONS, PLANTERS WITH MARKER ATTACHMENT AND WITHOUT ASSIST WHEEL

1

493960R91

VALVE

ASSY, drop retarding

2шт.

546844R1

WASHER

valve

2шт.

103575

PIN,#1 x 1 1/4", Tapered

no. 1 x 1-1/4 taper

2шт.

2

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 C-Z 37 deg hyd flared tube short swivel

2шт.

3

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

4шт.

4

541631R1

HOSE ASSY.

HOSE ASSY, 1/2 ID x 140 in. hydraulic, 2 for 4 row and 6 row narrow

1шт.

4

58140C1

HOSE ASSY.

HOSE ASSY, 1/2 ID x 160 in. hydraulic, 2 for 6 row wide

1шт.

4

541630R1

HOSE ASSY, 1/2 ID x 170 in. hydraulic, 2 for 8 row narrow

1шт.

4

58022C1

HOSE ASSY, 1/2 ID x 195 in. hydraulic, 2 for 8 row wide

1шт.

5

9410282

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

7/8-14 C-Z 37 deg hyd flared tube 90 deg swivel

2шт.

6

26210R1

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

REDUCER, 5/8 x 3/8 37 deg flared tube

2шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

8

548207R93

CYLINDER ASSY.

CYLINDER ASSY, 2 x 8 in. single acting hydraulic, order cylinder assy, 145622C91, for components see list of parts under details of hyd cylinder

2шт.

22964R1

HEADED PIN,1" x 2 7/16"

PIN, 1 in. x 2-7/16 znd std-hd

4шт.

520175R1

CLIP

PIN, 3/16 quick attachable cot.

4шт.
