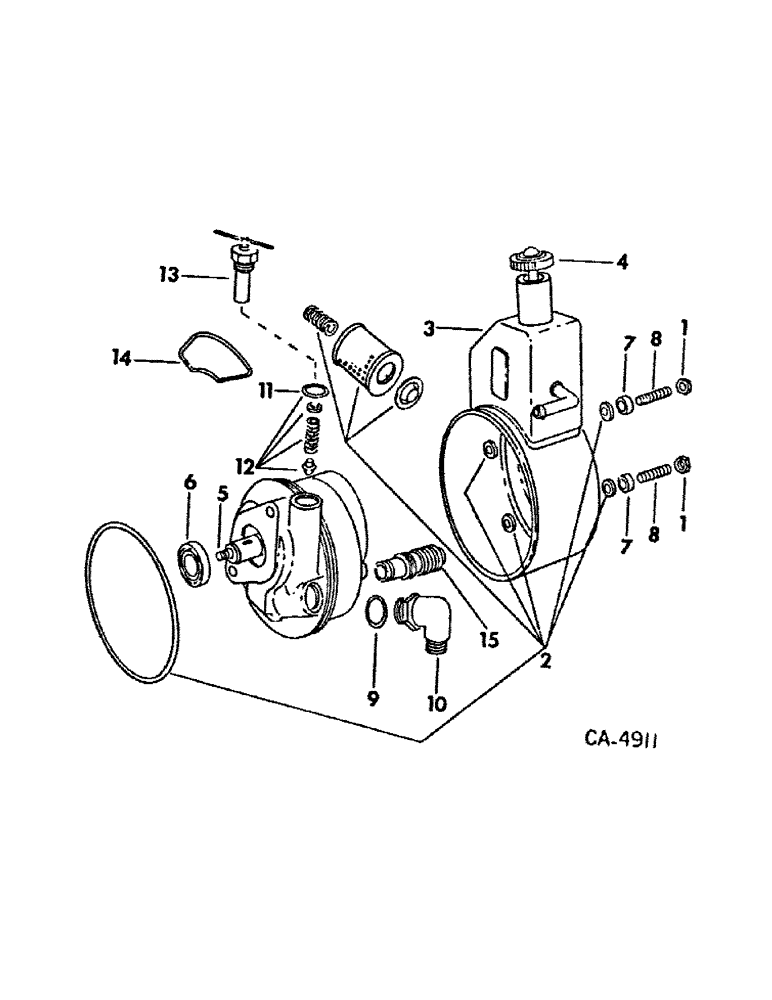

Запчасти Case IH 92 (D-31) - HYDRAULIC PUMP, 1000 RPM PTO

*

149368C91

PUMP

ASSY, hydraulic 8.0 GPM 1000 RPM PTO w/caution product graphic 145167C1

1шт.

*

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149368C91

1шт.

*

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

reservoir lock

2шт.

2

507809C91

FILTER, ENGINE OIL

KIT, hydraulic pump filter

1шт.

3

149373C91

RESERVOIR

w/PRODUCT GRAPHIC, 145167C1

1шт.

3

1986017C1R

REMAN-HYD PUMP

Reman for New P/N 149373C91

1шт.

3

1986017C1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

145167C1

DECAL

PRODUCT GRAPHIC, caution

1шт.

4

467536C91

CAP

w/GAGE ASSY, filler

1шт.

5

62226C1

SHAFT

pump

1шт.

*

62385C1

RING

shaft snap

2шт.

6

177431R1

SEAL, oil, replaces 586201R91

1шт.

7

58598C1

SPACER

reservoir

2шт.

8

58597C1

STUD

reservoir

2шт.

9

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

10

9410977

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

3/4-16 C-Z 37 deg hyd flared tube adj STR THD 90 deg

1шт.

11

62227C1

O-RING,0.755" ID x 0.949" OD x 0.097" Width

O-RING, throttle valve stem

1шт.

12

62230C1

KIT

throttle valve

1шт.

13

62229C2

KIT

throttle valve stem

1шт.

Item 13 on page D-13 - Service bulletin S-3942 refers to a new pto pump assembly, #134019c91 and the relief setting in the pump is 2350 psi max. @1000 rpm. CR 5/04/99 TSG

1шт.

14

62384C1

KIT

O-RING

4шт.

15

62414C1

VALVE

pressure relief

1шт.

*

479187C92

PACKAGE

KIT, hydraulic pump gasket service, consists of

1шт.

*

O-RING, (NSS)

1шт.

*

O-RING, (NSS)

1шт.

*

507793C1

GASKET

O-RING

1шт.

*

O-RING, (NSS)

4шт.

*

507811C1

GASKET

O-RING

1шт.

*

OIL SEAL, (NSS)

1шт.

*

SEALING WASHER, (NSS)

2шт.

*

FILTER, (NSS)

1шт.

*

O-RING, (old style) (NSS)

4шт.

*

507792C1

NUT

FLANGED NUT

2шт.

*

INSTRUCTIONS, (NSS)

1шт.
