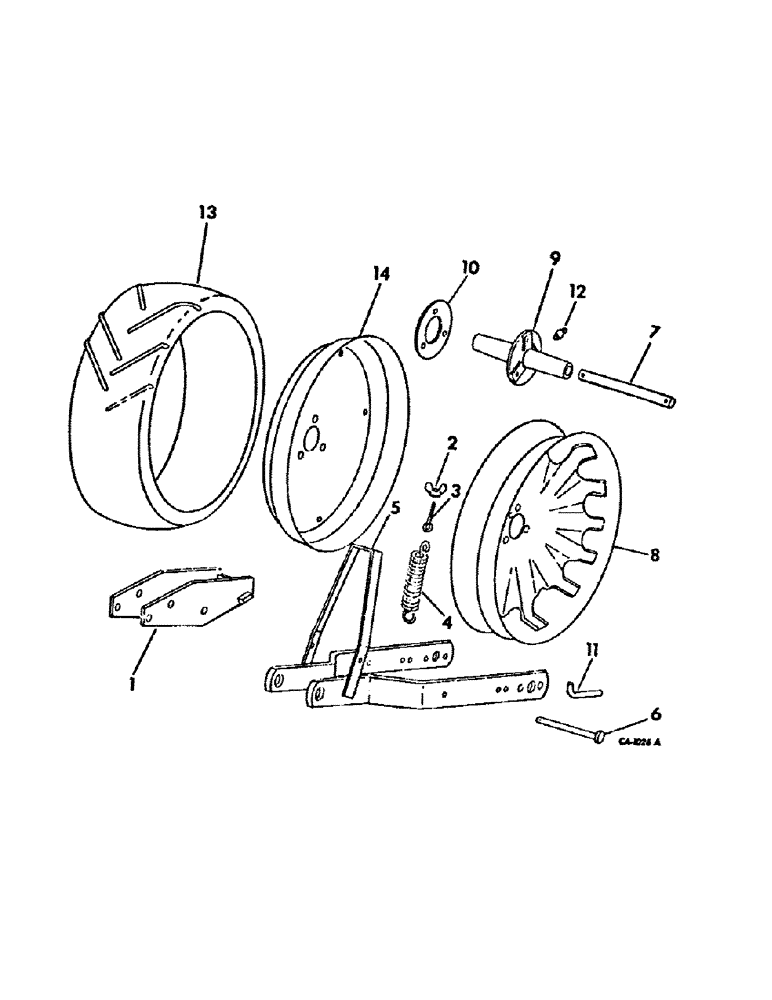

Запчасти Case IH 92 (D-26) - PRESS WHEEL AND FRAME, QUANTITIES SHOWN ARE PER ROW

1

541705R1

PLATE

ASSY, pivot

1шт.

180163

BOLT,Hex, 7/16" - 14 x 3 3/4", Gr 5

SCREW, 7/16-14 x 3-3/4 znd hex-hd cap

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

2

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

1шт.

3

S1070

BOLT

hook

1шт.

4

PO6

SPRING

pressure

1шт.

5

541708R2

FRAME ASSY, press wheel

1шт.

541712R1

BUSHING

press wheel frame

2шт.

18796R1

BOLT,Hex, 7/16"-14 x 1 1/2", G2

7/16-14 x 1-1/2 znd hex-hd mach

2шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga

2шт.

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

6

541713R1

HEADED PIN,1/2" x 5"

PIN, stop

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

461911R1

PIN

AXLE, press wheel

1шт.

8

486609R1

WHEEL

ASSY, press, w/steel tire

1шт.

9

472106R1

HUB

press wheel

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1-1/4 znd hex-hd mach

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

10

464466R1

RETAINER

WASHER, press wheel, w/steel tire

1шт.

11

461912R2

PIN

axle retaining

1шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

1шт.

12

87414

LUBE NIPPLE,1/4" - 28

FITTING, 1/4 taper drive thread lub

1шт.

13

624478R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned

1шт.

13

477311R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned, traction type

1шт.

13

483118R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic crowned, flat tread

1шт.

13

542240R1

TYRE/TIRE

TIRE, 7 x 16 semi-pneumatic dual rib traction tread

1шт.

14

483323R1

DISC, half press wheel 7 x 16

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

6шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16-18 znd flange lock

6шт.
