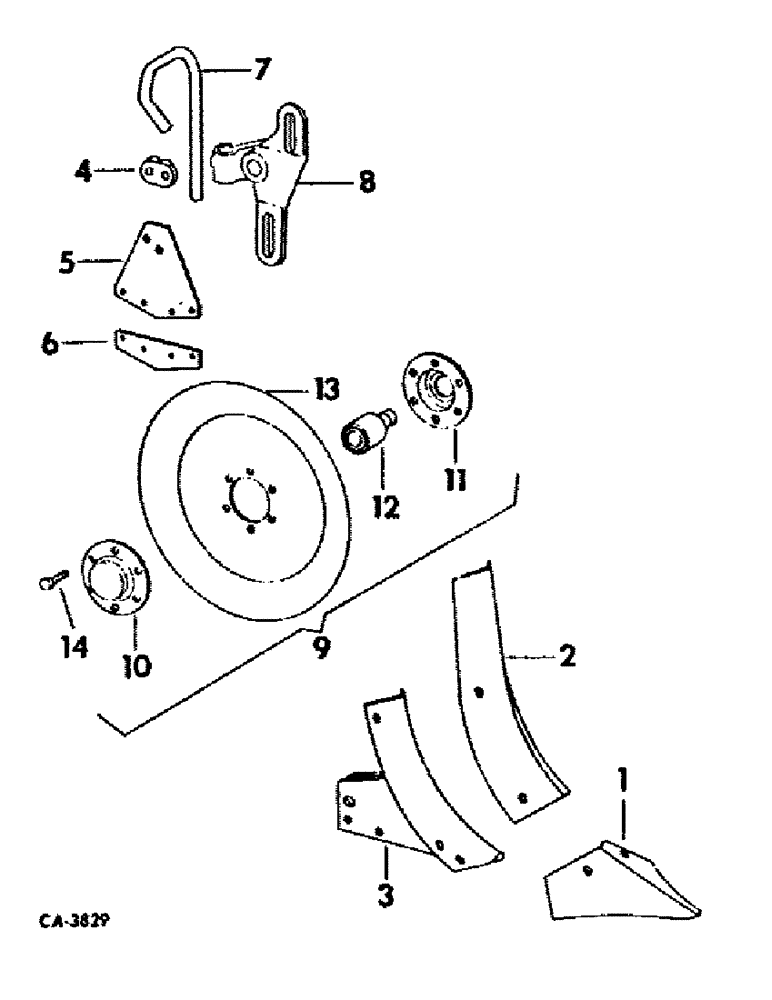

Запчасти Case IH 92 (D-24) - ROTARY MOLDBOARD BOTTOM, NON-ADJUSTABLE ANGLE, QUANTITIES SHOWN ARE PER ROW

1

518437R11

SHARE

ASSY, 10 in. solid

1шт.

23056R1

BOLT, 3/8 x 7/8 znp no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

2

518438R11

SHIN ASSEMBLY

1шт.

23056R1

BOLT, 3/8 x 7/8 znp no. 3 plow

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

3

518439R11

FROG ASSEMBLY

1шт.

4

518432R1

CLAMP

scraper arm

4шт.

5

518441R1

SUPPORT

BLADE, scraper

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT, 3/8 x 2 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

518444R1

PAD

EDGE, scraper

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4 x 3/4 C-Z slt-pan-hd mach

8шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x .065 C-Z

8шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

7

518435R1

ROD

ARM, scraper

2шт.

8

490137R1

BRACKET, disk mounting LH

1шт.

8

490138R1

BRACKET, disk mounting RH

1шт.

22776R1

SCREW, 1/2-13 x 1-1/4 C-Z sq-hd oval pt set

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

2шт.

21228R1

SCREW, 7/16-14 x 3/4 C-Z sq-hd cup

2шт.

18829R1

BOLT

5/8 x 4-1/2 C-Z hex-hd mach

1шт.

19460R1

BOLT, 5/8 x 4-3/4 C-Z hex-hd mach

1шт.

464623R1

WASHER

21/32 x 1-1/2 x 11 ga C-Z

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

9

490139R91

DISC

DISK ASSY

2шт.

10

487081R1

COVER

bearing

2шт.

11

468009R1

RETAINER

FLANGE, bearing

2шт.

12

ST686

BALL BEARING,47.63mm OD x 88.09mm L

BEARING ASSY, ball-double row radial

2шт.

13

490140R1

DISC

DISK

2шт.

14

103487

RIVET, 5/16 x 131/6 but-hd small

12шт.
