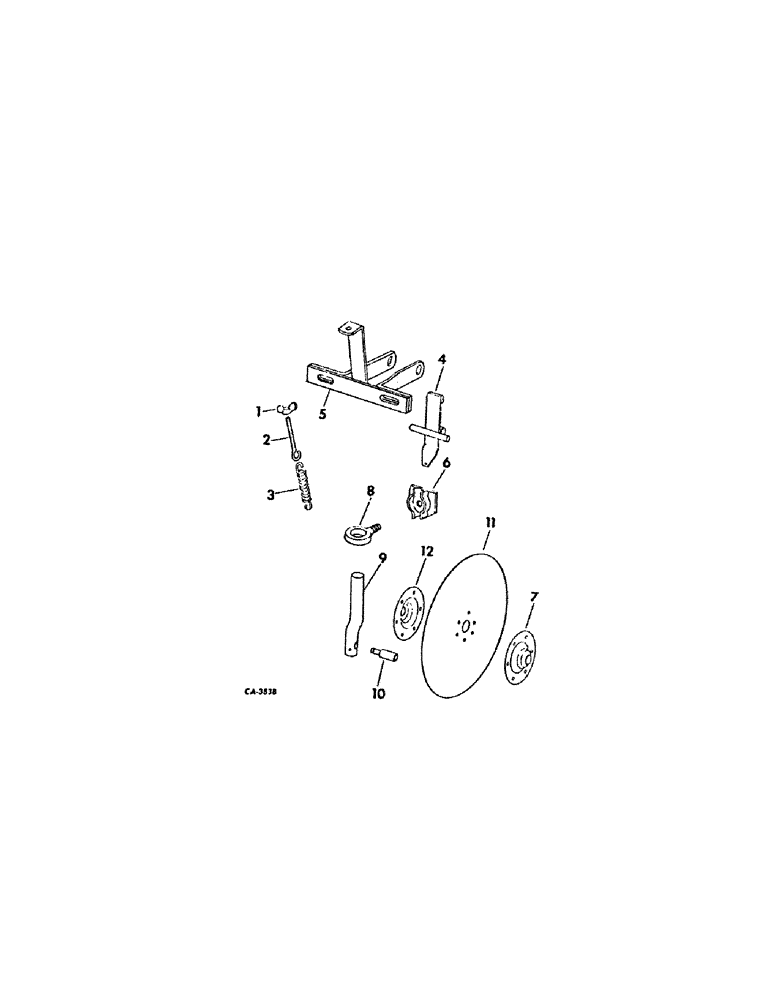

Запчасти Case IH 92 (D-23[B]) - DISK COVERING ATTACHMENT, QUANTITIES SHOWN ARE PER ROW

1

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

1шт.

2

25423B

BOLT,Eye, 5/16" x 2 1/4", RH Thd

hook

1шт.

3

PO91

SPRING

27/32 OD x 5-3/8 in. long, 41-1/2 coils

1шт.

4

PO26193B

REINFORCEMENT

STOP ASSY, covering frame

1шт.

5

517940R91

FRAME

ASSY, covering disk

1шт.

6

PO2942

BRACKET

adjusting

2шт.

7

478036R1

BEARING HOUSING,30.023 mm ID x 69 mm OD x 19.3 mm

disk bearing outer

2шт.

8

PO11454A

BOLT

EYEBOLT, covering disk bearing

2шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex.

2шт.

608081R1

WASHER

21/32 x 1-3/4 x 11 ga C-Z

2шт.

9

541704R1

SUPPORT ASSY.

STANDARD, covering disk

2шт.

22227R1

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW, 3/8-16 x 3/8 zn hex-soc-fil pt set

2шт.

10

526769R91

BALL BEARING,30mm OD x 98.04mm L

BEARING, covering disk

2шт.

480679R1

WASHER

dirt seal felt

2шт.

11

479473R1

DISC

DISK, 11 inch

2шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

SCREW, 5/16-18 x 3/4 znd hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

120376

NUT,5/16"-18, G5

12шт.

12

478035R1

BEARING HOUSING,109 mm OD x 19.3 mm

disk bearing inner

2шт.
