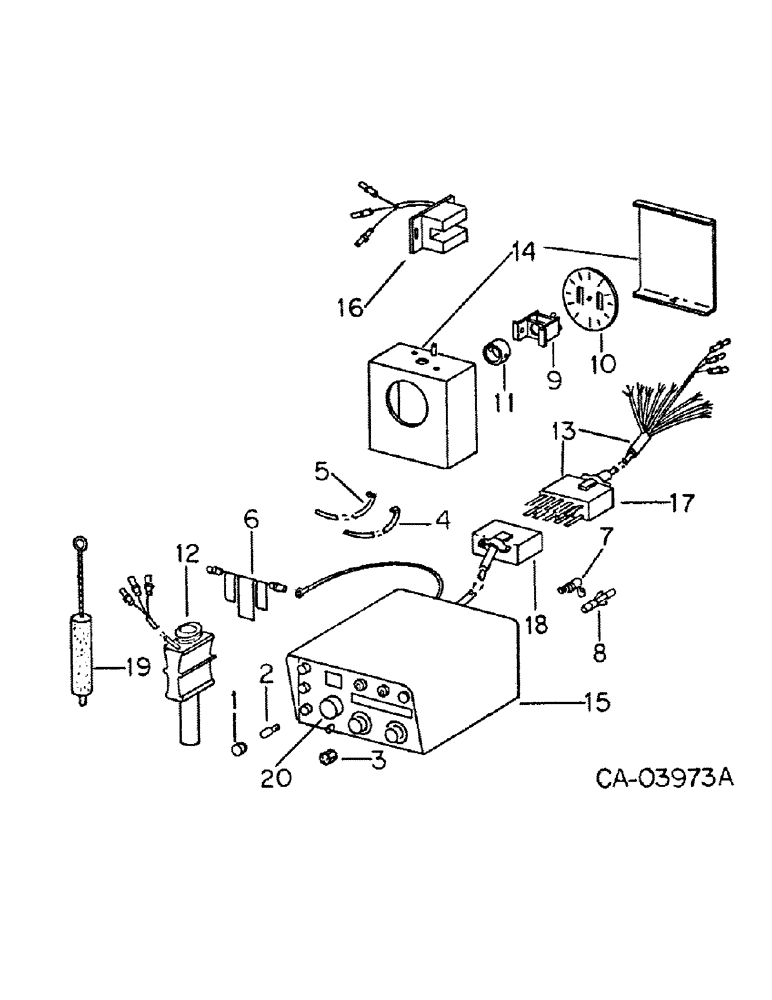

Запчасти Case IH 92 (D-22) - SEED FLOW MONITOR AND CONNECTIONS

1

58499C1

LENS

LENS, amber, 1 used per console

1шт.

2

58554C1

BULB,C2F, #1892, 14V

LAMP, 1 used per console

1шт.

3

106652

FUSE,3 Amp, Type 3AG

FUSE, 3 ampere, 1 used per console

1шт.

4

58555C1

FASTENER

TIE WRAP, 7 in.

1шт.

5

306132C1

CABLE TIE,14.5" L

CABLE STRAP TIE WRAP, 14 in., replaces 58556C1

1шт.

6

58557C1

ELECTRICAL WIRE

WIRE WIRE, shortening

1шт.

7

58558C1

SUPPRESSOR

SUPPRESSOR, spark plug

1шт.

8

58559C1

SUPPRESSOR

SUPPRESSOR, distributor

1шт.

9

58603C1

BRACKET

BRACKET, disk

1шт.

10

DISK, sensor, 6 slot, serviced only as a machine att, 1 per seed hopper

1шт.

10

DISK, sensor, 8 slot, serviced only as a machine att, 1 per seed hopper

1шт.

10

58604C1

DISC

DISK, sensor, 12 slot, 1 per seed hopper

1шт.

10

60655C1

DISC

DISK, sensor, 18 slot, 1 per seed hopper

1шт.

11

59065C1

COLLAR

COLLAR

1шт.

21242R1

HEADED PIN

PIN, 1/4 x 1.75 znd std-hd

1шт.

177923

COTTER PIN

1/8" x 3/4"

1шт.

12

59363C1

SENSOR

SEED SENSOR, used with digital cyclomitor, 1 per seed tube

1шт.

12

61729C1

SENSOR

SEED SENSOR, used with seed flow monitor, 1 per seed tube

1шт.

13

57684C91

HARNESS

HARNESS, planter, 4 row, except double row

1шт.

13

57685C91

HARNESS

HARNESS, planter, 6 row, 2 for 12 & 6 row double row

1шт.

13

57686C91

HARNESS

HARNESS, planter, 8 row, also 4 row double row, 2 for 16 row

1шт.

14

DRUM w/SLOT WHEEL ASSY, pickup, serviced only as a machine att

1шт.

133925C1

SPARE PART PRODUCT GRAPHIC, console panel

1шт.

15

79299C1

CONSOLE

CONSOLE, seed flow monitor, 1 used per seed hopper

1шт.

15

79298C1

REMAN-ELECT MONITOR

Reman Monitor Console, digital cyclomitor monitor, 1 used per seed hopper

1шт.

15

1935001C1

CORE-MONITOR

Return Number

1шт.

15

126420A1R

REMAN-ELECT MONITOR

Reman Monitor Remanufactured Monitor - Seed Flow II

1шт.

15

126420A1C

CORE-MONITOR

Return Number, Monitor

1шт.

133924C1

DECAL

PRODUCT GRAPHIC, console panel

1шт.

16

128815C1

RELAY

RELAY, sensor

1шт.

17

128813C1

CONNECTOR,ELECTRIC

PLUG, male connector socket

1шт.

18

128814C1

SOCKET

SOCKET, female connector

1шт.

19

128817C1

BRUSH, COMMUTATOR

BRUSH BRUSH, seed sensor cleaning

1шт.

20

128816C1

BUZZER

BUZZER, sonalert

1шт.
