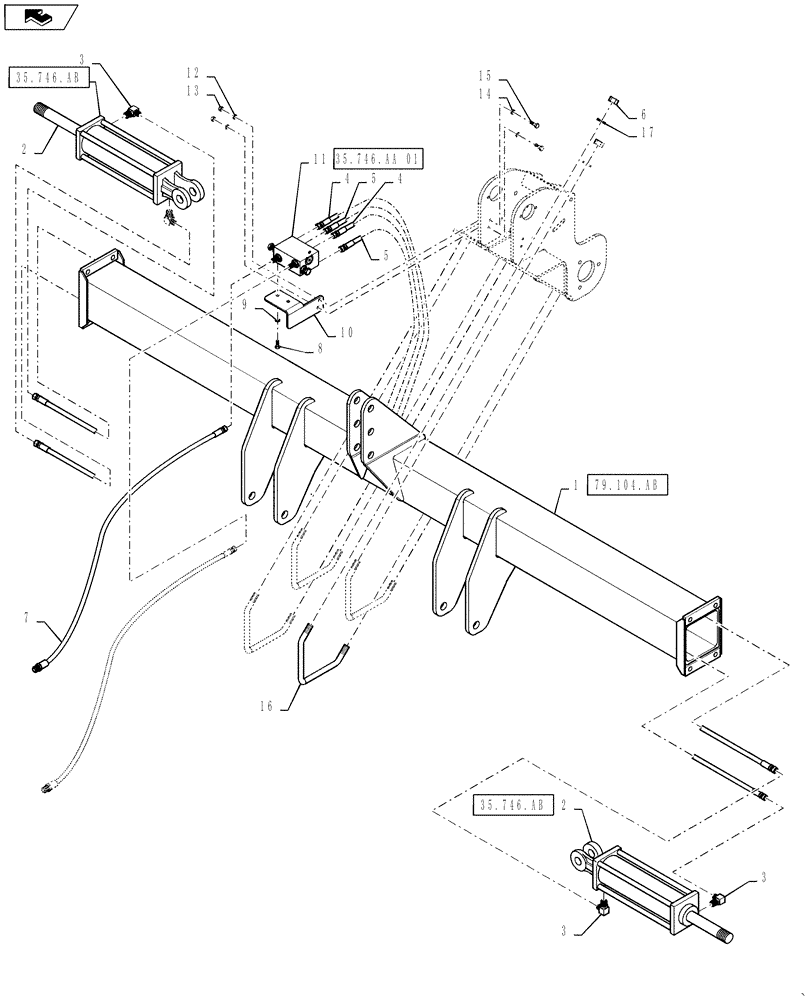

Запчасти Case IH 825 (35.746.AA[01]) - MARKER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

73358270

FRAME

WIDE ROW

1шт.

2

73357900

TIE-ROD

CYL 2.5X10X1.12

2шт.

3

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

4шт.

4

73358280

HYDRAULIC HOSE

2шт.

5

73358280

HYDRAULIC HOSE

2шт.

6

280954

NUT,3/4"-10, G5

8шт.

7

73358425

HYDRAULIC HOSE

2шт.

8

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

10

73357736

MOUNT

SEQUENCE VALVE

1шт.

11

73357901

VALVE

SEQUENCE SHOEMAKER

1шт.

12

1369

NUT,1/4"-20, G5

2шт.

13

80682

LOCK WASHER,1/4"

2шт.

14

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

15

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

2шт.

16

73358600

U-BOLT

4шт.

17

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

8шт.
