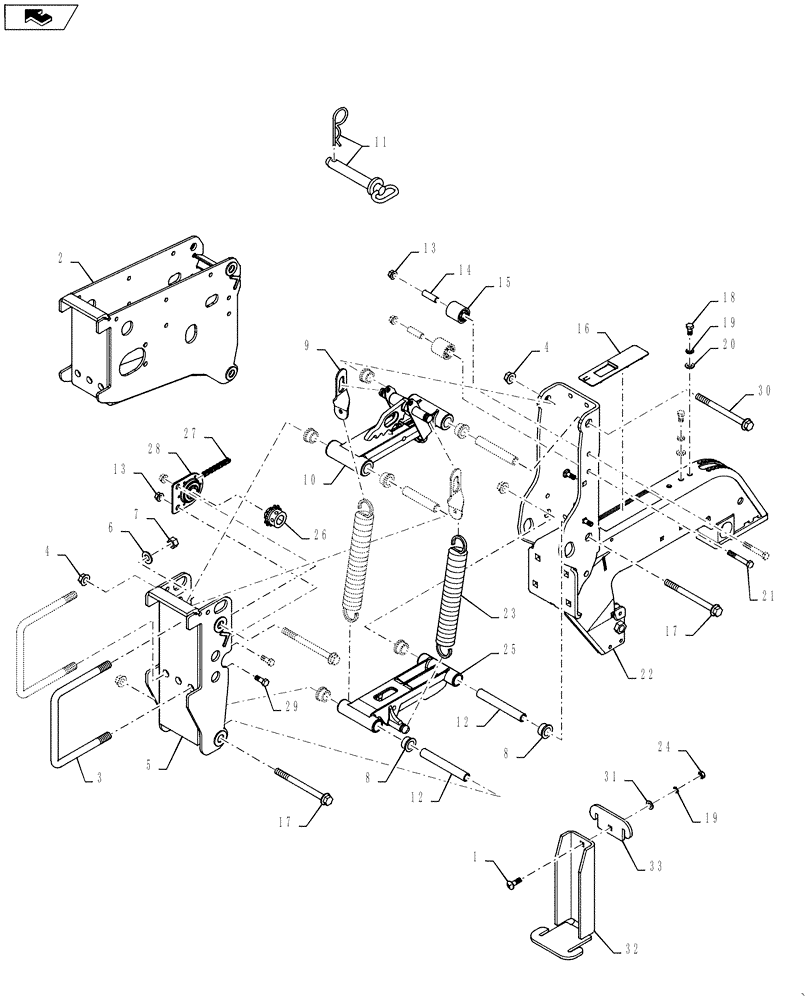

Запчасти Case IH 825 (77.105.AG[01]) - OPENER ARMS AND MOUNTS (77) - SEEDING/PLANTING

1

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

2

73357214

MOUNT

25P REAR OPENER MOUNT WELDMENT

1шт.

3

73358608

U-BOLT

5/8-11 x 7 1/32 x 8 1/2

2шт.

4

73358490

NUT

HEX FLG LOCK 1/2-13 PLT

3шт.

5

73357213

MOUNT

25P FRONT OPENER MOUNT WELDMT

1шт.

6

86729275

LOCK WASHER,5/8 0.634 CST ZND

1шт.

7

86625068

NUT,5/8"-11, G8

1шт.

8

73358011

BUSHING

PARALLEL ARM PIVOT BUSHING

8шт.

9

73357145

STRAP

3 13/32 SPRING STRAP

2шт.

10

73357208

ARM

25 SERIES UPPER PARALLEL ARM

1шт.

11

73358543

HITCH PIN

5/8 X 5 3/4 USABLE

1шт.

12

73357153

PIVOT

25P REAR OPENER INNER PIVOT TB

4шт.

13

247780

SERRATED NUT,Flg, USR, 3/8"-16

4шт.

14

73357146

TUBE

IDLER SPACER 1/2OD X 1.56

2шт.

15

73358025

SPOOL

IDLER 1.44OD X.53B X1.5L

2шт.

16

73358043

GASKET

AM SEED TUBE DIRT

1шт.

17

73358404

SCREW

HFS 1/2-13X6 1/8GR5 PLT

2шт.

18

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

19

80680

LOCK WASHER,3/8 0.381 CST ZND

3шт.

20

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

21

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

22

73357209

SHANK

25 SERIES OPENER

1шт.

23

73357840

SPRING

SPRING EXT 1.575 OD X .225 W

2шт.

24

280136

NUT,3/8"-16, G8

1шт.

25

73357594

ARM

25 SRS LOWER PARALLEL

1шт.

26

73357894

SPROCKET

SPKT 41C12 W/SS SPCL PLT

1шт.

27

73358733

CHAIN

USED WITH REAR OPENER MOUNT

1шт.

27

73358734

CHAIN

USED WITH FRONT OPENER MOUNT

1шт.

28

73358089

MOUNT

1шт.

29

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

30

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1шт.

31

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

32

73357156

BRACKET

TWIN ROW SPACER BRACKET LOWER

1шт.

33

73357157

BRACKET

TWIN ROW SPACER BRACKET UPPER

1шт.
