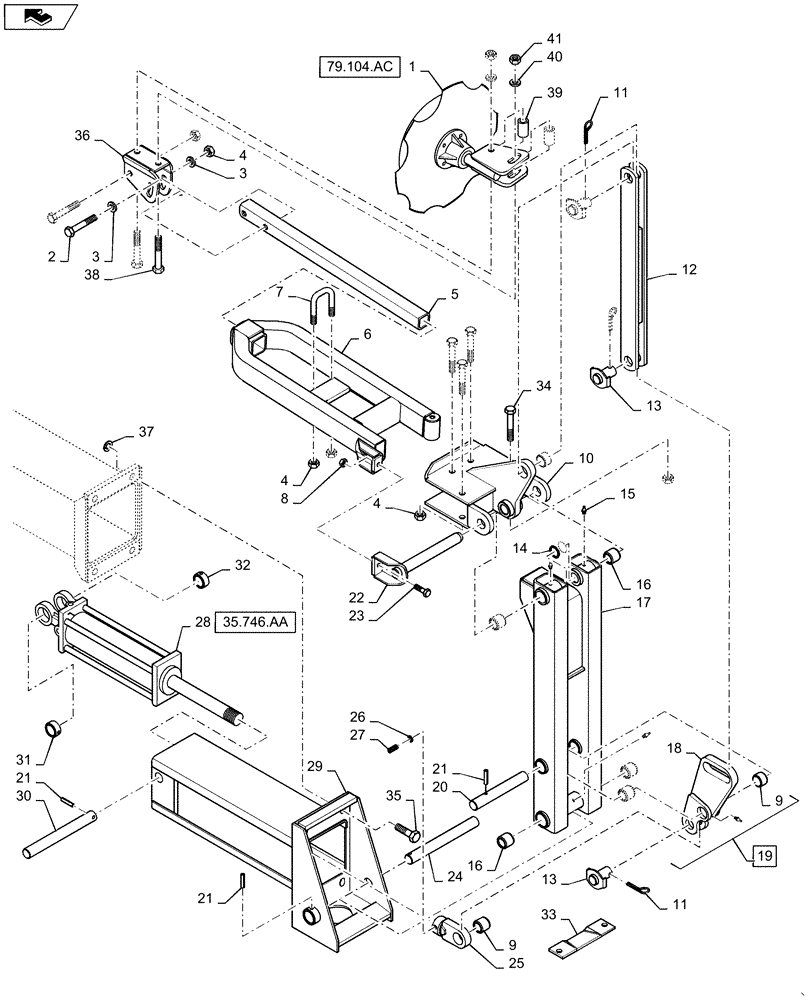

Запчасти Case IH 825 (77.104.AB[01]) - FLAT FOLD MARKER (77) - SEEDING/PLANTING

1

73357053

HUB

MARKER DISC & HUB ASSEMBLY

1шт.

2

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

3

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

3шт.

4

88871

NUT,1/2"-13, GC

8шт.

5

73357035

TUBE

MARKER TUBE 36 LG, Used with 6 & 8 Row & 4 Row Wide

1шт.

5

73358281

MARKER

MARKER TUBE 42 IN LONG, Used with 8 Row Wide

1шт.

6

73357044

ARM

8 ROW 2ND STAGE ARM WMNT, Used with 8 Row & 6 Row wide

1шт.

6

73358285

SUPPORT

8 ROW WIDE 2ND STAGE ARM WMNT, Used on 8 Row Wide

1шт.

7

73358592

U-BOLT

1/2-13 1 17/32 X 2 3/4

1шт.

8

86629544

NUT,5/16” – 18, GR B

1шт.

9

73358195

BUSHING

1 1/4-1-3/4 L

4шт.

10

73357036

MOUNT

2ND STAGE WMNT

1шт.

11

70929952

COTTER PIN,7/32" x 2"

3шт.

12

73357040

LINK

TRANSFER LINK WMNT

1шт.

13

73357043

PIN

CYL. PIVOT PIN WMNT

3шт.

14

73357975

O-RING

2шт.

15

87414

LUBE NIPPLE,1/4" - 28

1шт.

16

73358190

BUSHING

1 1/4 X 1 X 1

4шт.

17

73357032

ARM

1ST STAGE ARM WELDMENT

1шт.

18

73357042

LINK

PIVOT LINK WELDMENT

1шт.

19

73357045

BUSHING

ASSEMBLY, Incl 9, 18

1шт.

20

73357033

PIN

CYLINDER LINK PIN

1шт.

21

84158592

LOCK PIN

1/4 X 1 1/2 LG PLT

3шт.

22

73357038

PIN

2ND STAGE MOUNT PIN

1шт.

23

73358471

SCREW

5/16-18X1 1/2 GR2

1шт.

24

73357034

PIN

1ST STAGE MOUNTING PIN

1шт.

25

73358776

STRAP

CYLINDER TANG WMNT

1шт.

26

73358013

PROTECTOR

THREAD PROTECTOR, DELRIN

1шт.

27

73358571

SCREW

SCREW SET 1/4-28X1/4

1шт.

28

73357900

TIE-ROD

1шт.

29

73357029

MOUNT

PLANTER MARKER MOUNT WMNT

1шт.

30

73357028

PIN

CYLINDER LUG PIN

1шт.

31

73357031

SPACER

WITH HOLE

1шт.

32

73357030

SPACER

1шт.

33

73357050

SHIM

1шт.

34

86505992

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

4шт.

35

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

36

73357049

MOUNT

MARKER DISK ADJUST MOUNT

1шт.

37

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

1шт.

38

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

39

73357048

TUBE

ADJUST MOUNT SPACER TUBE

1шт.

40

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

41

9803187

NUT,1/2"-13, G8

1шт.
