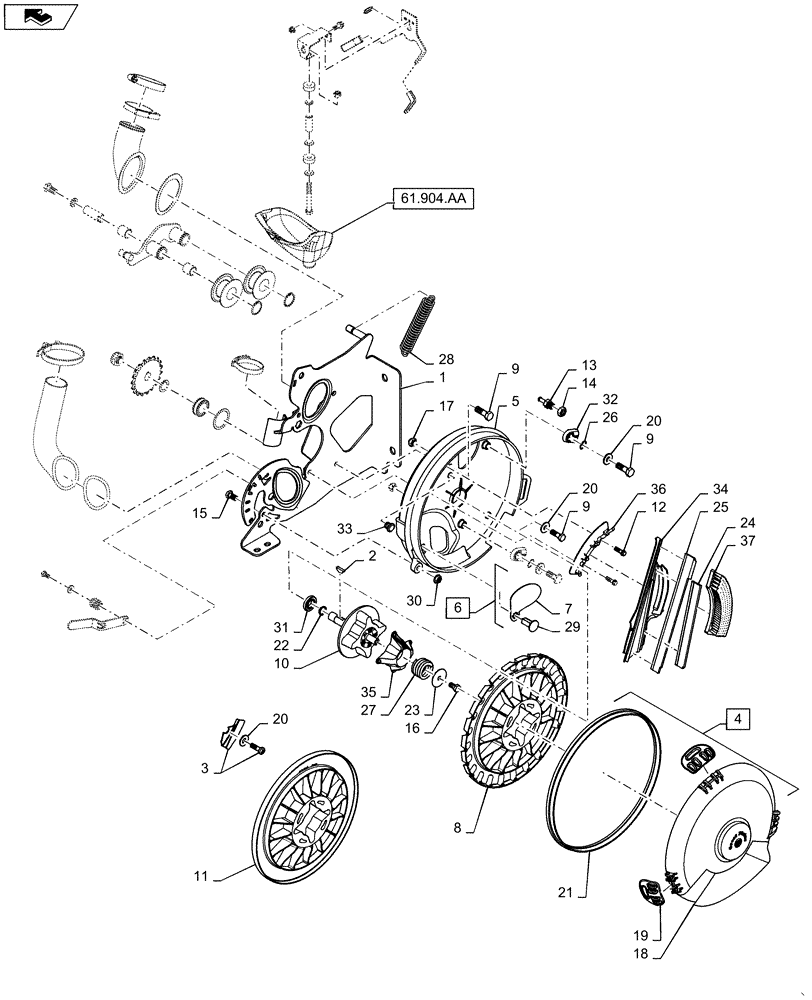

Запчасти Case IH 825 (61.904.AA[02]) - AIR METER ASSEMBLY (61) - METERING SYSTEM

1

73357552

MOUNT

AIR METER

1шт.

2

73357815

WOODRUFF KEY

#606

1шт.

3

73358751

SHIELD

VOLUMETRIC METER GRAIN SHIELD, Used with small seeds

1шт.

4

73357526

COVER

ASSEMBLY, Incl 18 - 19, 21, AIR METER COVER

1шт.

5

73357549

HOUSING

AIR METER

1шт.

6

73357561

BRACKET

AIR METER SHUTTER AND SQ SHAFT, Incl 7,29

1шт.

7

73357558

PLATE

SHUTTER

1шт.

8

73358649

DISC

SHOWN, DISK CORN RND LARGE 24 CELL

1шт.

8

73358647

DISC

DISK CORN RND SMALL 24 CELL

1шт.

8

73358650

DISC

DISK CORN RND LARGE 40 CELL

1шт.

8

73358648

DISC

DISK CORN RND SMALL 40 CELL

1шт.

8

73358643

DISC

DISK SOYB 84 CELL

1шт.

8

73358654

DISC

DISK MILO 130 CELL

1шт.

8

73358651

DISC

DISK CORN FLAT LARGE 24 CELL

1шт.

8

73358652

DISC

DISK CORN FLAT LARGE 40 CELL

1шт.

8

73358653

DISC

DISK MILO 65 CELL

1шт.

8

73358644

DISC

DISK SOYB 168 CELL

1шт.

8

73358658

DISC

DISK VOLUMETRIC NO. 1 84 CELL

1шт.

9

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

10

73357587

SHAFT

SHAFT AND DISK SEAT ASSEMBLY

1шт.

11

73358659

DISC

AIR METER BLANK

1шт.

12

73358405

SCREW

2шт.

13

73358328

FITTING

1шт.

14

87656

NUT,Jam, 7/16"-20, G5

1шт.

15

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

16

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

17

86632551

NUT,#10-24, GB

1шт.

18

73358806

COVER

AIR METER RAIN COVER

1шт.

19

73358052

LATCH

FLEXIBLE SNAP

3шт.

20

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

21

73358053

SEAL

EDGE

1шт.

22

73358578

SNAP RING

1шт.

23

73358618

WASHER

FENDER

1шт.

24

73358225

BRUSH

SHORT

1шт.

25

73358224

BRUSH

LONG

1шт.

26

73358641

WAVE WASHER

1шт.

27

73357851

SPRING

1шт.

28

73357852

SPRING

1шт.

29

73358233

SHAFT

1шт.

30

145458

SERRATED NUT,5/16"-18 GR 5 ZND

1шт.

31

700717598

BALL BEARING,15.88mm ID x 34.92mm OD x 11mm W

1шт.

32

73358038

SUPPORT

AIR METER BRUSH HOLDER SNAP

1шт.

33

73358056

PLUG

1шт.

34

73358046

SUPPORT

AM BRUSH HOLDER

1шт.

35

73358040

CLAMP

AIR METER DISK CLAMP

1шт.

36

73358045

BRUSH

BRUSH, 4 TUFTED

1шт.

37

73358044

BRUSH

SEED DROP

1шт.
