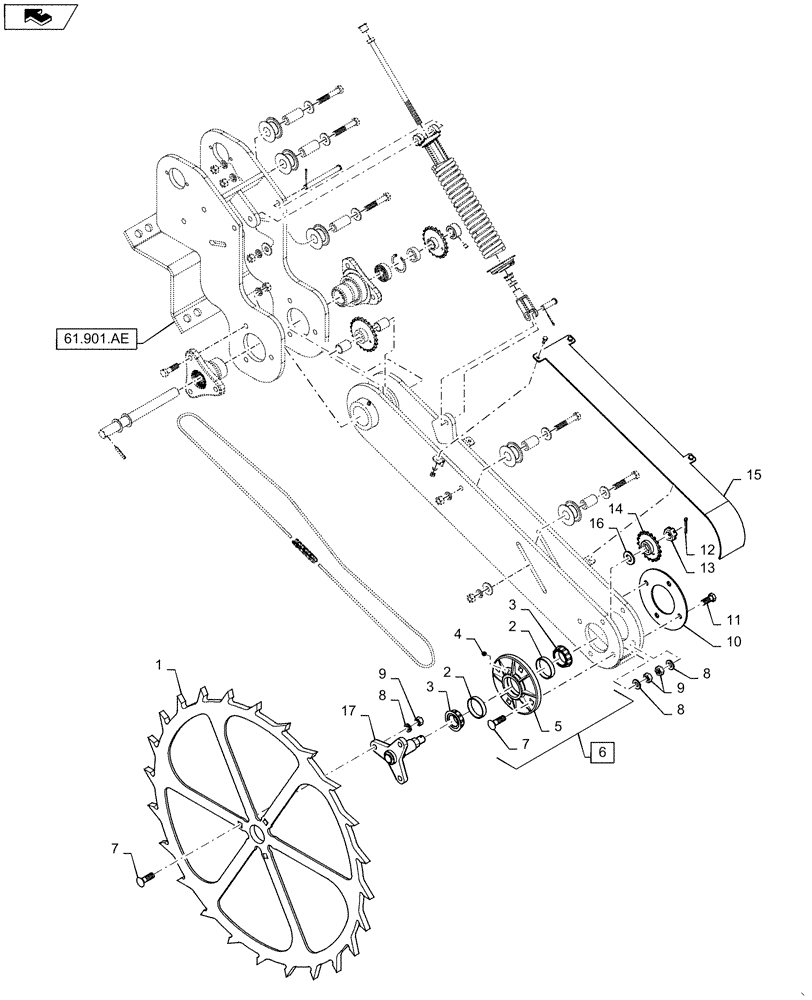

Запчасти Case IH 825 (61.901.AE[02]) - CONTACT WHEEL ASSEMBLY (61) - METERING SYSTEM

1

73357697

WHEEL ASSY

GROUND DRIVE

1шт.

2

1347345C1

BEARING, CUP

2шт.

3

602958R91

BEARING ASSY,31.75 mm ID x 25.4 mm

2шт.

4

87414

LUBE NIPPLE,1/4" - 28

1шт.

5

73357686

HUB

1шт.

6

73357684

HUB

ASSEMBLY, Incl 2 - 5

1шт.

7

88530

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

7шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

11шт.

9

9803187

NUT,1/2"-13, G8

11шт.

10

73357102

GUARD

DRIVE SIDE

1шт.

11

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

12

80754

COTTER PIN,3/16" OD x 1-1/2" OAL

1шт.

13

84996

SLOTTED NUT,3/4"-10, G5

1шт.

14

73357443

SPROCKET

DRIVE

1шт.

15

73357471

GUARD

DRIVE

1шт.

16

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1шт.

17

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.
