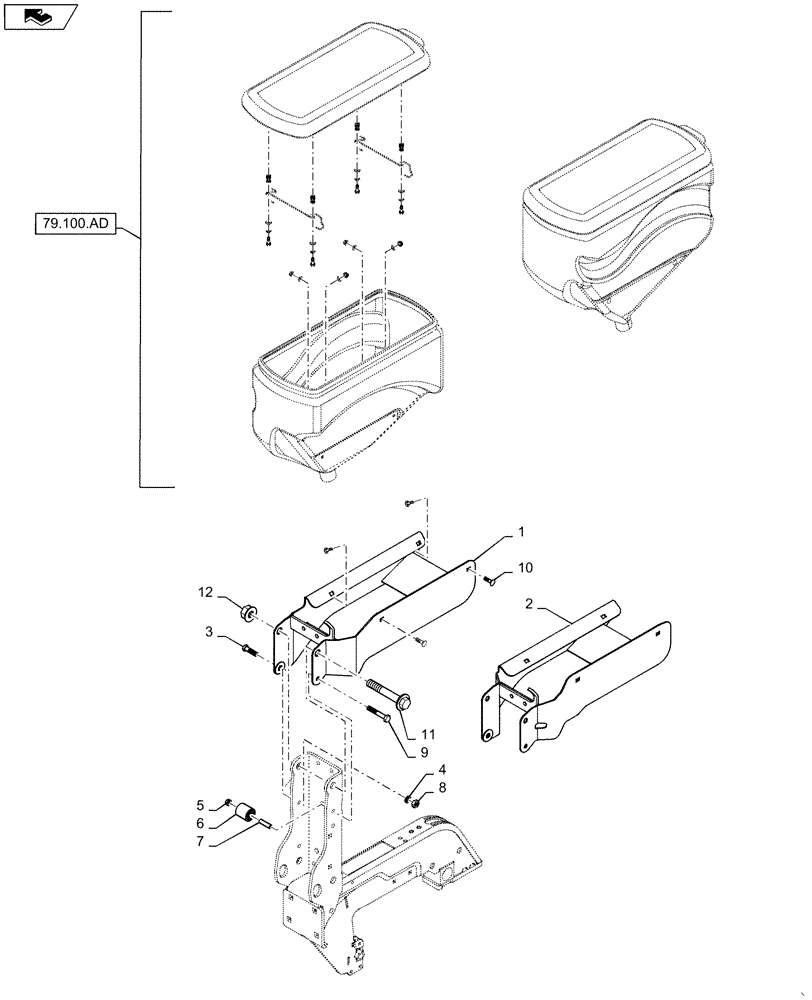

Запчасти Case IH 825 (39.100.AB[03]) - HOPPER MOUNTING (39) - FRAMES AND BALLASTING

1

73357574

MOUNT

LEFT HAND

1шт.

2

73358845

MOUNT

RIGHT HAND

1шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

5

247780

SERRATED NUT,Flg, USR, 3/8"-16

1шт.

6

73358025

SPOOL

Used with Middle and Rear Openers

1шт.

6

73357155

LINK

Used with Front Opener

1шт.

7

73357146

TUBE

1шт.

8

280136

NUT,3/8"-16, G8

1шт.

9

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

10

280327

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd

1шт.

11

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

1шт.

12

73358490

NUT

1шт.
