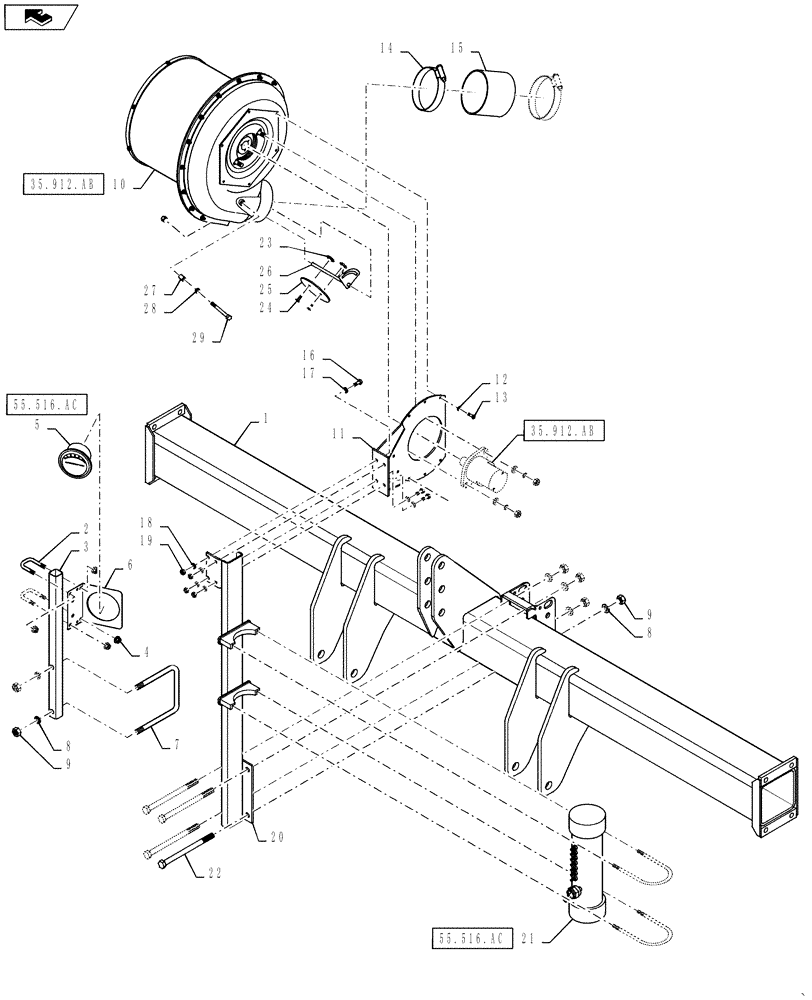

Запчасти Case IH 825 (39.100.AB[02]) - HYDRAULIC FAN MOUNTING (39) - FRAMES AND BALLASTING

1

73358270

FRAME

Used with 8 Row Wide

1шт.

2

73358606

U-BOLT

2шт.

3

73358835

MOUNT

1шт.

4

73358492

NUT

4шт.

5

73358230

GAUGE

1шт.

6

73357588

MOUNT

Air Pressure Gauge Mount

1шт.

7

73358612

U-BOLT

1шт.

8

86729275

LOCK WASHER,5/8 0.634 CST ZND

6шт.

9

86625068

NUT,5/8"-11, G8

6шт.

10

73358205

FAN

With Case Drain Motor, Start Serial: B1007R

1шт.

11

73357242

MOUNT

1шт.

12

80682

LOCK WASHER,1/4"

6шт.

13

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

6шт.

14

73358361

CLAMP

2шт.

15

73358001

HOSE

6.0 ID Ducting x 1.2 FT

1шт.

16

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

17

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

18

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

19

280136

NUT,3/8"-16, G8

4шт.

20

73357360

MOUNT

1шт.

21

73357539

SENSOR

1шт.

22

86622984

BOLT,Hex, 5/8" - 11 x 9", Gr 5

4шт.

23

86632551

NUT,#10-24, GB

1шт.

24

73358569

SCREW

2шт.

25

73357714

FAN

Crary Fan Shutter Disk

1шт.

26

73357272

FAN

Crary Fan Shutter

1шт.

27

73357534

TUBE

Meter Spacer

1шт.

28

73358478

FITTING

, Start Serial: B1008R

1шт.

29

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.
