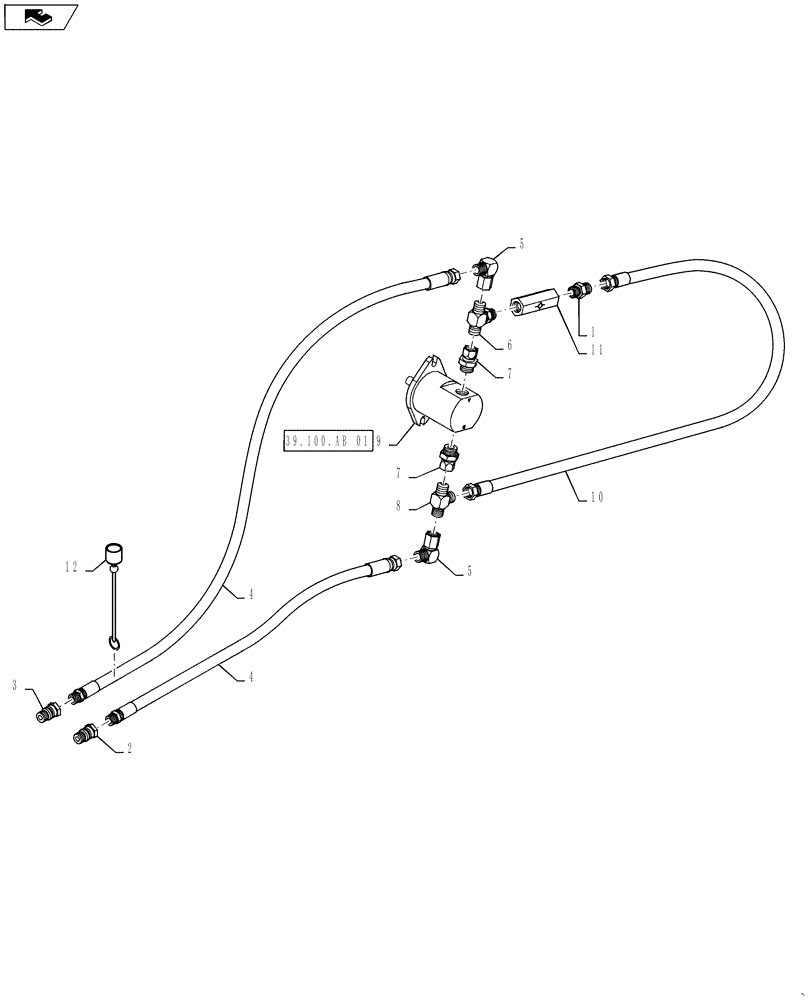

Запчасти Case IH 825 (35.912.AC[01]) - FAN HYDRAULIC LINE INSTALLATION (35) - HYDRAULIC SYSTEMS

1

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

AD 3/4M ORB 3/4MJIC

1шт.

2

73358368

FITTING

CP 3/4 FOR B MALE QD POPPET TYPE

1шт.

3

73358369

FITTING

CP 3/4FORB MALE QD RELIEF

1шт.

4

73358848

TUBE

2шт.

5

73358387

FITTING

ELBOW, 3/4FJIC 3/4MJIC

2шт.

6

73358581

FITTING

TEE, 3/4MORB 3/4MJIC 3/4MJIC

1шт.

7

73358330

FITTING

ADAPTOR, 7/8MORB 3/4FJIC

2шт.

8

128996

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

9

73358478

FITTING

HYD MOTOR 7/8ORBF

1шт.

10

73358414

HYDRAULIC HOSE

1шт.

11

73357898

VALVE

LINE CHECK

1шт.

12

73358005

CAP

DUST CAP 1/2"

1шт.
