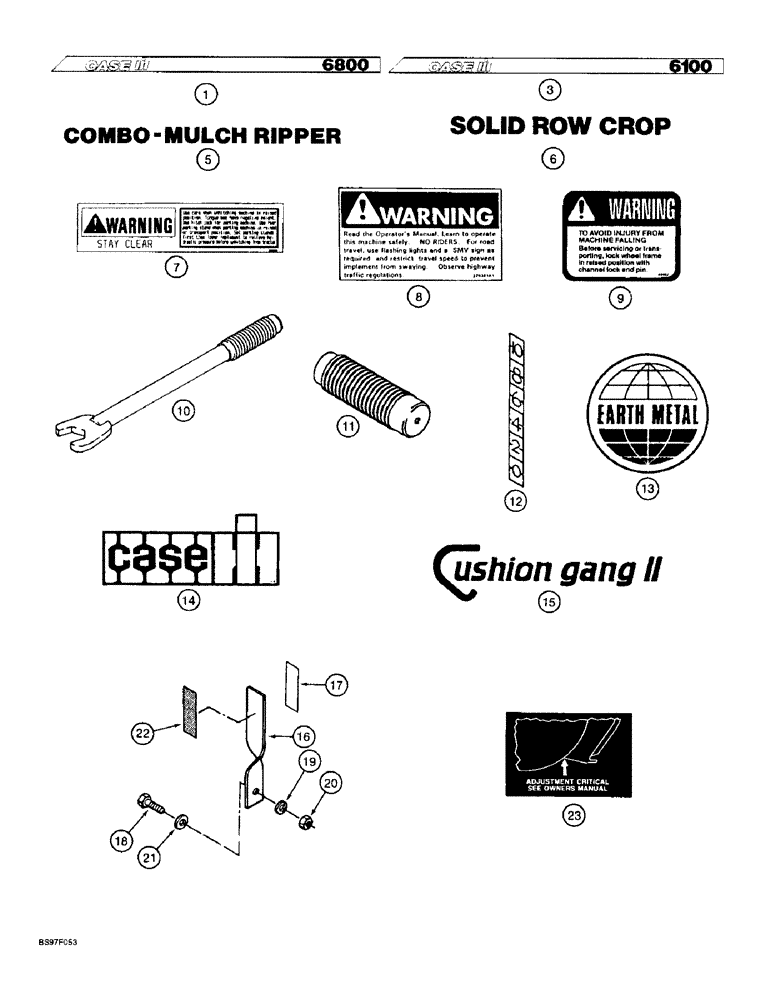

Запчасти Case IH 6100 (9-44) - DECALS AND TOOLS (09) - CHASSIS/ATTACHMENTS

1

195256A2

DECAL

- CaseIH 6800, right-hand

1шт.

2

195255A2

DECAL

- 6800 CaseIH, left-hand, not shown

1шт.

3

243711A1

DECAL

- CaseIH 6100, right-hand

1шт.

4

243710A1

DECAL

- 6100 CaseIH, left-hand, not shown

1шт.

5

281048A1

DECAL

- Combo-Mulch Ripper

2шт.

6

196468A1

DECAL

- Solid Row Crop

1шт.

7

255904A1

DECAL

- Warning, stay clear, 6100 and 6800 cart

1шт.

8

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual

1шт.

9

140384A1

DECAL

- Warning, avoid injury from machine falling

2шт.

10

142052A1

KEY

TOOL - adjustment

1шт.

11

142719A1

HANDLE

GRIP - tool, rubber

1шт.

12

142397A1

DECAL

- depth gauge

1шт.

13

147782C1

DECAL

- earth metal

1шт.

14

95731C1

DECAL

- Case IH trademark, 64 x 156 mm

2шт.

15

115685A1

DECAL

- Cushion gang II

2шт.

16

131947C1

SUPPORT

CLIP - reflector

2шт.

Used for reflector mounting, Ref. 17 and 22, when used on 6800 cart with combo-mulch ripper.

1шт.

17

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

18

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

Used for reflector mounting, Ref. 17 and 22, when used on 6800 cart with combo-mulch ripper.

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

Used for reflector mounting, Ref. 17 and 22, when used on 6800 cart with combo-mulch ripper.

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

Used for reflector mounting, Ref. 17 and 22, when used on 6800 cart with combo-mulch ripper.

1шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

Used for reflector mounting, Ref. 17 and 22, when used on 6800 cart with combo-mulch ripper.

1шт.

22

1284365C2

REFLECTOR

- amber

1шт.

23

1986496C1

DECAL

- adjustment critical, No-Till fertilizer opener

1шт.
