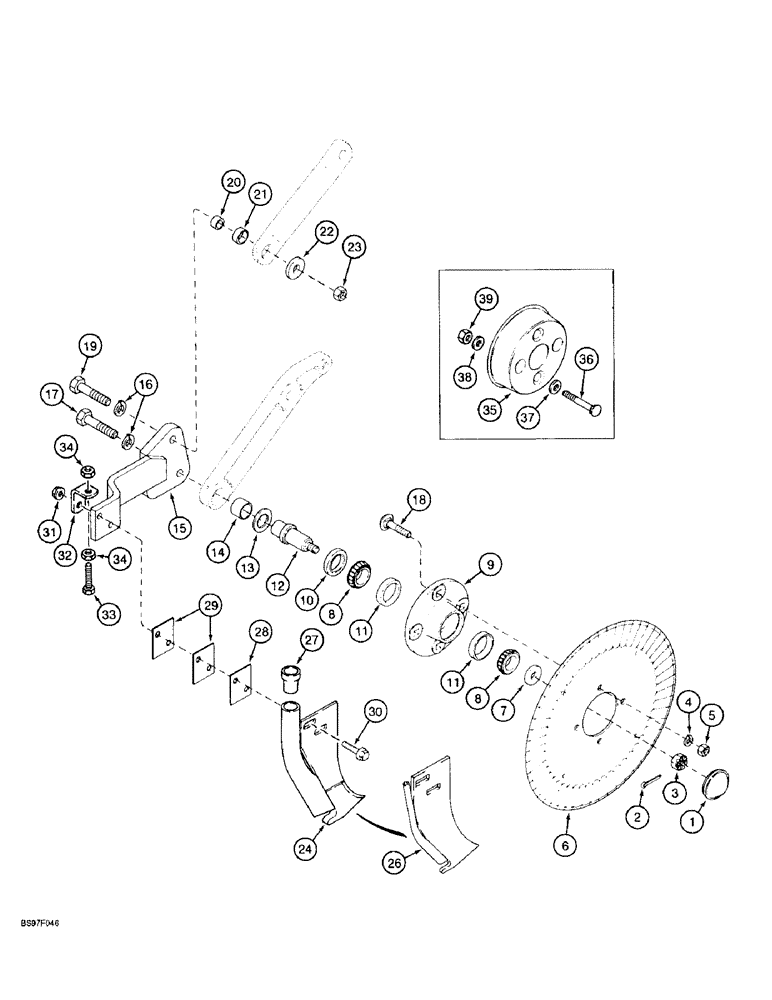

Запчасти Case IH 6100 (9-38) - NO-TILL COULTER, WITH VERTICAL CUSHION SPRING, COULTER AND KNIVES, LIQUID AND DRY FERTILIZER (09) - CHASSIS/ATTACHMENTS

1

1344515C1

CAP

- hub

1шт.

2

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

3

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

6

1344516C1

PLOW DISC

COULTER - ripple, 17 inch

1шт.

7

1344527C1

WASHER

- flat, 11/16 x 1-3/4 x 1/4 inch

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

2шт.

9

1344512C1

HUB

- coulter

1шт.

10

652769R91

OIL SEAL

- oil

1шт.

11

651817R1

BEARING CUP

CUP - tapered roller bearing

2шт.

12

1986480C1

SPINDLE

- coulter

1шт.

13

1986481C1

WASHER

SPACER - 1-1/4 x 2-1/4 x 9/64 inch, lower arm

1шт.

14

1986498C1

BUSHING

- 1 x 1-1/4 x 1/2 inch, lower arm

1шт.

15

1986483C1

ARM

- fertilizer knife, right-hand (Shown)

1шт.

15

1986484C1

ARM

- fertilizer knife, left-hand

1шт.

16

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

17

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- hex, 5/8 NF x 2-1/2 inch

1шт.

18

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

19

414-1040

BOLT,Hex, 5/8" - 18 x 2-1/2", Gr 5

- hex, 5/8 NF x 2-1/2 inch

2шт.

20

1986491C1

BUSHING

SLEEVE - upper bushing carrier

1шт.

21

1986497C1

BUSHING,25.4mm ID x 31.8mm OD x 12.7mm L

1 1/4 X 1 X 1/2 BRONZE

1шт.

22

1986489C1

SPACER

WASHER - flat, 21/32 x 2-1/4 x 9/64 inch

1шт.

23

425-1010

NUT,5/8"-11, G5

1шт.

24

108120A1

KNIFE

- dry fertilizer

1шт.

26

1344517C2

KNIFE

- liquid fertilizer

1шт.

27

108121A1

ADAPTER

- fertilizer hose, dry fertilizer

1шт.

28

1344518C1

SHIM

- 1/8 inch thick, knife

1шт.

29

1344519C1

SHIM

- 1/16 inch thick, knife

3шт.

30

409-7832

BOLT,Hex Flg, 1/2" - 13 x 2", Spcl

- hex serrated flange, 1/2 NC x 2 inch

2шт.

31

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

32

103413A1

LOCK

- knife

1шт.

33

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

34

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

35

1986465C1

WHEEL,228.6mm OD x 63.5mm W

- gauge, 9 inch (If equipped)

1шт.

35

1986466C1

WHEEL

- gauge, 11 inch (If eqiupped)

1шт.

36

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

2шт.

37

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

2шт.

38

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

39

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.
