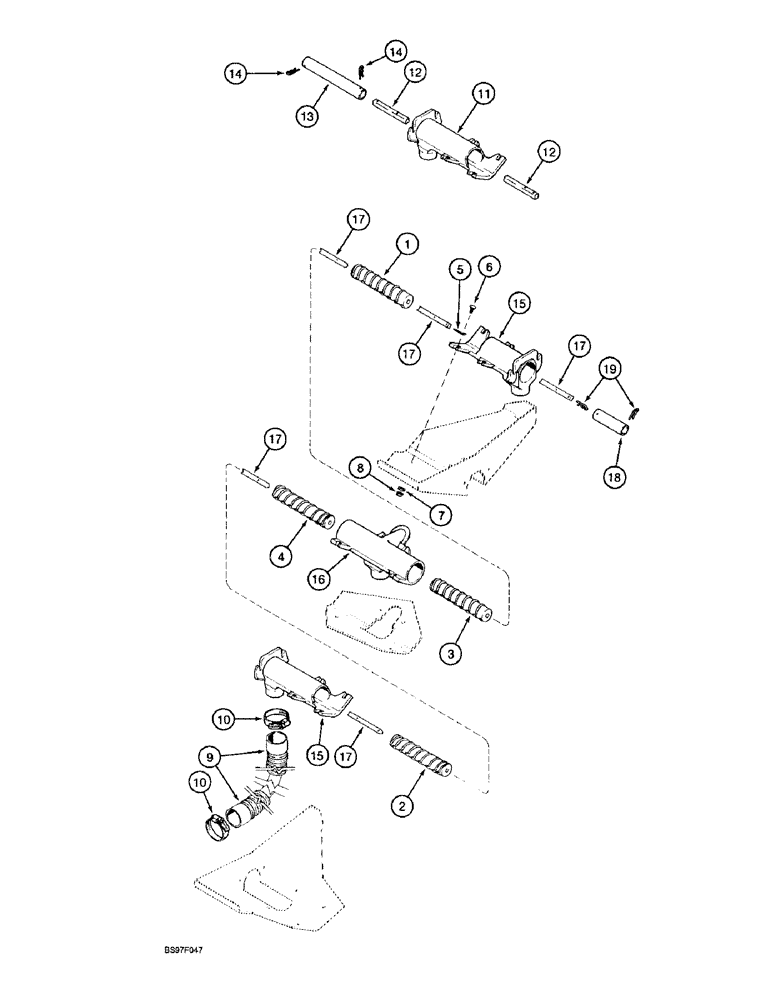

Запчасти Case IH 6100 (9-34) - DRY FERTILIZER HOPPER AUGERS, USED WITH 6 ROW AND 8 ROW COULTER FRAMES (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
472421R1
AUGER
- low rate, right-hand
1шт.
1
472425R1
AUGER
- high rate, right-hand
1шт.
1
483534R1
AUGER
- extra high rate, right-hand
1шт.
2
472420R1
AUGER
- low rate, left-hand
1шт.
2
472424R1
AUGER
- high rate, left-hand
1шт.
2
483533R1
AUGER
- extra high rate, left-hand
1шт.
3
480152R1
AUGER
- low rate, right-hand, inner
1шт.
3
480107R1
AUGER
- high rate, right-hand, inner
1шт.
3
487032R1
AUGER
- extra high rate, right-hand, inner
1шт.
4
480151R1
AUGER
- low rate, left-hand, inner
1шт.
4
480106R1
AUGER
- high rate, left-hand, inner
1шт.
4
487033R1
AUGER
- extra high rate, left-hand, inner
1шт.
5
432-1220
COTTER PIN,3/16" x 1 1/4"
3/16" x 1 1/4"
1шт.
6
434-516
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5
Bolt, Short NK, 5/16"-18 x 1", G5, Full Thd
1шт.
6
434-520
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
BOLT - carriage, 5/16 NC x 1-1/4 inch
1шт.
7
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
1шт.
8
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT, Flg, USR, 5/16"-18
1шт.
9
133693A1
TUBE
HOSE - 607 mm (24 inch) long, dry fertilizer
1шт.
10
214-1432
HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm
CLAMP, HOSE, , Adjustable #32, 1.56/2.50 Type F Worm
1шт.
11
149197C1
HOUSING
- auger, inner end short, used w/ single outlet hopper, 8 row
1шт.
12
125490A1
SHAFT
- auger, short, used w/ single outlet hopper, 8 row
1шт.
13
189914A1
COUPLING
- 201 mm (7-15/16 inch) long, transmission shaft, outer end, used w/ single outlet hopper, 8 row
1шт.
14
520177R1
PIN
- hair, 3/16 inch, used w/ single outlet hopper, 8 row
2шт.
15
149197C1
HOUSING
- auger, inner end short, used w/ triple outlet hopper 6 & 8 row
2шт.
16
141037C1
HOUSING
- auger, feed center, used w/ triple outlet hopper 6 & 8 row
1шт.
17
141079C1
BAR
SHAFT - auger, long, used w/ triple outlet hopper 6 & 8 row
1шт.
18
139631A1
COUPLING
- 63 mm (2-1/2 inch) long, transmission shaft, inner end, used w/ triple outlet hopper 6 & 8 row
1шт.
19
520177R1
PIN
- hair, 3/16 inch, used w/ triple outlet hopper 6 & 8 row
2шт.
Выбрано товаров: 28
