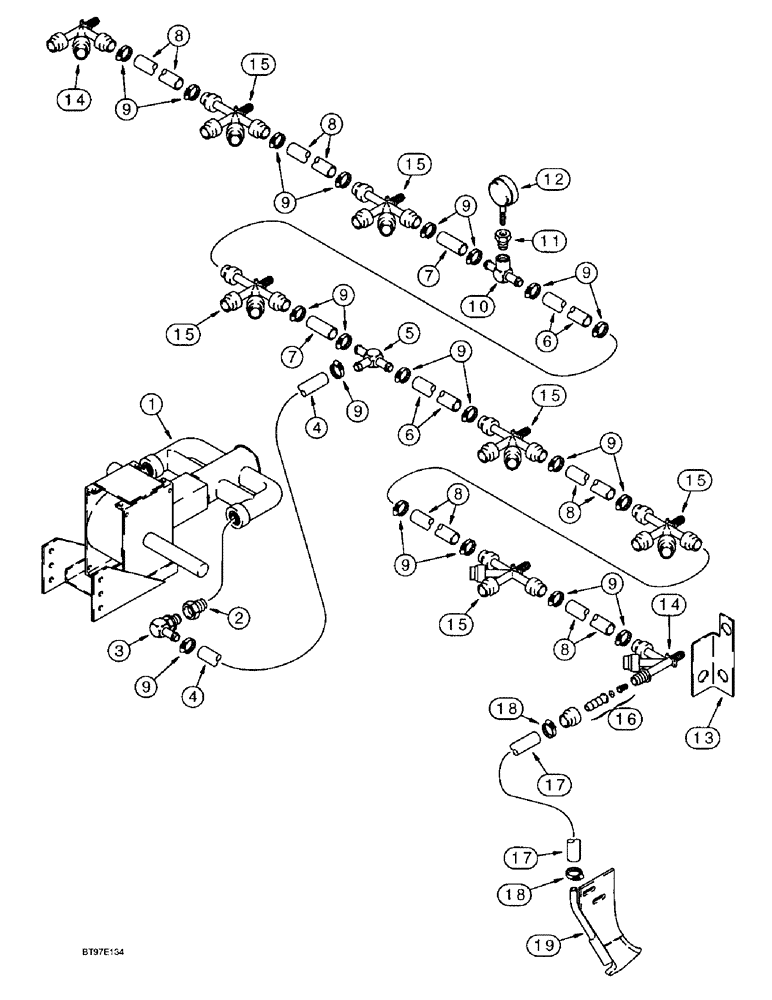

Запчасти Case IH 6100 (9-28) - LIQUID FERTILIZER PISTON PUMP SYS, PUMP TO FERTILIZER COULTERS & KNIVES,8 LIQUID FERTILIZER COULTERS (09) - CHASSIS/ATTACHMENTS

1

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer

1шт.

2

1264071C1

FITTING

REDUCER - hex, special

1шт.

3

241916A1

FITTING

ELBOW - 90 degree, hose barb, special

1шт.

4

241009A1

HOSE,737.00 mm

cut from 241923A1 bulk hose, see below 737.00 mm

1шт.

5

241919A1

FITTING

TEE - male, hose barb

1шт.

6

241014A1

HOSE,559.00 mm

cut from 241923A1 bulk hose, see below 559.00 mm

2шт.

7

241015A1

HOSE,152.00 mm

cut from 241923A1 bulk hose, see below 152.00 mm

2шт.

8

241009A1

HOSE,737.00 mm

cut from 241923A1 bulk hose, see below 737.00 mm

5шт.

9

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, #10, 0.56/1.06 Type F Worm

20шт.

10

241917A1

FITTING

TEE - female x male hose barb

1шт.

11

241918A1

FITTING

ADAPTER - reducer, special, pressure gauge

1шт.

12

225466A1

GAUGE

- pressure, pump

1шт.

13

241016A1

BRACKET

- mounting, nozzle check valve

8шт.

14

241019A1

NOZZLE

- elbow, check valve

2шт.

15

241017A1

NOZZLE

- tee, check valve

6шт.

16

242564A1

KIT

FITTING - nozzle, includes screen and orifice

8шт.

17

241008A1

HOSE,813.00 mm

cut from 134331C1 bulk hose, see below 813.00 mm

8шт.

18

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

16шт.

19

1344517C2

KNIFE

- liquid fertilizer, see pages 9-39 for coulter and mounting parts

8шт.

86993466

HOSE,0.75" ID

241923A1 Sold by the Foot 0.75" ID

1шт.

134331C1

HOSE

- bulk, transparent, 13 (1/2) ID x 30480 mm (1200 inch) long

1шт.
