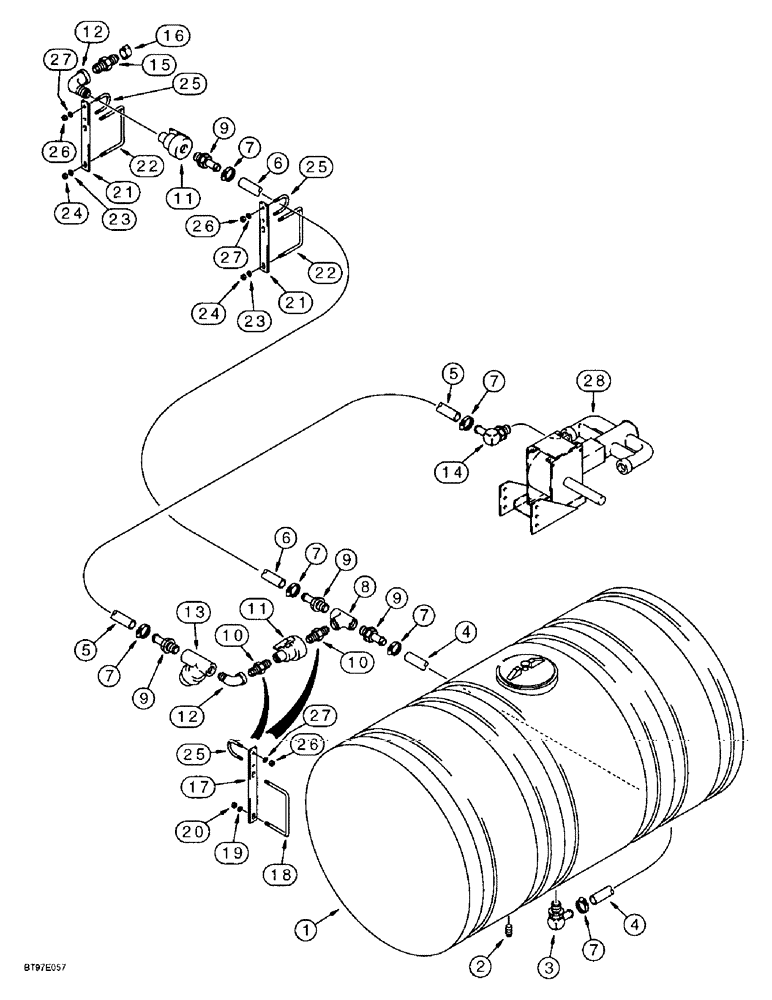

Запчасти Case IH 6100 (9-24) - LIQUID FERTILIZER PISTON PUMP SYSTEM, TANK AND SUCTION LINES TO PUMP, 6 ROW AND 8 ROW COULTER FRAMES (09) - CHASSIS/ATTACHMENTS

1

113723A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 300 gallon

1шт.

See Figure 9-21A, Ref. 1 - 17, for tank components, supports and mounting brackets.

1шт.

2

353-207

PLUG,Sq Drive, 3/4"-14 NPT

- square drive, 3/4 inch PT

1шт.

3

225447A1

ELBOW

- 90 degree, hose barb, special

1шт.

4

241010A1

HOSE,1270.00 mm

cut from 1264065C1 bulk hose, see below, suction, at tank 1270.00 mm

1шт.

5

241011A1

HOSE,813.00 mm

cut from 1264065C1 bulk hose, see below, suction, at pump 813.00 mm

1шт.

6

241012A1

HOSE,1829.00 mm

cut from 1264065C1 bulk hose, see below, central fill 1829.00 mm

1шт.

7

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, , Adjustable #24, 1.06/2.00 Type F Worm

6шт.

8

1264067C1

FITTING

TEE - female, special

1шт.

9

1264072C1

FITTING

- barbed, straight, special

4шт.

10

1264070C1

FITTING

NIPPLE - straight, special

2шт.

11

1980002C1

VALVE,1-1/4" Single Union Poly Valve

- shutoff

2шт.

12

1264068C1

ELBOW

- 90 degree, special

2шт.

13

225446A1

STRAINER ASSY.

FITTING - strainer, special

1шт.

14

225449A1

FITTING

ELBOW - 90 degree, hose barb, special, at pump inlet

1шт.

15

241914A1

FITTING

ADAPTER - special, quick coupler

1шт.

16

1264066C1

CAP

COVER - dust

1шт.

17

234427A1

PLATE

STRAP - hose support, at strainer

2шт.

18

229633A1

U-BOLT,1/2" - 13 x 5 1/4", Steel

- 1/2 inch NC, 4 x 8 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

21

234426A1

BRACKET

STRAP - hose support, at central fill hose

2шт.

22

229984A1

U-BOLT,1/2" - 13 x 5 1/4", Carbon Steel

- 1/2 inch NC, 6 x 4 inch

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

25

1264087C1

U-BOLT

UR .313 2.188W 3.13D

4шт.

26

425-105

NUT,5/16"-18, G5

12шт.

27

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

28

225440A1

PUMP

ASSEMBLY - piston, liquid fertilizer

1шт.

1264065C1

HOSE

- bulk, 38 (1-1/2) ID x 30480 mm (1200 inch) long

1шт.
