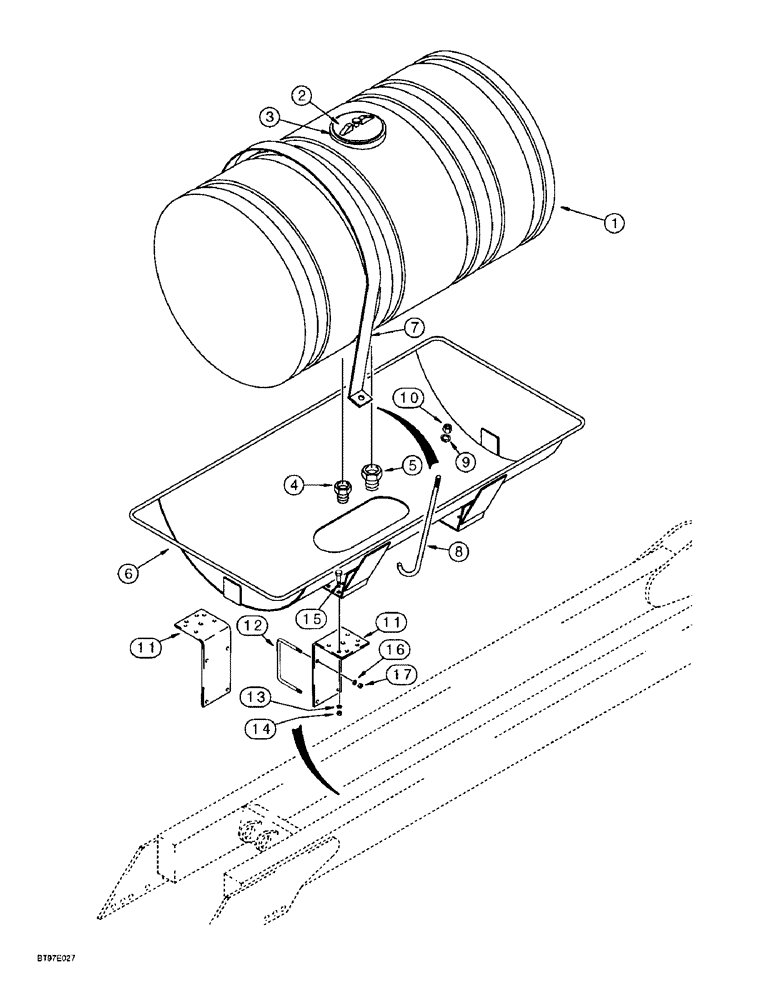

Запчасти Case IH 6100 (9-20) - LIQUID FERTILIZER TANK AND MOUNTING, WITH SINGLE TANK, 6 ROW AND 8 ROW COULTER FRAMES (09) - CHASSIS/ATTACHMENTS

113723A1

HOPPER

TANK ASSEMBLY - liquid fertilizer, 300 gallon

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - liquid fertilizer (Order 113723A1)

1шт.

2

113717A1

COVER

LID - tank

1шт.

3

113718A1

COLLAR

- tank

1шт.

4

117974A1

FITTING

- 3/4 inch bulkhead, special

1шт.

5

117976A1

FITTING

- 1-1/4 inch bulkhead, special

1шт.

6

113721A1

SADDLE

- liquid fertilizer tank

1шт.

7

109685A2

STRAP

- tank

2шт.

8

113720A1

BOLT

- hook

4шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

11

228590A1

BRACKET

SUPPORT - tank mounting, at cart frame

4шт.

12

229633A1

U-BOLT,1/2" - 13 x 5 1/4", Steel

- 1/2 inch NC, 4 x 8 inch

8шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

12шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

12шт.

17

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

12шт.
