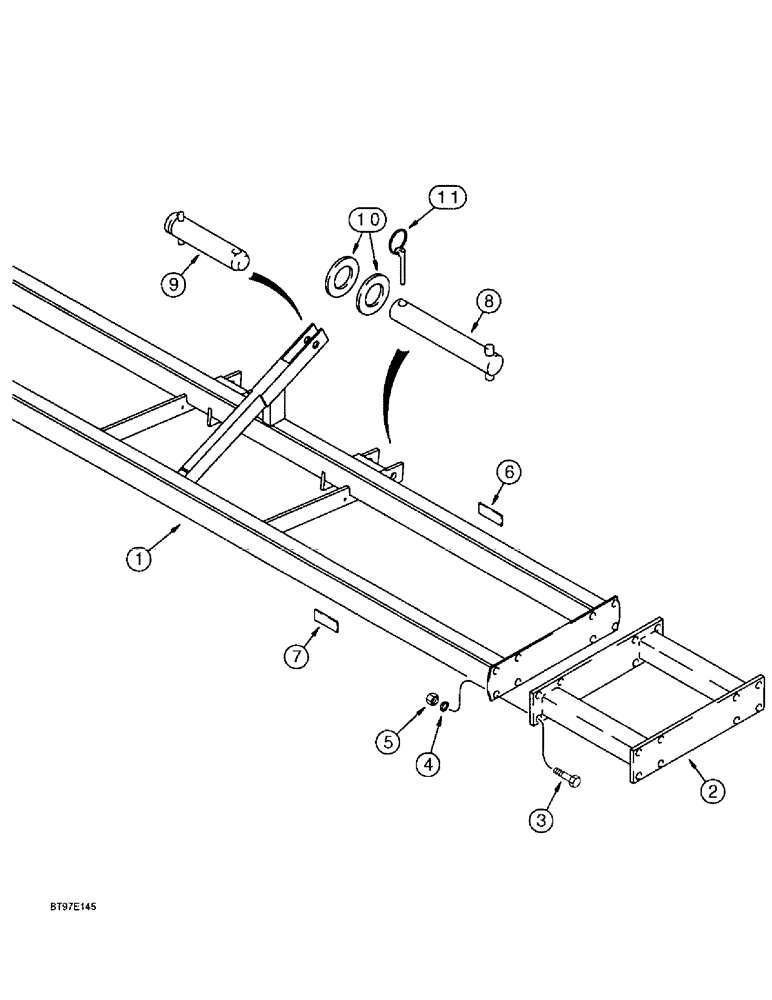

Запчасти Case IH 6100 (9-12) - COULTER FRAME AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

142099A2

FRAME

- coulter bar, 15 foot, 2 inch, used with 6 and 8 row fertilizer coulters

1шт.

See Figure 9-30 for coulter bar frame angle braces and mounting.

1шт.

2

142101A1

FRAME

- coulter bar, extension, 28-3/4 inch long, used with 8 row fertilizer coulters

2шт.

3

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

16шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

5

425-1010

NUT,5/8"-11, G5

16шт.

6

1284365C2

REFLECTOR

- amber

2шт.

7

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

8

188536A1

HITCH PIN,36.3mm OD x 233mm L

PIN - hitch, lower mounting

2шт.

9

142254A1

HITCH PIN

PIN - hitch, upper mounting

1шт.

10

495-11162

WASHER,1 1/2" x 3" x .165"

- flat, 1-5/8 x 3 x 5/32 inch

4шт.

11

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - klik, hitch

1шт.
