Запчасти Case IH 6100 (9-10) - TRANSPORT WHEELS AND HUBS (09) - CHASSIS/ATTACHMENTS

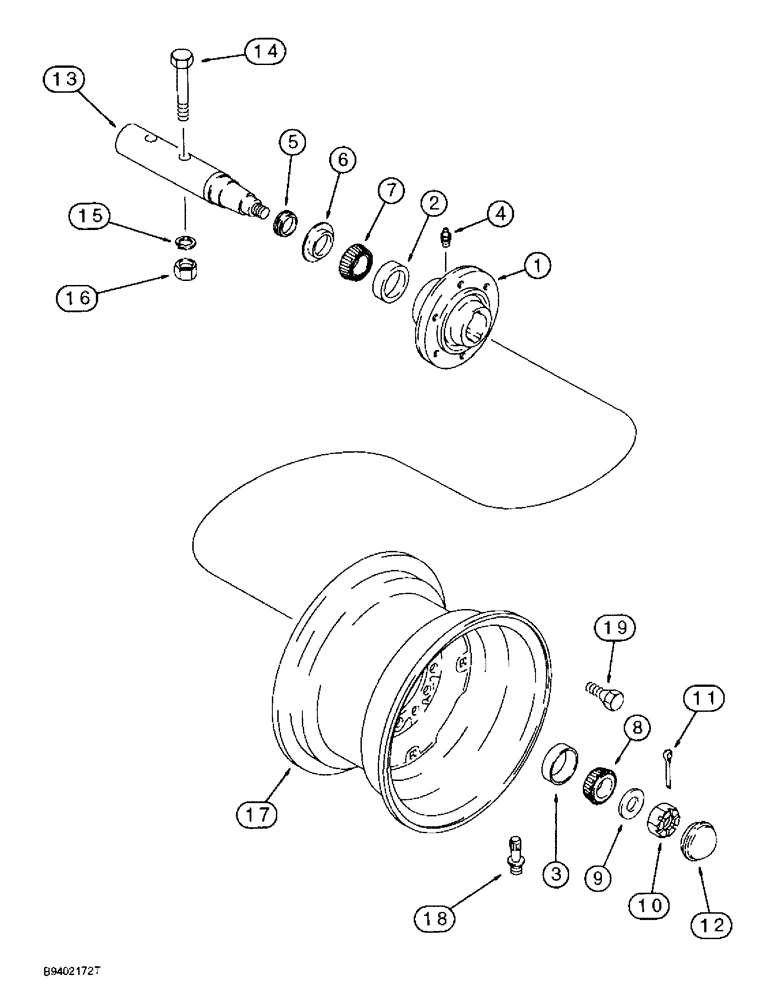

Схема запчастей Case IH 6100 - (9-10) - TRANSPORT WHEELS AND HUBS (09) - CHASSIS/ATTACHMENTS
4
14
12
2
10
19
5
17
1
3
18
8
15
9
7
11
13
16
6

Артикул

Название

Примечание

Количество

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

4шт.

1

NSS

NOT SOLD SEPARAT

HUB - wheel, 6 bolt

1шт.

2

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD

1шт.

3

651817R1

BEARING CUP

CUP - tapered roller bearing

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

5

594702R91

SEAL

- oil

4шт.

6

594703R1

SLEEVE

RING - wear, 1/2 inch wide

4шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID

4шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing

4шт.

9

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, special, hardened

4шт.

10

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

4шт.

11

432-832

COTTER PIN,1/8" x 2"

1/8" x 2"

4шт.

12

224066C1

HUB CAP

CAP - wheel hub

4шт.

13

1978726C1

SPINDLE

- wheel hub

4шт.

14

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

16

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

17

A57879

RIM

WHEEL - 15 x 8 inch, use 11L-15 tire, tandem only, purchase tires locally

4шт.

17

1277504C1

RIM

WHEEL - 15 (381) x 10 inch (254 mm), bogie only, purchase tires locally

4шт.

18

810769C1

VALVE

- inflation

4шт.

19

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

24шт.

Выбрано товаров: 21
