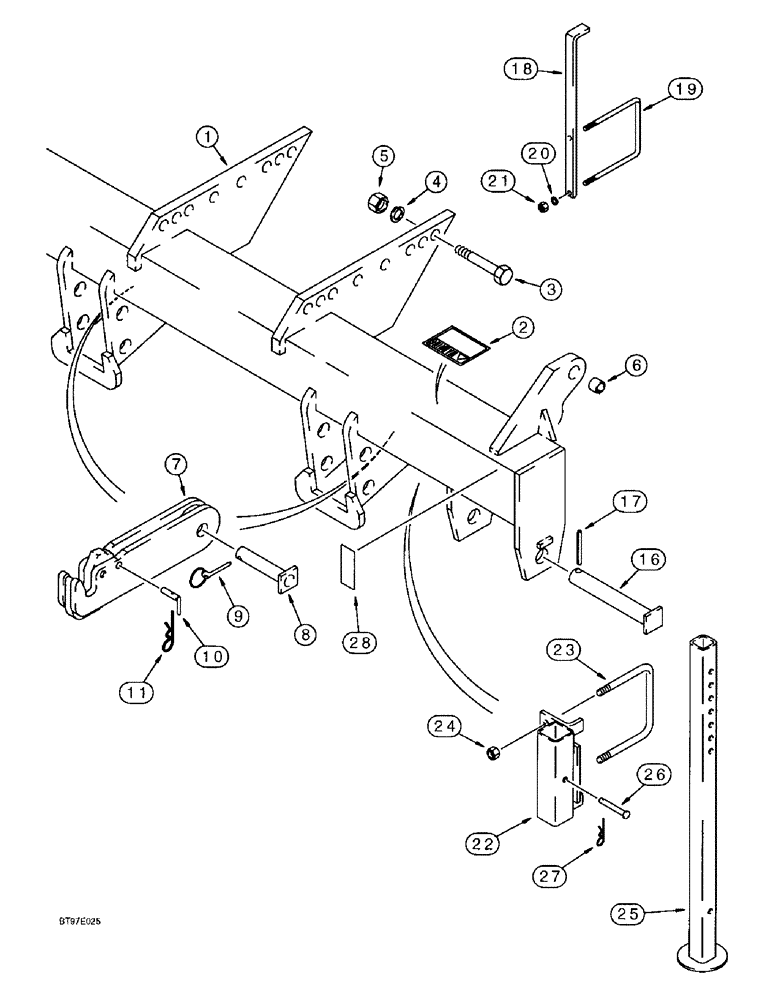

Запчасти Case IH 6100 (9-04) - REAR FRAME AND ATTACHMENT MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

175927A2

CHASSIS

FRAME - rear, transportation wheels and attachment mounting

1шт.

2

140384A1

DECAL

- Warning, avoid injury from machine falling

2шт.

3

426-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 3 inch, grade 8

20шт.

4

492-11075

LOCK WASHER,3/4"

3/4"

20шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

16шт.

6

142295A1

BUSHING

- Tension, 1 inch ID

2шт.

7

175929A1

HOOK

LINK ASSEMBLY - flex mounting, 20 inch, rear, Serial Range: frame-attachment

2шт.

8

142296A1

PIN

- flex, Serial Range: link-frame

1шт.

9

392181R1

SPLIT PIN/SAFETY PIN,11.13mm OD

PIN - klik

1шт.

10

142029A1

PIN

- quick latch

2шт.

11

136-164

COTTER PIN,Int, 5/16" x .120"

PIN - cotter, hair, 5/16 x 2-25/32 inch

2шт.

16

142024A1

PIN

- transport arm

2шт.

17

38-12440

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, LOCK, 3/8" x 2 1/2", Slotted

2шт.

18

142062A1

SUPPORT

BRACKET - storage depth collar

1шт.

19

142372A1

U-BOLT

- 3/8 inch NC, 7 x 8 inch, Serial Range: bracket-frame

1шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

234981A1

SUPPORT

- stand, rear frame

2шт.

23

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

24

425-1010

NUT,5/8"-11, G5

4шт.

25

229343A1

TUBE

STAND - parking support

2шт.

26

439-1856

HEADED PIN,1/2" x 3 1/2"

PIN - headed, 1/2 x 3-1/2 inch, grade 2

2шт.

27

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

2шт.

28

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

If looking for pin that is 1.25 dia X 8.75" long with holes drilled throught it on each end the part number is 180496A1. CAM (db) 3-16-99

1шт.
