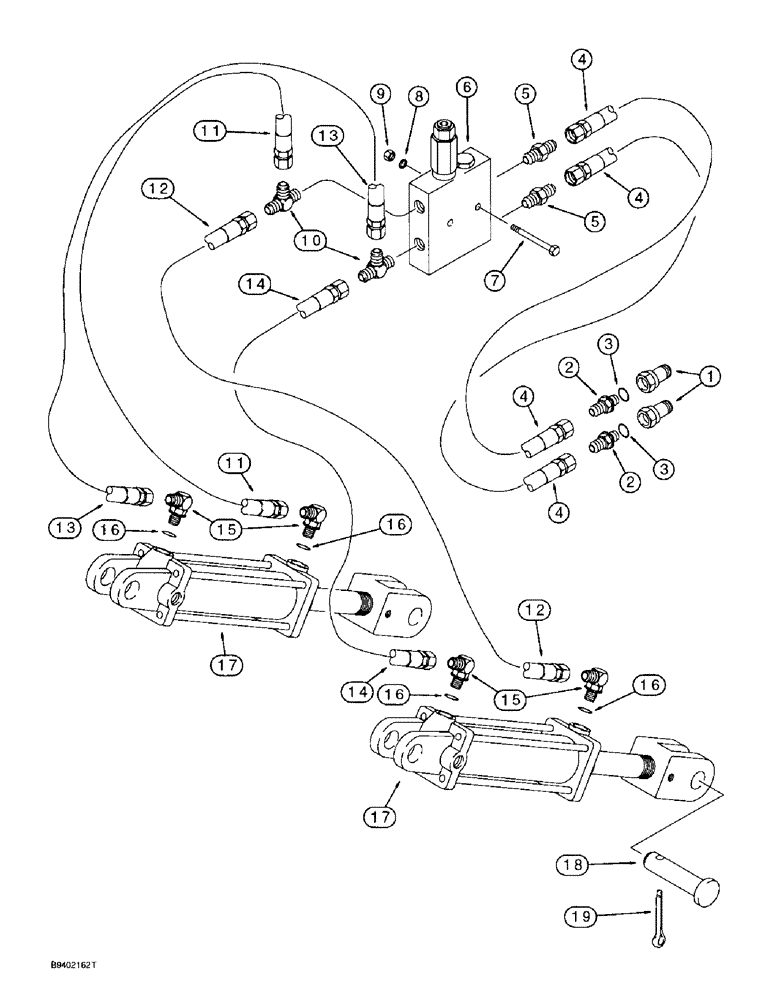

Запчасти Case IH 6100 (8-02) - UNDERSLUNG HITCH CYLINDER HYDRAULIC SYSTEM, WITH PIPE THREAD FITTINGS AT PILOT CHECK VALVE (08) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

2шт.

2

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

1279526C1

HYDRAULIC HOSE,6.35 mm ID x 2285.00 mm

- Tractor to check valve 6.35 mm ID x 2285.00 mm

2шт.

5

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight, 9/16-18 flare x 1/4 inch PT

2шт.

6

142398A1

VALVE

- dual pilot check with relief, component parts not serviced separately, see page 9-3, item 9 for mounting bracket

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

492-11038

LOCK WASHER,3/8"

2шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

- 9/16-18 flare branch x flare x 1/4 inch PT

2шт.

11

1254576C2

HOSE ASSY.

HOSE - 1092 mm (43 inch) long, tee to rod end of left-hand underslung hitch cylinder

1шт.

12

A51522

HYDRAULIC HOSE

HOSE - 610 mm (24 inch) long, tee to rod end of right-hand underslung hitch cylinder, replaces 1254527C2 hose

1шт.

13

1284278C1

HYDRAULIC HOSE

HOSE - 1041 mm (41 inch) long, tee to closed end of left-hand underslung hitch cylinder, replaces 196938C1 hose

1шт.

14

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

Tee to closed end of RH underslung hitch cylinder 0.25" ID x 33.00"

1шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

140281A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 64 (2-1/2) ID x 203 mm (8 inch) stroke, underslung hitch, parts list page 8-11

2шт.

18

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

PIN - clevis, 1 x 3-1/4 inch, hardened

4шт.

ref #18 (P/N 427-16325) SHOULD USE A 5/32" COTTER PIN PER HARDWARE SPECS. BA-CAM. 11JUNE, 1998.

1шт.

19

432-1228

COTTER PIN,3/16" x 1 3/4"

3/16" x 1 3/4"

4шт.
