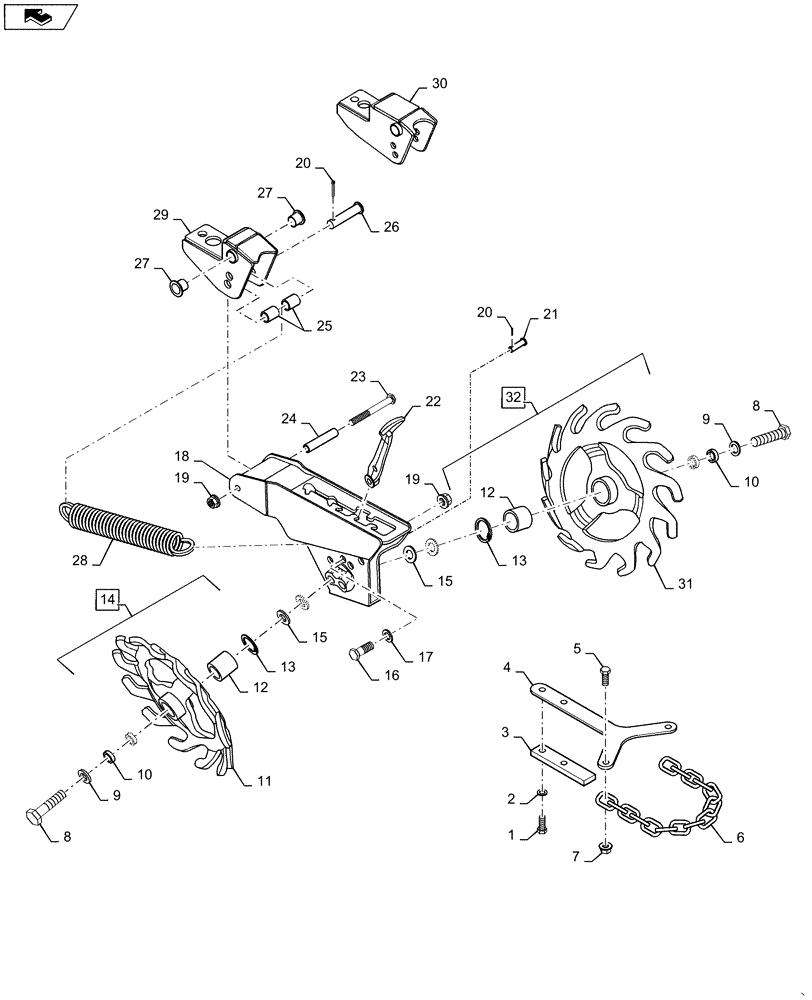

Запчасти Case IH 4025 (77.105.AB[06]) - PRESS WHEEL ASSEMBLY, WITH SPIDER WHEELS (77) - SEEDING/PLANTING

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

2

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

3

73359250

PLATE

DRAG CHAIN BACKUP

1шт.

4

73357655

MOUNT

PLANTER DRAG CHAIN

1шт.

5

9637916

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

1шт.

6

73358231

CHAIN

TWIST LINK DRAG

1шт.

7

86637767

FLANGE NUT

1шт.

8

9827853

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 5

2шт.

9

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

10

73357653

SPACER

4шт.

11

73357647

WHEEL ASSY

LEFT HAND 45 DEG TOOTH CLOSING WHEEL

1шт.

12

324461A1

BALL BEARING

2шт.

13

13398976

SNAP RING,M40, Int

2шт.

14

73357649

WHEEL ASSY

LEFT HAND 45 DEG TOOTH WHEEL, Incl 11 - 13

1шт.

15

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

4шт.

16

9707516

BOLT,1/2"-13 x 1-3/4", Cl 5

1шт.

17

73358623

WASHER

1шт.

18

73359127

SUPPORT

1шт.

19

73358490

NUT

2шт.

20

80755

COTTER PIN,1/8" OD x 1" L

2шт.

21

73358850

PIN

1шт.

22

73357953

HANDLE

PRESS WHEEL SPRING ADJUSTMENT

1шт.

23

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

24

73357160

TUBE

PRESS WHEEL PIVOT MOUNT

1шт.

25

73357159

BUSHING

SPRING ALIGNMENT

2шт.

26

84292043

HEADED PIN,15.88mm OD x 82.55mm L

1шт.

27

73358011

BUSHING

PARALLEL ARM PIVOT

2шт.

28

73357855

SPRING

1шт.

29

73357162

MOUNT

1шт.

30

73357161

MOUNT

1шт.

31

73357648

WHEEL ASSY

RIGHT HAND 45 DEG TOOTH WHEEL

1шт.

32

73357650

WHEEL ASSY

RIGHT HAND 45 DEG TOOTH CLOSING WHEEL, Incl 12 - 13, 31

1шт.
