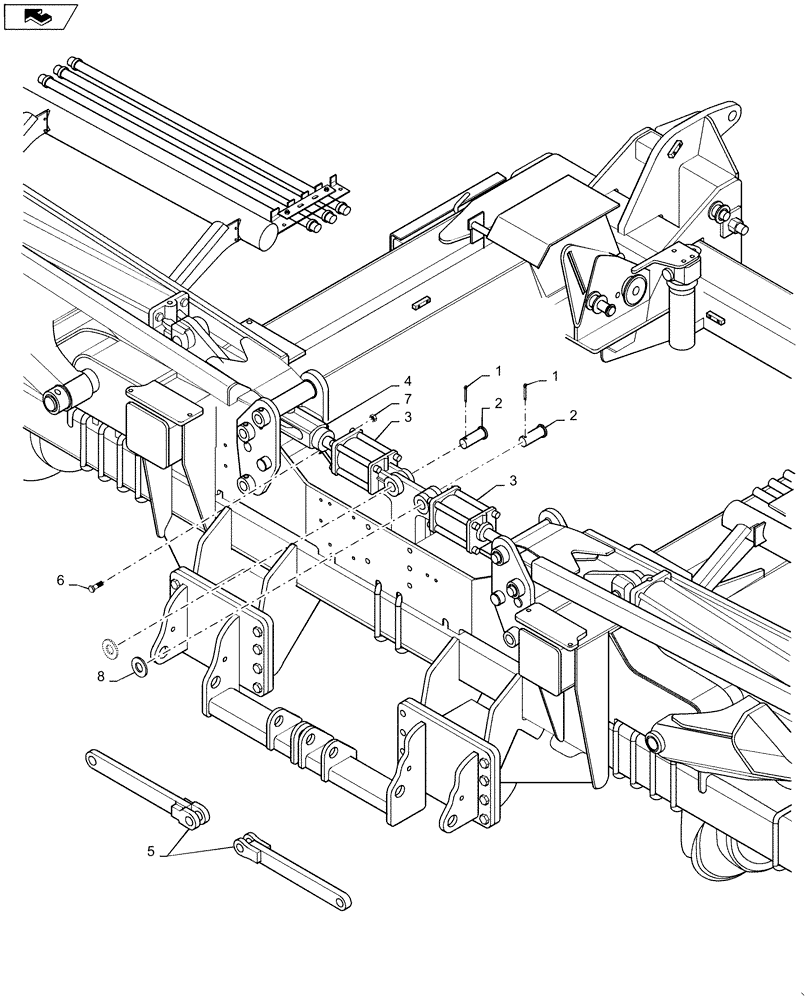

Запчасти Case IH 4025 (39.100.AB[07]) - HYDRAULIC SYSTEM, DOWN PRESSURE TO FRAME (39) - FRAMES AND BALLASTING

1

86523852

COTTER PIN

2шт.

2

73358515

CLEVIS PIN

2шт.

3

73357920

HYDRAULIC CYLINDER

See Fig. 35.100.BI (05)

2шт.

4

73358906

CLEVIS

1шт.

5

73357285

LUG

LUG WELDMENT

2шт.

6

88436

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

86625065

1шт.

8

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.
