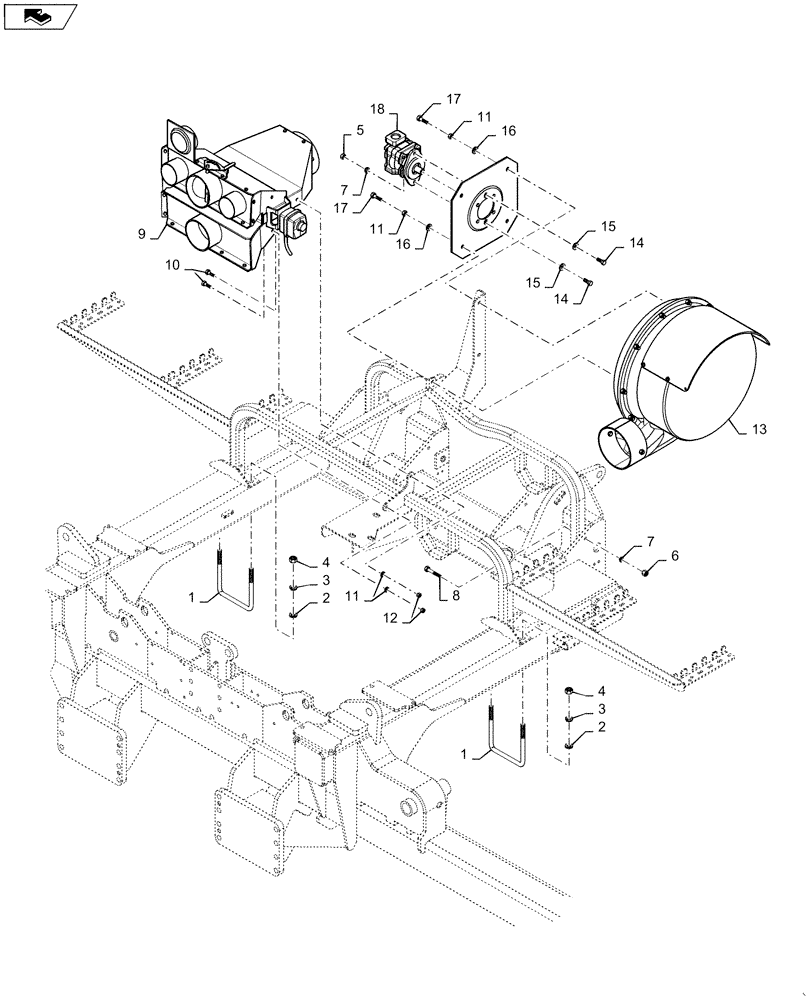

Запчасти Case IH 4025 (39.100.AB[06]) - HYDRAULIC FAN MOUNTING (39) - FRAMES AND BALLASTING

1

73358608

U-BOLT

2шт.

2

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

2шт.

3

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

4

86729275

LOCK WASHER,5/8 0.634 CST ZND

2шт.

5

80084952

NUT

1шт.

6

9803187

NUT,1/2"-13, G8

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

8

88043

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 5

1шт.

9

73358872

VALVE

1шт.

10

88434

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

12

280136

NUT,3/8"-16, G8

1шт.

13

73358222

FAN

HYDRAULIC FAN KIT WITH SCREEN

1шт.

14

88338

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

2шт.

15

87364

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

2шт.

16

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

17

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

18

73357928

HYDRAULIC MOTOR

1шт.
